GENMAC QUEEN G80IS-E3 THREE-PHASE 80 KVA DIESEL - MOTOR IVECO STAGE 3A

GENMAC QUEEN G80IS-E3 80 KVA DIESEL
search
  • GENMAC QUEEN G80IS-E3 80 KVA DIESEL
  • GENMAC QUEEN G80IS-E3 80 KVA DIESEL
GENMAC
QUEEN G80IS-E3-MOTORE IVECO STAGE 3A-E3-AVR
New product

Phase Type: Single-phase / Three-phase
Maximum power LTP: 88 KVA
Maximum power LTP: 70 KW
Continuous power PRP: 80 KVA
Continuous power PRP: 64 KW
Fuel: Diesel
Frequency: 50 Hz
Voltage: 230 / 400 V
Engine: Fpt-Iveco NEF45TE1PV
Engine rpm: 1500 rpm
Cooling: Water
Length: 2950 mm
Width: 1056 mm
Height: 1900 mm
Weight: 1500 Kg
Super silenced
AVR

Technical features
Phase
Single phase / Three phase
Maximum power three phase (KW)
70
Continuous power three phase (KW)
64
Maximum power three phase (KVA)
88
Continuous power three phase (KVA)
80
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Emissions Regulations
Stage 3A
Engine rpm (rpm)
1500
Speed governor
Electronic
Engine capacity (cm³)
4500
Number cylinders
4
Oil capacity (L)
12.8
Cooling
Water
Alternator
Mecc Alte
Width (mm)
1056
Height (mm)
1900
Dry weight (Kg)
1500
AVR
Yes
Silenced
Yes
Super silenced
Yes
Product type
Generator
ATS Switch device
No
Voltage regulator
AVR
Engine manufacturer
FPT Iveco
Details

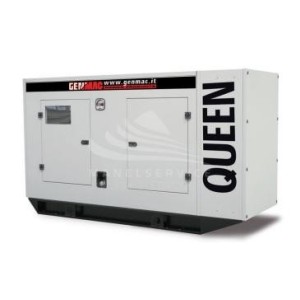

GENMAC QUEEN G80IS-E3

The GENMAC QUEEN G80IS-E3 is a 80 KVA super-silenced single-phase/three-phase diesel generator with Mecc Alte alternator and AVR voltage regulator.
Thanks to its diesel fuel supply, the GENMAC QUEEN G80IS-E3 can only consume 1.88 m³/h at full load and has a low environmental impact, making it one of the best in its class.
The long life and reliability of the GENMAC QUEEN G80IS-E3 is due to a special control procedure during the various stages of production.
The GENMAC QUEEN G80IS-E3 is suitable for applications in different contexts such as: hospitals, industries, shopping malls, hotels, airports, banks, universities, stadiums, offices, etc.

The Stage 3A engine allows the use of the generator set also for mobile use, for example for roadworks and rental services.

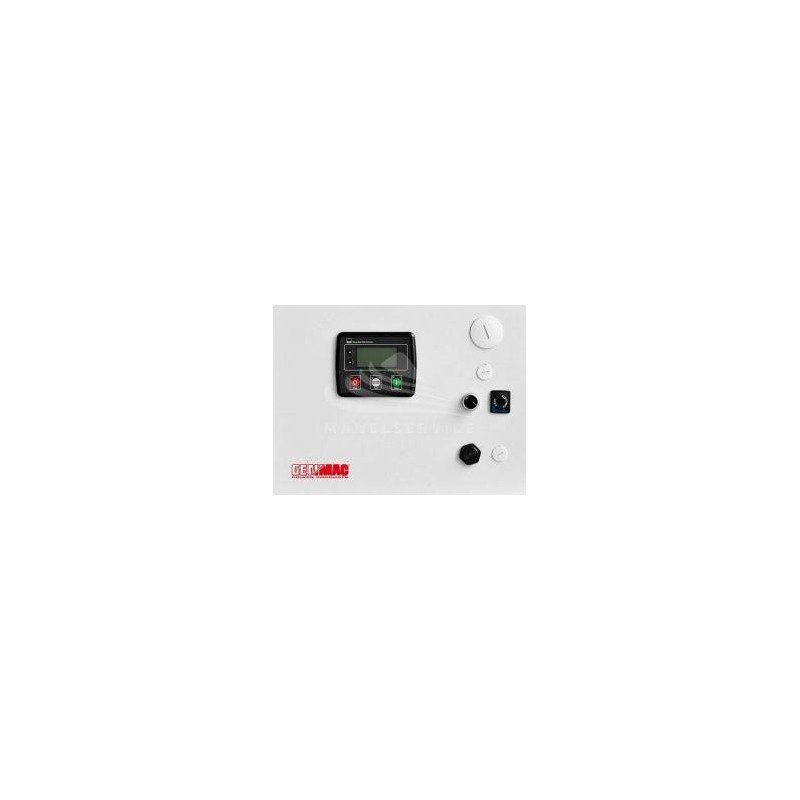

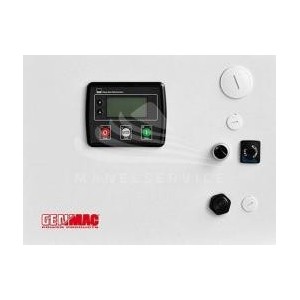

Control panel features

QT2A-4520

Self-standing tower with IP65 metal box
Circuit breaker
AMF controller DSE4520
- Voltmeter, Frequencymeter, Ammeter
- Generator power (kW, kV Ar, kV A & pf) monitoring
- Hour meter
- Fuel level meter
- Overload (kW & kV Ar) protection
- Low oil pressure protection
- High coolant temperature protection
- Low fuel level protection
- Battery charger alternator fault
- Rpm protection
Emergency stop button
Audible alarm
Terminal board for ATS connection
Can Bus reading Port (if standard on the engine)
Battery charger
On/off switch

Images and technical data are not binding.

List price
32.133,89 € tax incl.
26.339,25 € tax excl.
Discounted Price
17.471,56 € tax incl.
14.320,95 € tax excl.
Voltage Regulator
Ask for availability
Add to wishlist
Download PDF
Ask a question
