GENMAC DYNAMIC G20PS-E3 THREE-PHASE 20 KVA DIESEL - MOTOR PERKINS STAGE 3A
      GENMAC DYNAMIC G20PS-E3 THREE-PHASE 20 KVA DIESEL - MOTOR PERKINS STAGE 3A
      GENMAC DYNAMIC G20PS-E3 THREE-PHASE 20 KVA DIESEL - MOTOR PERKINS STAGE 3A

      GENMAC DYNAMIC G20PS-E3 THREE-PHASE 20 KVA DIESEL - MOTOR PERKINS STAGE 3A

      DYNAMIC G20PS-E3 AVR

      Phase Type: Single-phase / Three-phase
      Maximum power LTP: 22 KVA
      Maximum power LTP: 18 KW
      Continuous power PRP: 20 KVA
      Continuous power PRP: 16 KW
      Fuel: Diesel
      Frequency: 50 Hz
      Voltage: 230 / 400 V
      Engine: Perkins 404D-22G
      Engine rpm: 1500 rpm
      Cooling: Water
      Length: 1900 mm
      Width: 800 mm
      Height: 1230 mm
      Weight: 726 Kg
      Super silenced
      AVR

      List price
      16,941.23 € tax incl.
      13,886.25 € tax excl.
      Discounted Price
      18,351.61 € tax incl.
      15,042.30 € tax excl.
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      GENMAC
      DYNAMIC G20PS-E3 AVR

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power three phase (KW)
      18
      Continuous power three phase (KW)
      16
      Maximum power three phase (KVA)
      22
      Continuous power three phase (KVA)
      20
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Engine
      PERKINS 404D-22G, naturally aspirated
      Emissions Regulations
      Stage 3A
      Engine rpm (rpm)
      1500
      Speed governor
      Electronic
      Engine capacity (cm³)
      2210
      Number cylinders
      4
      Oil capacity (L)
      10.6
      Cooling
      Water
      Alternator
      Synchronous, self-excited
      Length (mm)
      1900
      Width (mm)
      800
      Height (mm)
      1230
      Dry weight (Kg)
      1500
      AVR
      Yes
      Silenced
      Yes
      Super silenced
      Yes
      Product type
      Generator
      ATS Switch device
      No
      Voltage regulator
      AVR
      Engine manufacturer
      Perkins

      Specific References

      New

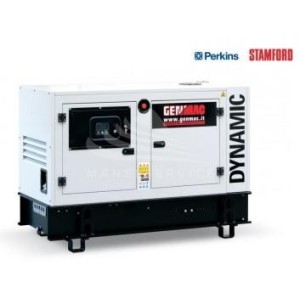

      GENMAC DYAMIC G20PS-E3

      The GENMAC DYAMIC G20PS-E3 is a 20 KVA super-silenced single-phase/three-phase diesel generator with Mecc Alte alternator and AVR voltage regulator.
      Thanks to its diesel fuel supply, the GENMAC DYAMIC G20PS-E3 can only consume 0.53 m³/h at full load and has a low environmental impact, making it one of the best in its class.
      The long life and reliability of the GENMAC DYAMIC G20PS-E3 is due to a special control procedure during the various stages of production.
      The GENMAC DYAMIC G20PS-E3 is suitable for applications in different contexts such as: hospitals, industries, shopping malls, hotels, airports, banks, universities, stadiums, offices, etc.

      The Stage 3A engine allows the use of the generator set also for mobile use, for example for roadworks and rental services.

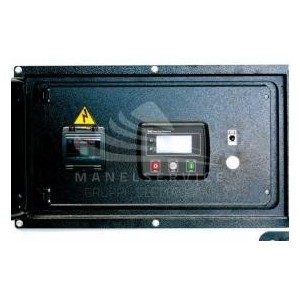

      Control panel features

      QFIA-4520

      Protection cover
      Circuit breaker
      AMF controller DSE4520
      - Voltmeter, Frequencymeter, Ammeter
      - Generator power (kW, kV Ar, kV A & pf) monitoring
      - Hour meter
      - Fuel level meter
      - Overload (kW & kV Ar) protection
      - Low oil pressure protection
      - High coolant temperature protection
      - Low fuel level protection
      - Battery charger alternator fault
      - Rpm protection
      Emergency stop button
      Terminal board for ATS connection
      Battery charger
      On/off switch

      Images and technical data are not binding.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
