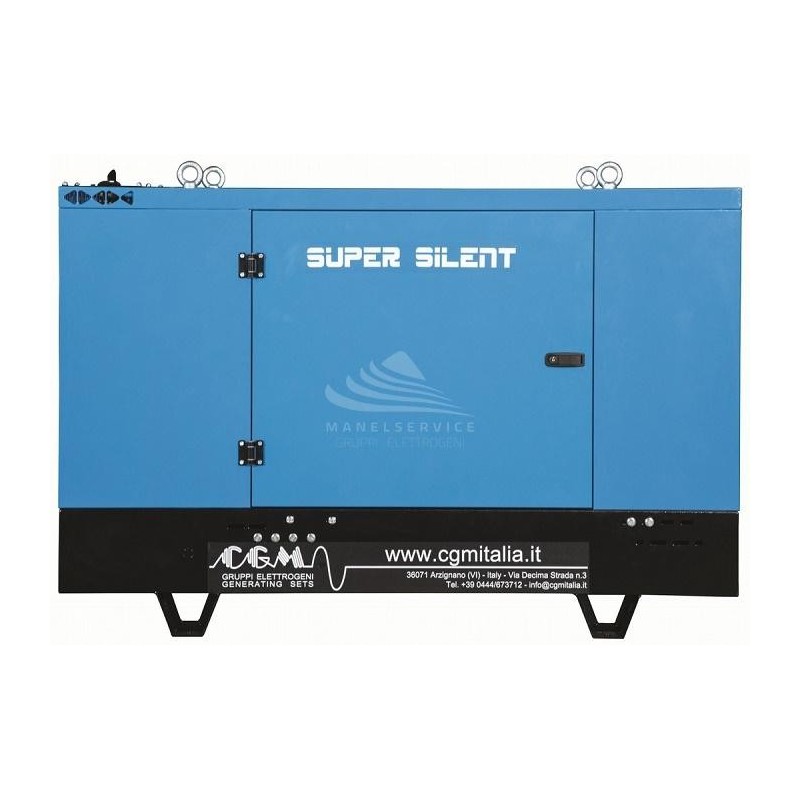

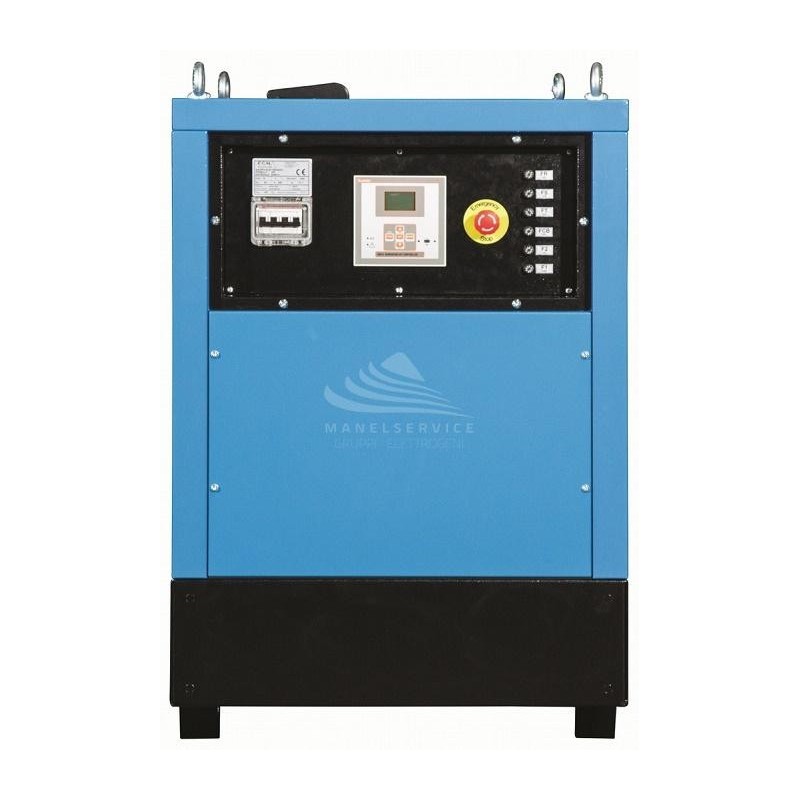

CGM 30DW - BOXED WITH AUTOMATIC CONTROL UNIT

Name: CGM 30DW - BOXED WITH AUTOMATIC CONTROL UNIT
Brand: CGM
SKU: CGM 30DW COFANATO AUTOMATICA /
Price: 7540.82 EUR
Availability: InStock

Reference CGM 30DW COFANATO AUTOMATICA /

OUT OF PRODUCTION

Maximum three-phase power: 26.4 KW
Continuous three-phase power: 24 KW
Maximum three-phase power: 33 KVA
Continuous three-phase power: 30 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Lombardini LDW 2204
Start-up: Electric
Consumption: 8 L/h at 75% load
Length: 1600 mm
Width: 700 mm
Height: 1050 mm
Weight: 500 kg
Compound

List price

10,980.00 € tax incl.

9,000.00 € tax excl.

Discounted Price

7,540.82 € tax incl.

6,181.00 € tax excl.

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference CGM 30DW COFANATO AUTOMATICA /

Data sheet

Phase: Single phase / Three phase
Maximum power three phase (KW): 26.4
Continuous power three phase (KW): 24
Maximum power three phase (KVA): 33
Continuous power three phase (KVA): 30
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: Terminal box
Engine: Lombardini LDW2204
Emissions Regulations: Stationary Use
Engine rpm (rpm): 3000
Speed governor: Electronic
Starting system: Electric
Engine capacity (cm³): 2199
Number cylinders: 4
Cylinders' position: In line
Cooling: Water
Alternator: Linz, with brushes
Poles: 2
Bore x stroke (mm): 88 x 90.4
Fuel tank capacity (L): 50
Consumption (L/h): 8
Running time (h): 6.3
Acoustic pressure: 70 dB(A) at 7 m
Length (mm): 1600
Width (mm): 700
Height (mm): 1050
Dry weight (Kg): 500
Silenced: Yes
Super silenced: Yes
ATS Switch device: Optional
Voltage regulator: Compound
Engine manufacturer: Lombardini

Specific References

Condition New

These generating sets are equipped with Lombardini/Kohler diesel engines with electric start (with key and battery).

Alternator with 400 Volt Three-phase voltage with accessible neutral or 230 Volt Single-phase – 50 Hz, mounted on base frame. Manual control electrical panel fixed on the unit.

Main applications: isolated houses, campsites, alpine refuges, small construction sites, restaurants, farms, craft industries, sports centers, service stations, etc.

The 3000 rpm sets are suitable for emergency use only and not for continuous operation. Use is not recommended for more than 6 consecutive hours and more than 500 hours per year.
