      EUW30 SM

      Phase type: Three-phase
      Maximum three-phase power (kW): 26.4
      Continuous three-phase power (kW): 24
      Maximum three-phase power (kVA): 33
      Continuous three-phase power (kVA): 30
      Fuel: Diesel
      Frequency (Hz): 50
      Voltage (V): 400
      Engine: BAUDOUIN 4M06G6D0/S
      Engine speed (rpm): 1500
      Speed ​​governor: Electronic
      Displacement: 2.3 L
      Number of cylinders: 4
      Cylinder arrangement: In line
      Oil capacity: 11.5 L
      Number of poles: 4
      Fuel tank capacity: 90 L
      Consumption: 7.6 L/h at 100% load
      Autonomy: 15.8 h
      Sound pressure: 70 dBA (0/+3 dB)
      Length: 2120 mm
      Width: 960 mm
      Height: 1285 mm
      Dry weight: 880 kg
      Silenced: Yes
      Super silenced: Yes
      Protection rating: IP23
      Voltage regulator: AVR




      List price
      24,156.00 € tax incl.
      19,800.00 € tax excl.
      Discounted Price
      14,253.26 € tax incl.
      11,683.00 € tax excl.
      Shipping from 375.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      TESSARI
      EUW30 SM

      Data sheet

      Phase
      Three phase
      Maximum power three phase (KW)
      26.4
      Continuous power three phase (KW)
      24
      Maximum power three phase (KVA)
      33
      Continuous power three phase (KVA)
      30
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      400
      Engine
      BAUDOUIN 4M06G6D0/S
      Engine rpm (rpm)
      1500
      Speed governor
      Electronic
      Number cylinders
      4
      Cylinders' position
      In line
      Oil capacity (L)
      11.5
      Poles
      4
      Protection degree
      IP23
      Fuel tank capacity (L)
      90
      Consumption (L/h)
      7.6 at 100% load
      Running time (h)
      15.8
      Acoustic pressure
      70 dbA (0/+3dB)
      Length (mm)
      2120
      Width (mm)
      960
      Height (mm)
      1285
      Dry weight (Kg)
      880
      Silenced
      Yes
      Super silenced
      Yes
      Voltage regulator
      AVR
      displacement
      2,3

      Specific References

      New

       TESSARI  EUW30 Silenced Generator Automatic Control Unit 33 KVA

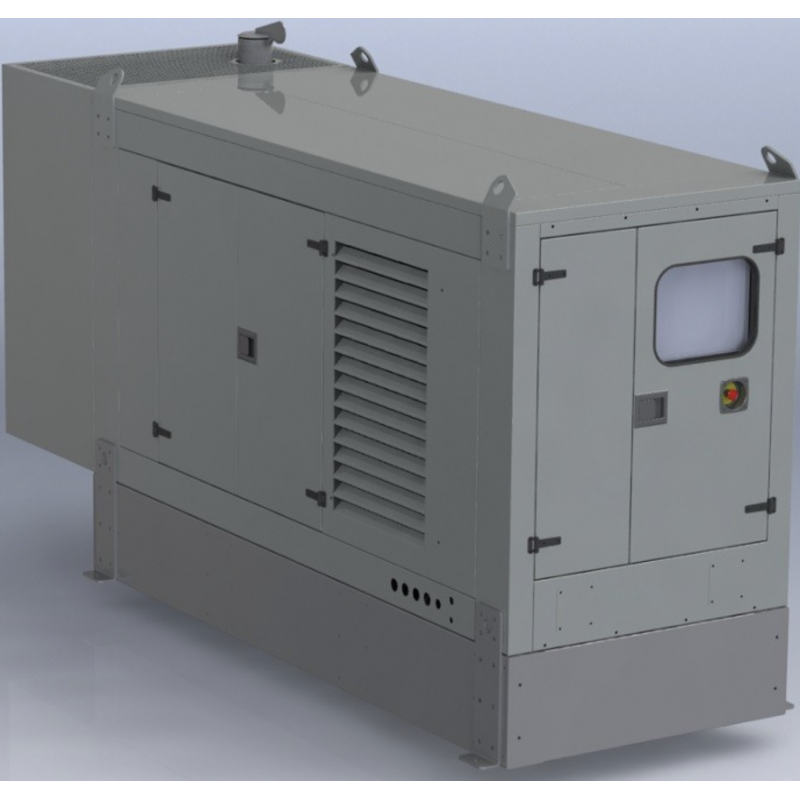

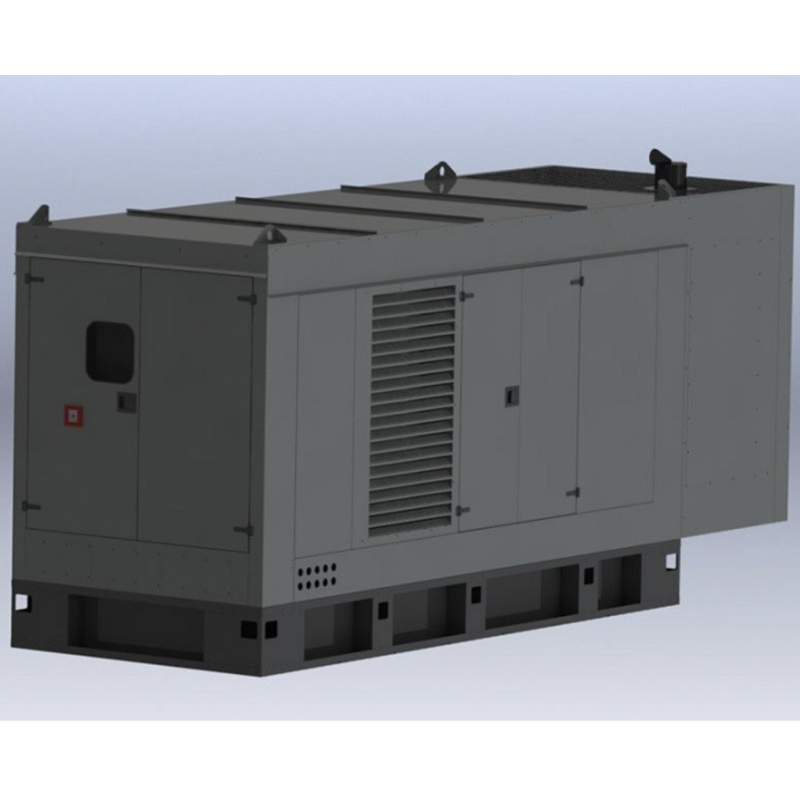

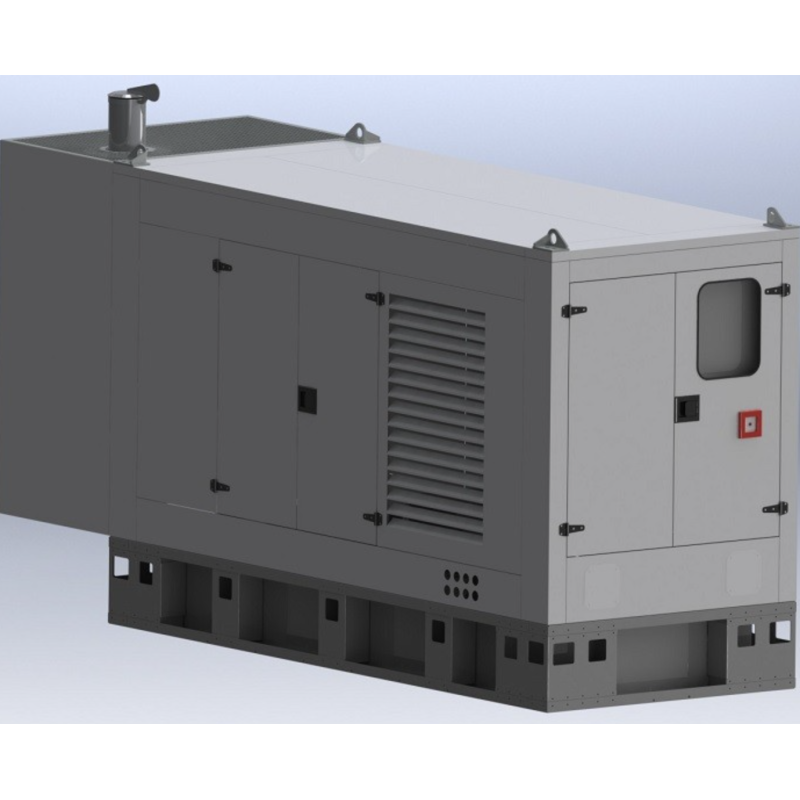

      The TESSARI  EUW30 is a high-performance, silenced three-phase generator, ideal for industrial, construction or emergency applications. Equipped with an automatic control unit and powered by a BAUDOUIN 4M06G6D0/S engine, it guarantees a maximum power of 33 kVA (26.4 kW) and a continuous power of 30 kVA (24 kW) at 1500 rpm.

      It runs on diesel and is equipped with an electronic speed regulator and AVR voltage regulator, ensuring maximum electrical stability even under variable load conditions. The 4-cylinder in-line engine, with 2.3-litre displacement, offers reliable performance and low fuel consumption: just 7.6 L/h at 100% load, with up to 15.8 hours, thanks to the 90-litre tank.

      The generator is silenced and super silenced, with sound pressure of just 70 dB(A), ideal for environments where noise is a critical factor. The compact and robust structure (2120x960x1285 mm, dry weight 880 kg) is protected by an IP23 protection degree, suitable for use in outdoor environments.

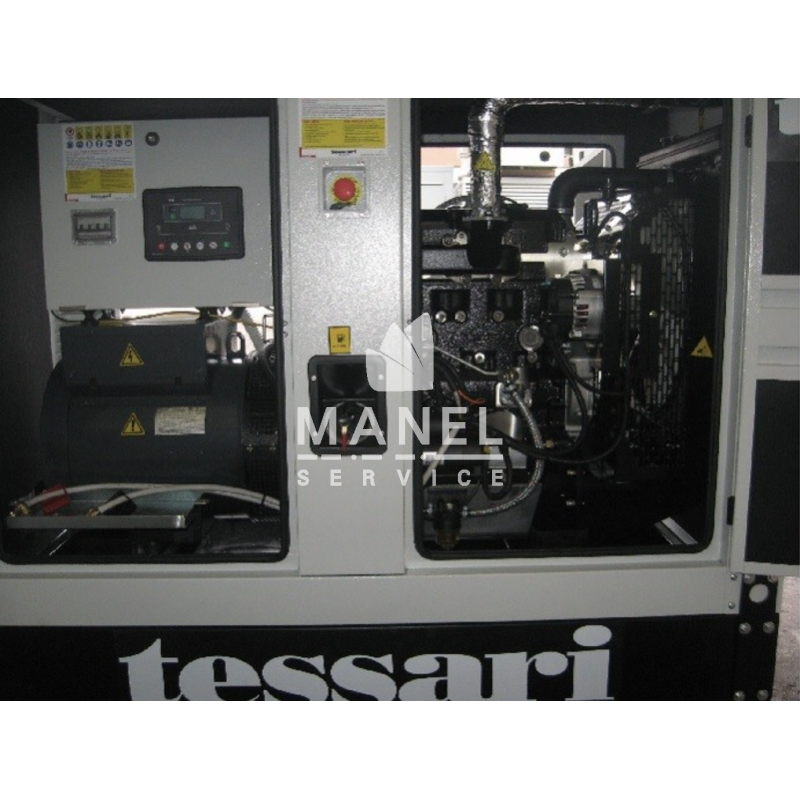

      Standard equipment:

      Engine and alternator with single-bearing coupling on damping anti-vibration mounts

      Base in powder-coated sheet steel RAL 7016

      Integrated fuel tank complete with

      cap filling and minimum level contact

      Leak containment basin with drainage hole as per Ministerial Decree 13/7/11

      Super-silenced casing in sheet steel

      powder-coated RAL 7042

      Sound-absorbing material cl. B-s2,d0 with high

      noise absorption characteristics

      Large access doors to the engine and the electric panel

      with key locks

      Resettable emergency stop button

      Exhaust silencer

      Liquids (oil and antifreeze -26°C)

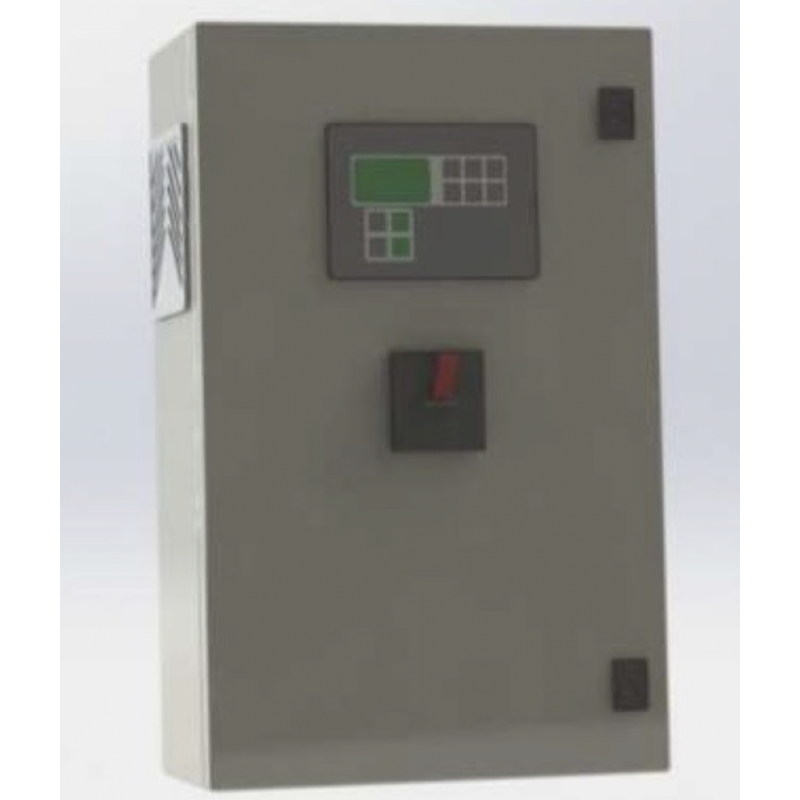

      Electrical command and control panel

      Engine pre-heating system

      Lead-acid starter battery

      Lifting hooks

      Technical Features:

      Phase type: Three-phase
      Maximum three-phase power (kW): 26.4
      Continuous three-phase power (kW): 24
      Maximum three-phase power (kVA): 33
      Continuous three-phase power (kVA): 30
      Fuel: Diesel
      Frequency (Hz): 50
      Voltage (V): 400
      Engine: BAUDOUIN 4M06G6D0/S
      Engine revolutions (rpm): 1500
      Speed ​​governor: Electronic
      Displacement: 2.3 L
      Number of cylinders: 4
      Cylinder arrangement: In line
      Oil capacity: 11.5 L
      Number of poles: 4
      Fuel tank capacity: 90 L
      Consumption: 7.6 L/h at 100% load
      Autonomy: 15.8 h
      Sound pressure: 70 dBA (0/+3 dB)
      Length: 2120 mm
      Width: 960 mm
      Height: 1285 mm
      Dry weight: 880 kg
      silenced: Yes
      Super sulenced: Yes
      Protection degree: IP23
      Voltage regulator: AVR
