MASE VOYAGER 15 DT GENERATOR 14KVA VEHICLE SINGLE-PHASE / THREE-PHASE AVR STAGEV

Brand: MASE

Reference: 002747

Condition: New product

Phase type: Single-phase / Three-phase
Maximum single-phase power: 4.6 KVA / 3.68 KW
Continuous single-phase power: 4.2 KVA / 3.36 KW
Maximum three-phase power: 14 KVA / 11.2 KW
Three-phase Continuous Power: 12.75 KVA / 10.2 KW
Fuel: Diesel
Voltage: 230 - 400 V
Frequency: 50 Hz
Engine: Yanmar 3TNV88
Mechanical power : 18.1 Hp
Number of cylinders: 3
Displacement: 1642 cc
Engine rpm: 1500 rpm
Emissions standard: StageV
Consumption: 2.7 l / h at 75% of the load
Acoustic Pressure: 62 dBA @ 7 m
Voltage regulator: AVR

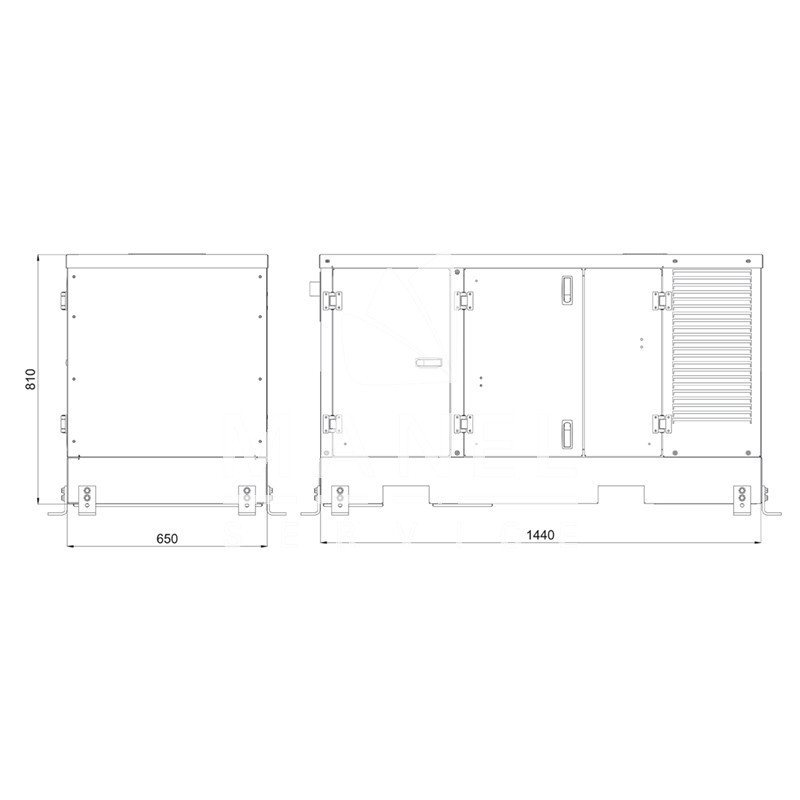

Length: 1440 mm
Width: 650 mm
Height: 810 mm
Weight: 485 Kg

Technical features

Phase: Single phase / Three phase
Maximum power single phase (KW): 3.68
Continuous power single phase (KW): 3.3
Maximum power single phase (KVA): 4.6
Continuous power single phase (KVA): 4.2
Maximum power three phase (KW): 11.2
Continuous power three phase (KW): 10.16
Maximum power three phase (KVA): 14
Continuous power three phase (KVA): 12.7
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: Yanmar 3TNV88, 4 stroke naturally aspirated
Emissions Regulations: Stage 5
Engine rpm (rpm): 1500
Starting system: Electric
Engine capacity (cm³): 1642
Number cylinders: 3
Oil capacity (L): 4.8
Cooling: Water
Alternator: Sincrono, autoeccitato, autoregolato, senza spazzole
Poles: 4
Consumption (L/h): 2.7 at 75% of the load
Acoustic pressure: 62 dB(A) at 7 m
Length (mm): 1440
Width (mm): 650
Height (mm): 810
Dry weight (Kg): 485
Silenced: Yes
Super silenced: Yes
Voltage regulator: AVR
Engine manufacturer: Yanmar

Details

MASE VOYAGER 15 DT GENERATOR 14KVA VEHICLE SINGLE-PHASE / THREE-PHASE AVR STAGEV

MASE VOYAGER 15 DM single / three-phase vehicle generator with diesel-powered Yanmar 3TNV88 StageV engine delivers a power of 14KVA, complete with AVR voltage regulator .

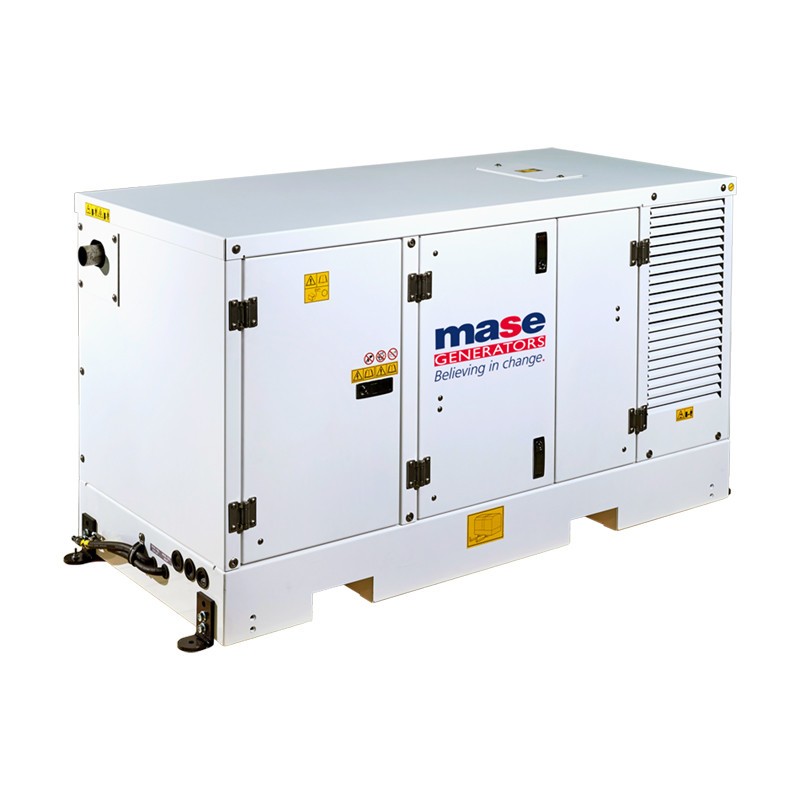

The MASE VOYAGER 15 DM vehicle generator is equipped with a soundproofing cabin that makes it super silenced, with a sound emission of 62dB (A) at a distance of 7 m. The painted aluminum soundproof booth is extremely light and highly resistant to external agents.

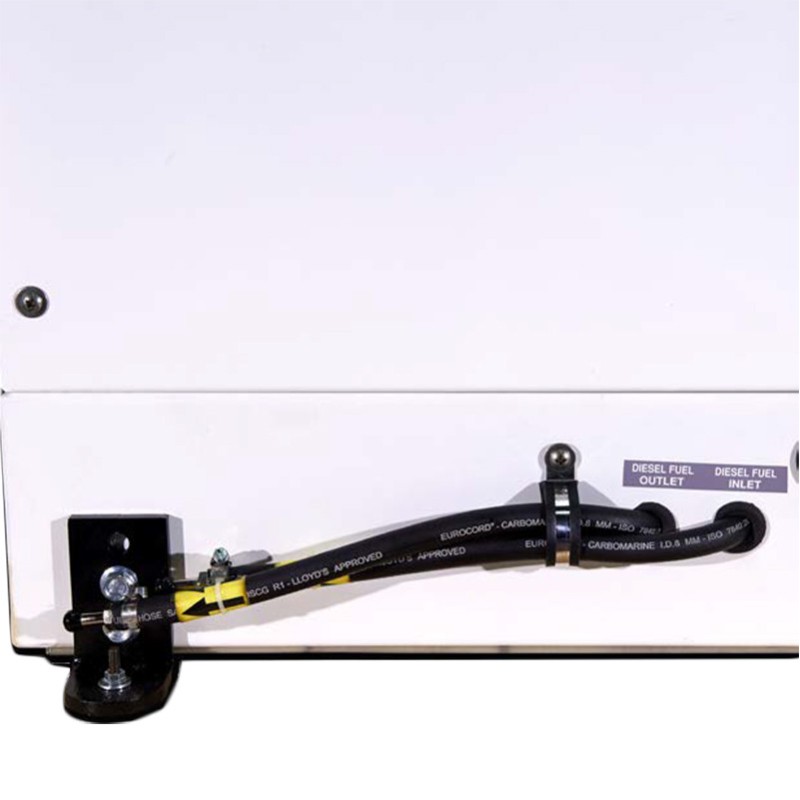

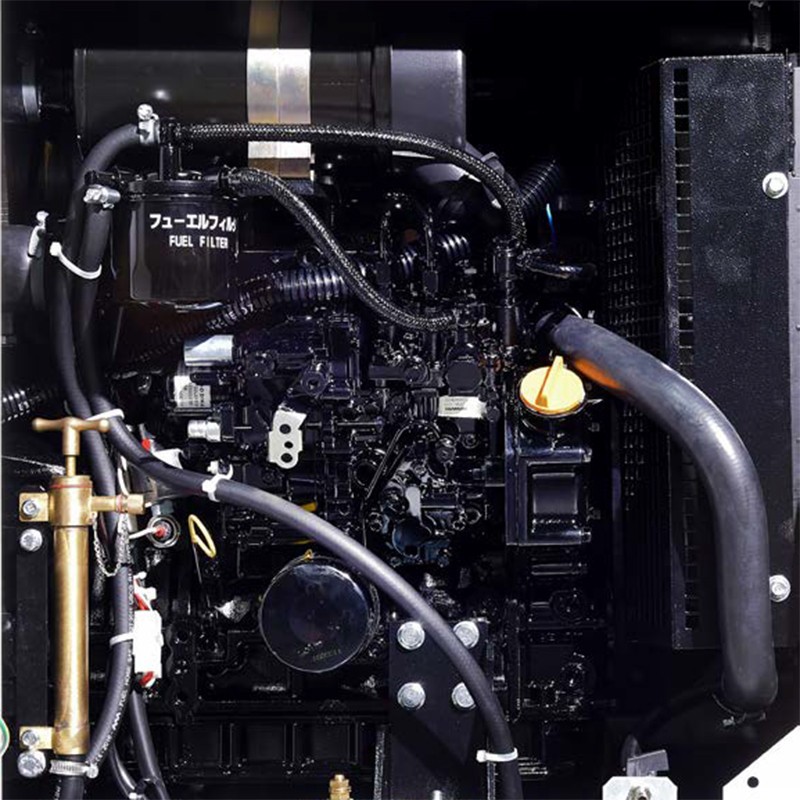

The soundproof cabin allows easy access for maintenance of the fuel and lubrication systems, the water pump, the air filter, the oil filter and the fuel.

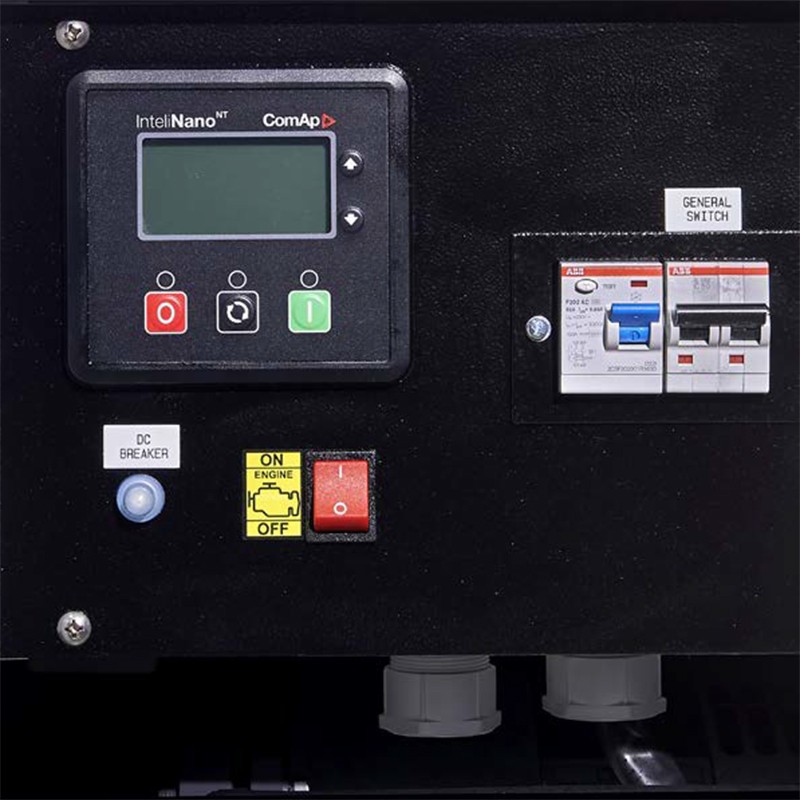

MASE VOYAGER 15 DM is equipped with a ComAp InteliNano control unit that allows you to control and verify all the main functions of the unit and, if necessary, will report any failure or error in the operation of the machine.

STAGEV EMISSIONS REGULATION

The MASE VOYAGER 12 DM is equipped with a "mobile" STAGEV motorization, as required by the European Regulation 2016/1628. These new engines make it possible to exponentially reduce the emissions of particulate matter and nitrogen oxides delivered by the generator into the environment, and ensure a reduction of the environmental impact of 200% compared to standard engines.

TECHNICAL FEATURES MASE VOYAGER 15 DM:

Phase type: Single / Three-phase
Maximum singlephase power: 4.6 KVA / 3.68 KW
Continuous singlephase power: 4.2 KVA / 3.36 KW
Maximum threephase power: 14 KVA / 11.2 KW
Threephase Continuous Power: 12.75 KVA / 10.2 KW
Fuel: Diesel
Voltage: 230 - 400 V
Frequency: 50 Hz
Engine: Yanmar 3TNV88
Number of cylinders: 3
Displacement: 1642 cc
Engine rpm: 1500 rpm
Emissions standard: StageV
Consumption: 2.7 l / h at 75% of the load
Acoustic Pressure: 62 dBA @ 7 m
Voltage regulator: AVR
Length: 1440 mm
Width: 650 mm
Height: 810 mm
Weight: 485 Kg

Are you looking for a product with different technical characteristics? HERE you can find the area dedicated to MASE vehicle generators or other specialized brands.

Non-binding images and technical data.

Technical Sheet / Manuals
