Frequency [Hz] 50
Generator manufacturer Fischer Panda GmbH
Isolation class of windings H
Nominal Speed [rpm] 3000 rpm
Voltage Regulation xControl
Voltage Tolerance ±3%
Power rating factor Cos Pi 0.85
Engine Speed [rpm] 3000
Nominal Voltage in Volt 230
Nominal Performance in kW)1) 8
Nominal Performance in kVA1) 9.4
Continuous Performance in kW1) 7.2
Continuous Performance in kVA1) 8.5
Number of Phases 1
Frequency [Hz] 50
Engine Manufacturer Kubota (KU)
Engine Type Z602
No. Cylinders 2
Displacement [cm3] 599
Starter System 12V (24V Optional)
Sound Cover Type GFK (Glass fibre reinforced polyester)
Sound Insulation Material 4DS

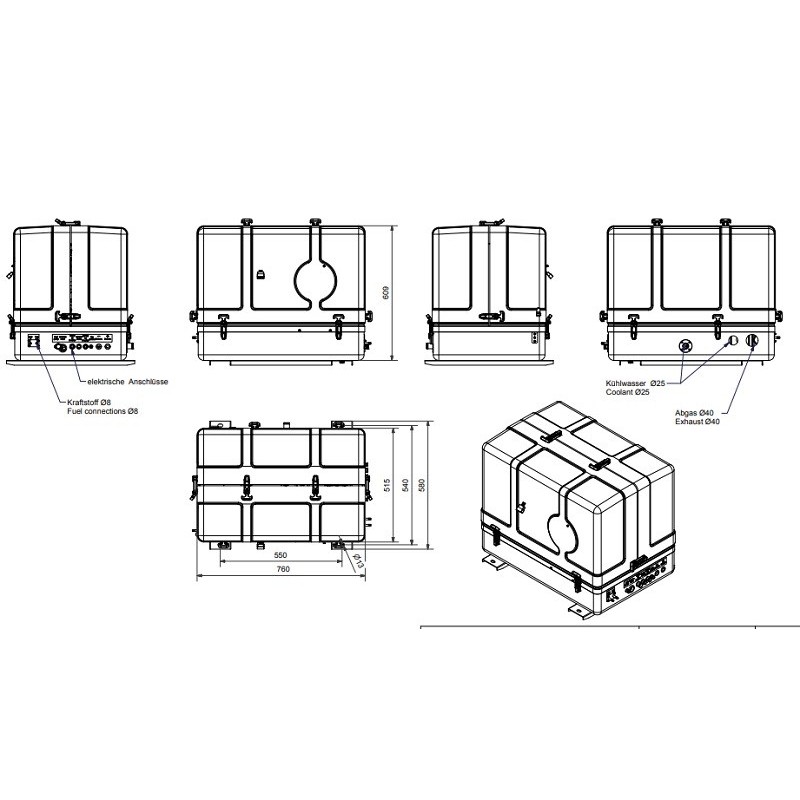

Lenght: 760 mm
Width: 580 mm
Height: 609 mm
Weight: 195 Kg
Data sheet
Specific References
Fixed speed generators. Perfect for installation within the vehicle and the ideal choice in all cases where space and length is available.
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
