CGM 15DW COFANATO AUTOMATICO
New product

OUT OF PRODUCTION

Maximum three-phase power: 13.2 KW
Continuous three-phase power: 12 KW
Maximum three-phase power: 16.5 KVA
Continuous three-phase power: 15 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Electrical protection: IP44
Motor: LOMBARDINI LDW 1003
Displacement cc: 686
Engine revolutions: 3000 rpm
Bore x stroke: 75 x 77.6
Aspiration: Natural
Speed ​​regulator: Mechanical
Number and arrangement of cylinders: 3 in line
Cooling system: Water
Starting: Electric
Alternator: Linz, with brushes
Poles: 2
Voltage regulator system: Compound
Consumption: 3.8 Lt / h at 75% of the load
Tank capacity: 50 Lt
Autonomy: 13.2 h at 75% of the load
Length: 1600 mm
Width: 700 mm
Height: 1050 mm
Weight : 350 Kg

Technical features
Phase
Single phase / Three phase
Maximum power three phase (KW)
13.2
Continuous power three phase (KW)
12
Maximum power three phase (KVA)
16.5
Continuous power three phase (KVA)
15
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine
Lombardini LDW1003
Engine rpm (rpm)
3000
Speed governor
Mechanical
Starting system
Electric
Engine capacity (cm³)
686
Number cylinders
3
Cylinders' position
In line
Cooling
Water
Alternator
With brushes
Poles
2
Protection degree
IP44
Fuel tank capacity (L)
50
Consumption (L/h)
3.8
Running time (h)
13.2
Acoustic pressure
70 dB(A) at 7 m
Length (mm)
1600
Width (mm)
700
Height (mm)
1050
Dry weight (Kg)
350
Silenced
Yes
Super silenced
Yes
ATS Switch device
Optional
Voltage regulator
Compound
Engine manufacturer
Lombardini
Details

CGM 15DW - COVERED WITH AUTOMATIC CONTROL UNIT

These generating sets are equipped with Lombardini / Kohler diesel engines with electric start (with key and battery).
Alternator with 400 Volt Three-phase with accessible neutral or 230 Volt Single-phase - 50 Hz mounted on the base frame. Electric panel for manual control fixed on the unit.
Main applications: isolated villas, campsites, mountain huts, small construction sites, restaurants, farms, artisan industries, sports centers, service stations, etc.
The groups at 3000 rpm they are suitable for non-continuous emergency use, it is not recommended to use them for more than 6 continuous hours and for more than 500 Hr / year.

Technical characteristics CGM 15DW

Maximum three-phase power: 13.2 KW
Continuous three-phase power: 12 KW
Maximum three-phase power: 16.5 KVA
Continuous three-phase power: 15 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Electrical protection: IP44
Motor: LOMBARDINI LDW 1003
Displacement cc: 686
Engine revolutions: 3000 rpm
Bore x stroke: 75 x 77.6
Aspiration: Natural
Speed ​​regulator: Mechanical
Number and arrangement of cylinders: 3 in line
Cooling system: Water
Starting: Electric
Alternator: Linz, with brushes
Poles: 2
Voltage regulator system: Compound
Consumption: 3.8 Lt / h at 75% of the load
Tank capacity: 50 Lt
Autonomy: 13.2 h at 75% of the load
Length: 1600 mm
Width: 700 mm
Height: 1050 mm
Weight : 350 Kg

Are you looking for a product with different technical characteristics? HERE you can find the full range of CGM generators and other specialized brands.

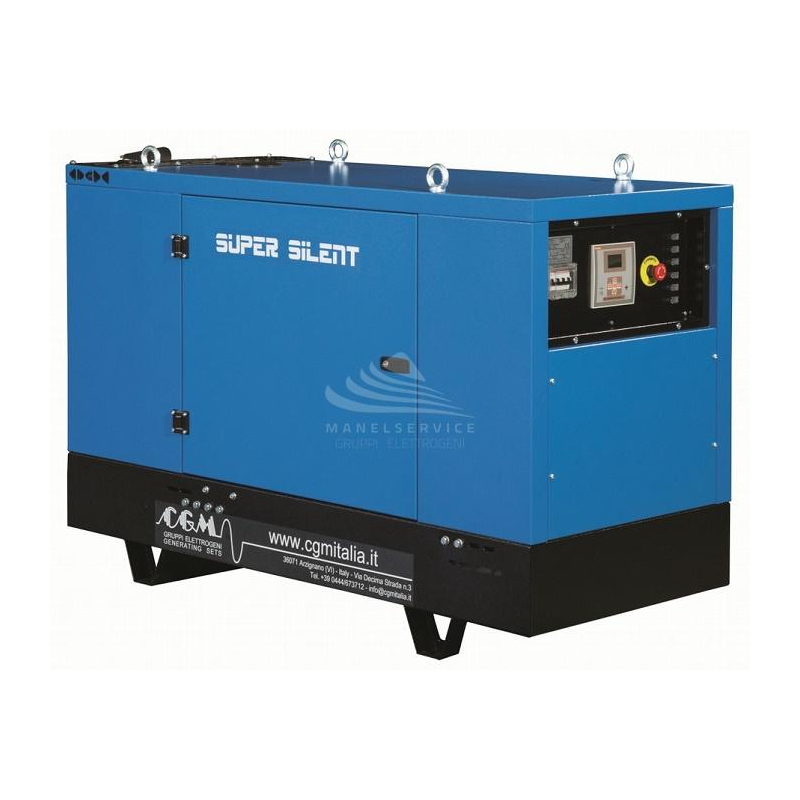

The image is purely indicative.
