MENNEKES COMBINATION OF SOCKETS IP67 AMAXX 945016

MENNEKES COMBINATION OF SOCKETS IP67 AMAXX 945016

Name: MENNEKES COMBINATION OF SOCKETS IP67 AMAXX 945016
Brand: MENNEKES
SKU: 945016
Price: 425 EUR
Availability: InStock

N.1 CEE 16 A, 5 P, 400 V
N.1 CEE 16 A, 3 P, 230 V
Fusing: N.1 RCD 40A, 4P, 0.03A / N.1 MCB 16A, 3P+N, C / N.3 MCB's 16A, 1P+N, C
Pre-fuse max.: 32 A
InA: 31 A
RDF: 0.97
Connection / Feeder cable: 1.5 m H07RN-F5G6 with plug 32 A, 5P, 400 V
Degree of protection: IP 67
Material: plastic

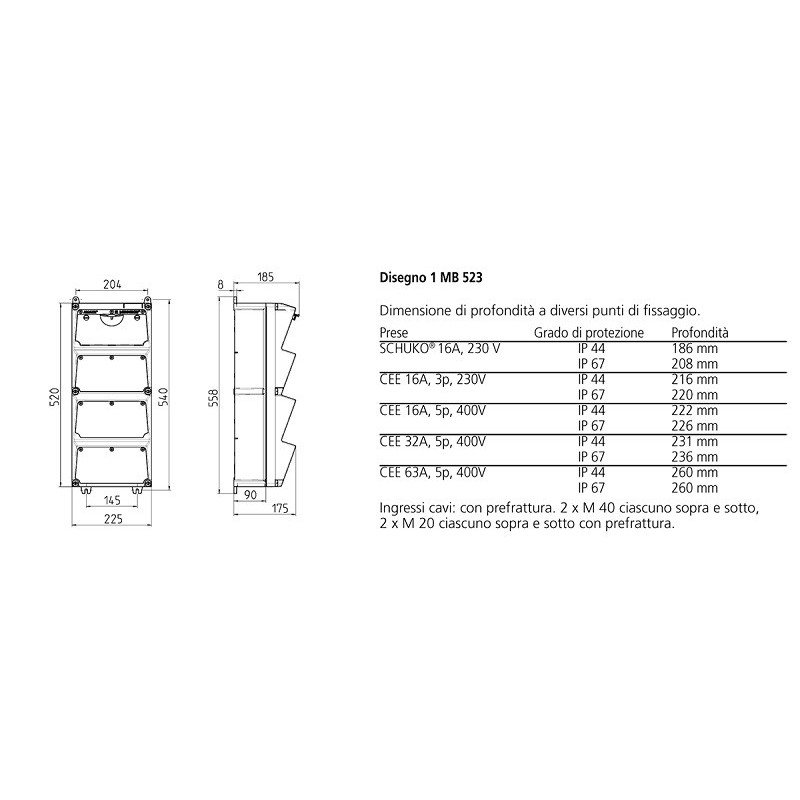

Length: 185 mm
Width: 225 mm
Height: 520 mm
Weight: 6.95 Kg

List price

518.50 € tax incl.

425.00 € tax excl.

Discounted Price

518.50 € tax incl.

425.00 € tax excl.

Shipping Free to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Product: MENNEKES COMBINATION OF SOCKETS IP67 AMAXX 945016

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: MENNEKES COMBINATION OF SOCKETS IP67 AMAXX 945016

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: MENNEKES COMBINATION OF SOCKETS IP67 AMAXX 945016

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 945016

Data sheet

Sockets configuration: 1 CEE 5P 400V 16A + 1 CEE 3P 230V 16A
Protection degree: IP67
Material: Plastic
Length (mm): 185
Width (mm): 225
Height (mm): 520
Product type: Socket box
Fusing: 1 x RCD 40A, 4P, 0.03A - 1 x MCB 16A, 3P+N, C - 3 x MCB's 16A, 1P+N, C
Pre-fuse max. (A): 32
InA (A): 31
RDF: 0.97
Connection / Feeder cable: 1.5 m H07RN-F5G6 with plug 32 A, 5P, 400 V
Weight (Kg): 6.95

Specific References

Condition New

With AMAXX® you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one housing with external mounting that allows installation by one person. The hinged housing cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX® is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

Not binding images and technical data.
