MENNEKES COMBINATION OF SOCKETS IP67 AMAXX 930212

MENNEKES COMBINATION OF SOCKETS IP67 AMAXX 930212

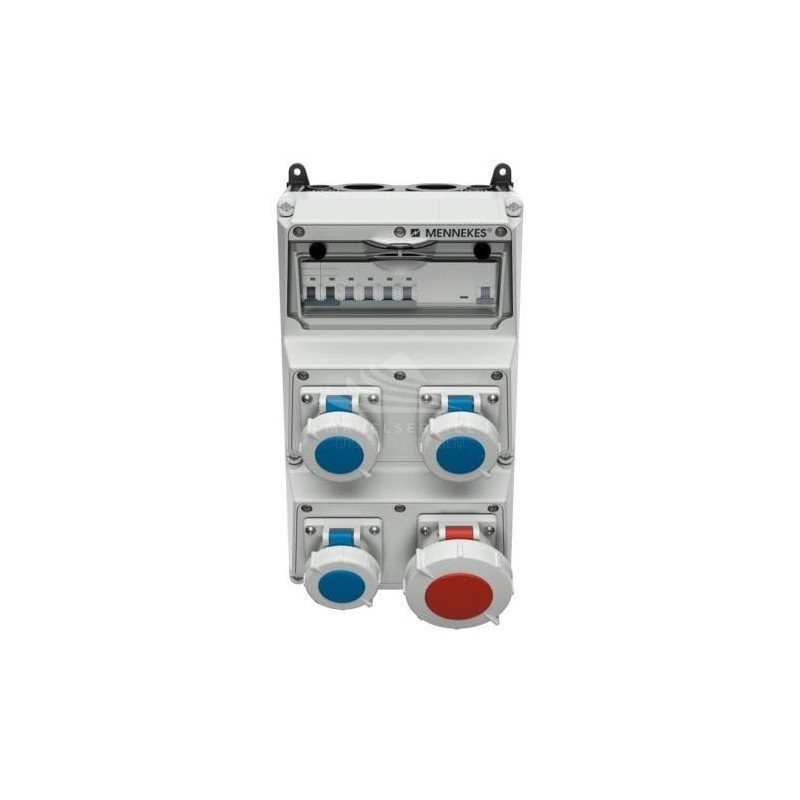

Name: MENNEKES COMBINATION OF SOCKETS IP67 AMAXX 930212
Brand: MENNEKES
SKU: 930212
Price: 417 EUR
Availability: InStock

N.1 CEE 32 A, 5 P, 400 V
N.3 CEE 16 A, 3 P, 230 V
Fusing: N.1 RCD 40A, 4P, 0.03A / N.1 MCB 32A, 3P+N, C / N.1 MCB 16A, 1P+N, C
Pre-fuse max.: 40 A
InA: 34 A
RDF: 0.55
Connection / Feeder cable: for 1 cable up to 5x16 mm²
Degree of protection: IP 67
Material: plastic
Length: 175 mm
Width: 225 mm
Height: 390 mm
Weight: 5.5 Kg

List price

508.74 € tax incl.

417.00 € tax excl.

Discounted Price

508.74 € tax incl.

417.00 € tax excl.

Shipping Free to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Product: MENNEKES COMBINATION OF SOCKETS IP67 AMAXX 930212

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: MENNEKES COMBINATION OF SOCKETS IP67 AMAXX 930212

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: MENNEKES COMBINATION OF SOCKETS IP67 AMAXX 930212

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 930212

Data sheet

Sockets configuration: 1 x 400V 32A 5P CEE - 3 x 230V 16A 3P CEE
Protection degree: IP67
Material: Plastic
Length (mm): 175
Width (mm): 225
Height (mm): 390
Product type: Socket box
Fusing: 1 x RCD 40A, 4P, 0.03A - 1 x MCB 32A, 3P+N, C - 1 x MCB 16A, 1P+N, C
Pre-fuse max. (A): 40
InA (A): 34
RDF: 0.55
Connection / Feeder cable: For 1 cable up to 5x16 mm²
Weight (Kg): 5.5

Specific References

EAN13: 4015394226369

Condition New

With AMAXX® you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one housing with external mounting that allows installation by one person. The hinged housing cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX® is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

Not binding images and technical data.
