IDROFOGLIA ZK25-100-SP

Reference ZK25-100-SP

DISCONTINUED PRODUCT

Pump type: Self-priming motor pump
Manufacturer: KOHLER
Model: KDW 1003
Emissions regulations: STAGE V
Power supply: Diesel
No. of cylinders: 3
Displacement: 1028 cm³
Maximum debris diameter: 35x25 mm
Cooling: Liquid
Suction diameter: Ø 100 / 4"
Delivery diameter: Ø 100 / 4".
Maximum flow rate: 190 m³/h
Maximum head: 30 mt
Maximum suction: 8 m
Power: 18 KW
Road trolley

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference ZK25-100-SP

Data sheet

Fuel: Diesel
Engine: KOHLER KDW1003
Emissions Regulations: Stage 5
Starting system: Elettrico
Engine capacity (cm³): 1028
Number cylinders: 3
Cooling: Liquid
Pump type: High flow rate pump
Fluid type: Slightly sandy wastewaters
Height of suction (m): 30
Maximum output capacity (Lt/min): 3160
Max power (KW): 18
Main body material: Ghisa
Inlet diameter thread type (mm/inches): 100 mm - 4"
Outlet diameter thread type (mm/inches): 100 mm - 4"
Engine manufacturer: Kohler

Specific References

Condition New

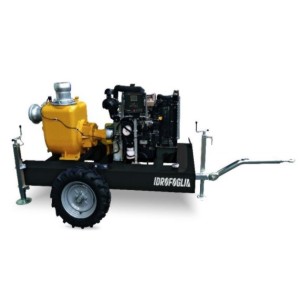

Self-priming motor-pump ZK25-100-SP

Self-priming motor-pump Idrofoglia ZK25-100-SP made for drainage and any other more demanding application on construction sites and in the industrial and emergency sectors.
The pumping of more abrasive fluids with high passage of solid bodies is guaranteed by the robustness of the hydraulic system and the exclusive impeller, with open blades and double curvature type.

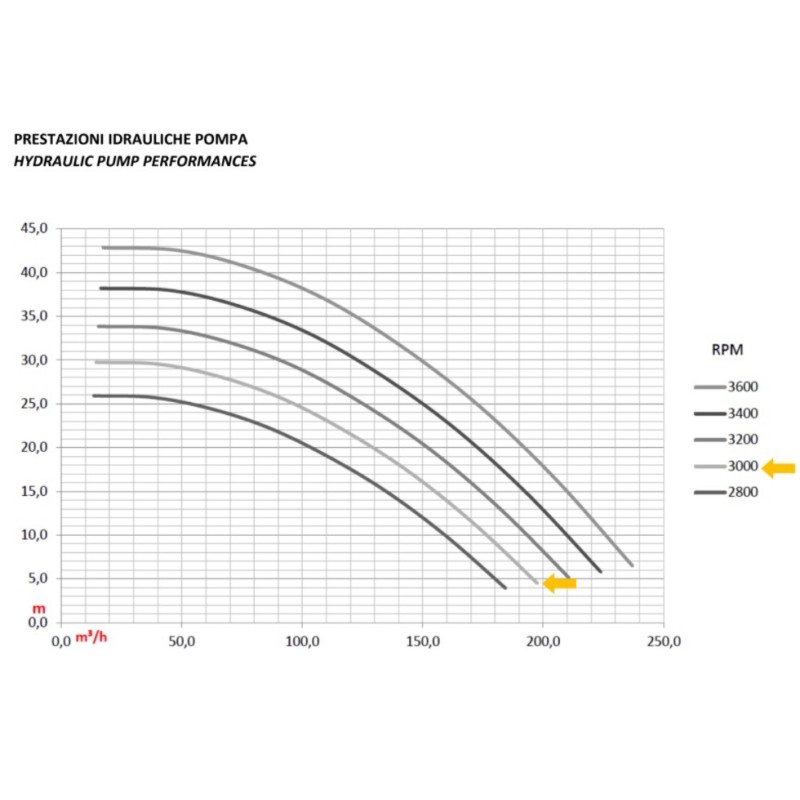

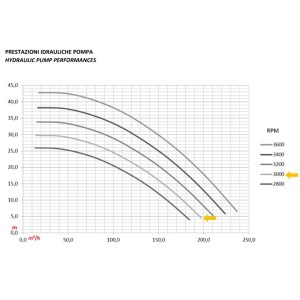

Self-priming Idrofoglia ZK25-100-SP motor-pump with 4" - Ø100 mm inlets, performance as shown in the curve below, solids handling Ø max 35x25 mm.
Pump body: grey cast iron EN GJL 250 - Impeller: spheroidal cast iron EN GJL 400 - Shaft: steel C40
Painted frame on 2 wheels. Standard tank incorporated on motor.

Technical Characteristics Idrofoglia ZK25-100-SP motor pump

non-binding images and technical data.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
