Self-priming Motor Pump Idrofoglia ZL80-1/2T-SP

Name: Self-priming Motor Pump Idrofoglia ZL80-1/2T-SP
Brand: IDROFOGLIA
SKU: ZL80-1/2T-SP
Price: 3672.2 EUR
Availability: InStock

Reference ZL80-1/2T-SP

Pump type: Self-priming motor pump
Manufacturer: LOMBARDINI - KOHLER
Model: 15 LD 440
Emissions regulations: TIER 1
Power supply: Diesel
No. of cylinders: 1
Displacement: 442 cm³
Maximum debris diameter: 25x22 mm
Suction: Natural
Cooling: Air
Continuous power @ 1750 rpm: 4.0 kW - 5.4 HP
Continuous power @ 2500 rpm: 6.0 kW - 8.2 HP
Continuous power @ 3000 rpm: 6.7 kW - 9.1 HP
Maximum power @ 3600 rpm: 7.3 kW - 9.9 HP
Starting: recoil start manual

List price

6,219.56 € tax incl.

5,098.00 € tax excl.

Discounted Price

3,672.20 € tax incl.

3,010.00 € tax excl.

Shipping from 61.00 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference ZL80-1/2T-SP

Data sheet

Fuel: Diesel
Engine: Lombardini 15 LD 440
Emissions Regulations: Stationary Use
Starting system: Pull starter
Engine capacity (cm³): 442
Number cylinders: 1
Cooling: Air
Pump type: High flow rate pump
Fluid type: Slightly sandy wastewaters
Height of suction (m): 40
Maximum output capacity (Lt/min): 1600
Max power (KW): 7.3
Main body material: Ghisa
Inlet diameter thread type (mm/inches): 80 mm - 3"
Outlet diameter thread type (mm/inches): 80 mm - 3"
Mechanical power (hp): 9,9 Max
Product type: Pompa

Specific References

Condition New

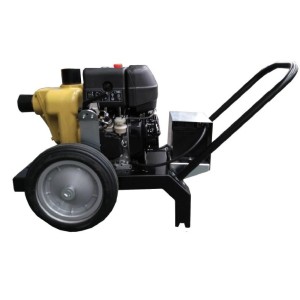

Self-priming motor-pump ZL80-1/2T-SP

Idrofoglia ZL80-1/2T-SP motor-pump with Lombardini 15LD440 diesel engine, complete with 2 spherical fittings of Ferrari type diameter 80 mm (1 delivery and 1 suction).
The motor pump Idrofoglia ZL80-1/2T-SP has a maximum flow rate of 1600 liters per minute at head 0, also allows the passage of solid debris of diameter 22x25 mm.

Self-priming Idrofoglia ZL80-1/2T-SP motor-pump with 3" - Ø80 mm inlets, performance as shown in the curve below, solids passage Ø max 25x22 mm.
Pump body: grey cast iron EN GJL 250 - Volute: spheroidal cast iron EN GJL 400 - Impeller: spheroidal cast iron EN GJL 400 - Shaft: steel C40
Painted frame on 2 wheels, with handle for manual movement. Standard tank incorporated on motor.
Manual recoil start.

Technical Characteristics Idrofoglia ZL80-1/2T-SP motor pump

Pump type: Self-priming motor pump
Manufacturer: LOMBARDINI - KOHLER
Model: 15 LD 440
Emissions regulations: TIER 1
Power supply: Diesel
No. of cylinders: 1
Displacement: 442 cm³
Maximum flow rate: 1600 litres per minute
Maximum debris diameter: 25x22 mm
Suction: Natural
Cooling: Air
Continuous power @ 1750 rpm: 4.0 kW - 5.4 HP
Continuous power @ 2500 rpm: 6.0 kW - 8.2 HP
Continuous power @ 3000 rpm: 6.7 kW - 9.1 HP
Maximum power @ 3600 rpm: 7.3 kW - 9.9 HP
Starting: recoil start manual

non-binding images and technical data.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
