PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 1000x685
Drive: Electric
Operator type: Pedestrian
Load capacity: 1400 Kg
Quantity rear wheels: 2
Lift height: 115 mm
Overall lenght: 1500 mm
Overall width: 720 mm
Width fork: 150 mm
Lenght fork: 1000 mm
Distance between fork arms: 685 mm
Aisle width: 1700 mm
Turning radius: 1285 mm
Travel speed laden: 4.5 Km/h
Travel speed unladen: 4.7 Km/h
Drive motor power: 0.7 KW
LIFTER CX14 1000x685

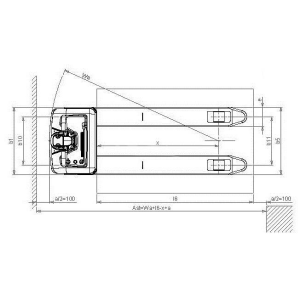

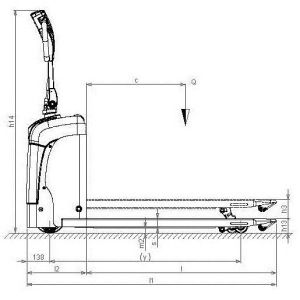

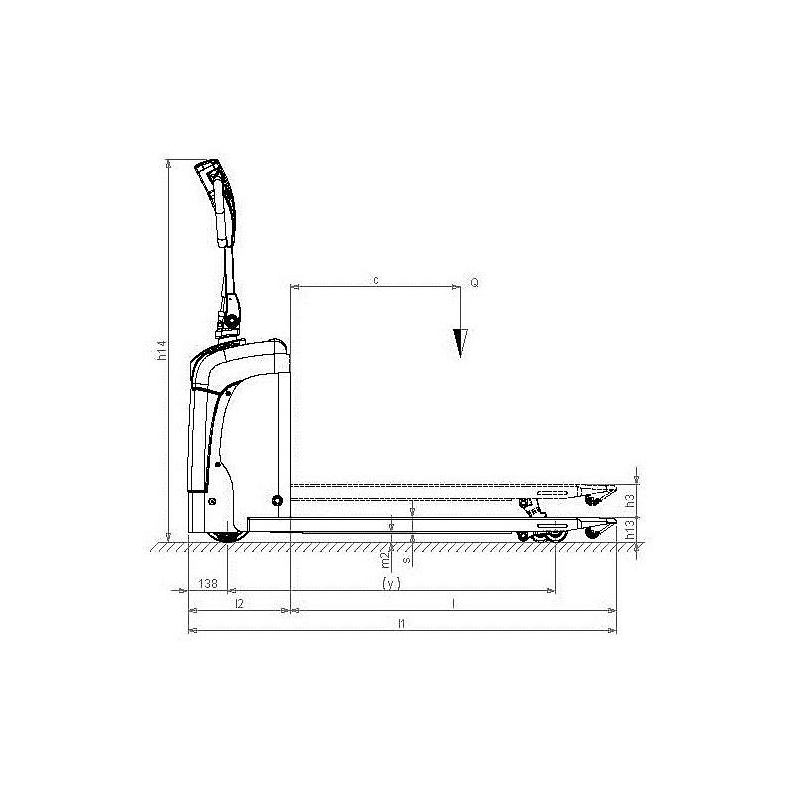

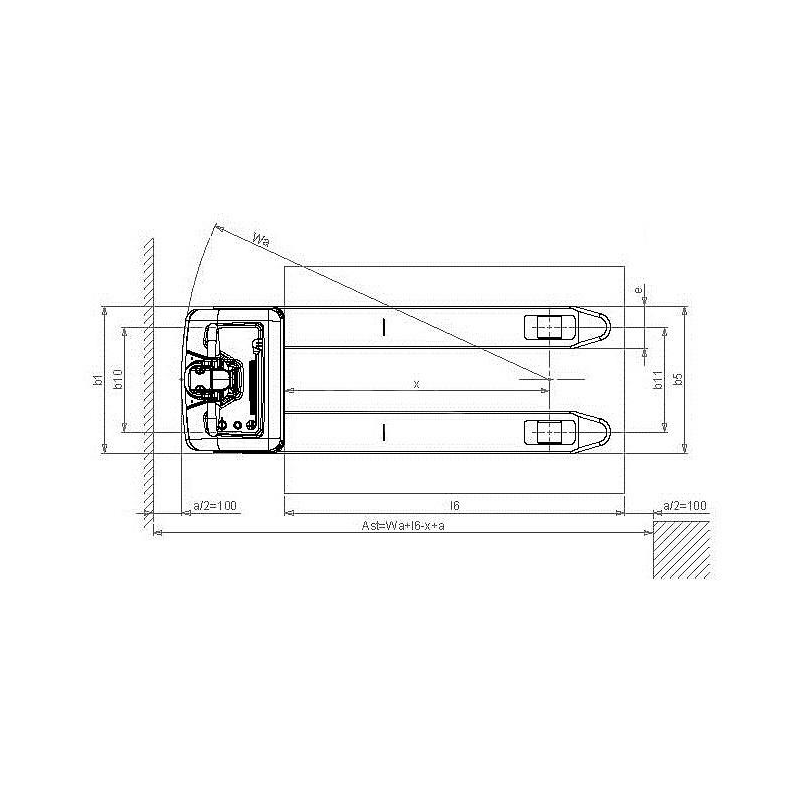

Data sheet
- Drive
- Electric
- Operator type
- Pedestrian
- Load capacity (Kg)
- 1400
- Load centre distance (mm)
- 500
- Load axle to end forks (mm)
- 785
- Wheel base (mm)
- 1045
- Service weight (Kg)
- 209
- Axle load, laden rear (Kg)
- 1045
- Axle load, laden front (Kg)
- 564
- Axle load, unladen front (Kg)
- 177
- Axle load, unladen rear (Kg)
- 32
- Tyres: front wheels
- RUBBER
- Tyres: stabilizers wheels
- POLY.C.
- Tyres: rear wheels
- POLY.C.
- Diameter steering wheels (mm)
- 250
- Width steering wheels (mm)
- 76
- Diameter load rollers (mm)
- 82
- Width load rollers (mm)
- 60
- Diameter stabilizers wheels front (mm)
- 100
- Width stabilizers wheels front (mm)
- 40
- Quantity rear wheels
- 2
- Tread front (mm)
- 506
- Tread rear (mm)
- 535
- Lift height (mm)
- 115
- Height of tiller in drive position max (mm)
- 1242
- Height lowered (mm)
- 85
- Overall lenght (mm)
- 1500
- Lenght to face of forks (mm)
- 500
- Overall width (mm)
- 720
- Thickness fork (mm)
- 50
- Width fork (mm)
- 150
- Lenght fork (mm)
- 1000
- Distance between fork arms (mm)
- 685
- Ground clearance at centre of wheelbase (mm)
- 35
- Aisle width (mm)
- 1700
- Turning radius (mm)
- 1285
- Travel speed laden (Km/h)
- 4.5
- Travel speed unladen (Km/h)
- 4.7
- Lifting speed laden (m/s)
- 0.02
- Lifting speed unladen (m/s)
- 0.03
- Lowering speed laden (m/s)
- 0.04
- Lowering speed unladen (m/s)
- 0.04
- Max gradeability laden (%)
- 5
- Max gradeability unladen (%)
- 10
- Service brake
- Electric
- Drive motor power (KW)
- 0.7
- Lift motor power (KW)
- 0.4
- Battery voltage (V)
- 24
- Battery capacity min (Ah)
- 70
- Battery capacity max (Ah)
- 70
- Battery weight min (Kg)
- 32
- Battery weight max (Kg)
- 32
Specific References
New

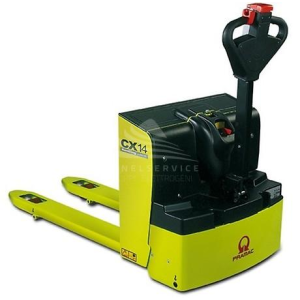

The CX electric pallet trucks are available in different versions equipped with MOSFET technology. They are suitable for carrying loads on smooth or paved surfaces. Its small size and turning radius make it the ideal tool to work with in confined spaces, such as lorries or narrow aisles.
Manoeuvrability
Thanks to the B1 width, which is equal to the fork gauge, and the L2 measurement of 360 mm, the CX12 electronic pallet truck is the ideal tool for the handling of pallets on lorries, in supermarket aisles and any application where space is limited. This machine is the best configuration in its category thanks to the frame width, in-service weight and turning radius, thus guaranteeing great manoeuvrability and compactness.

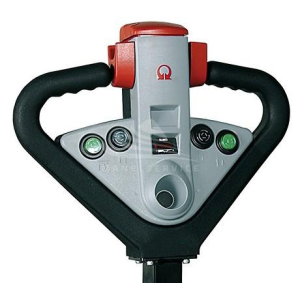

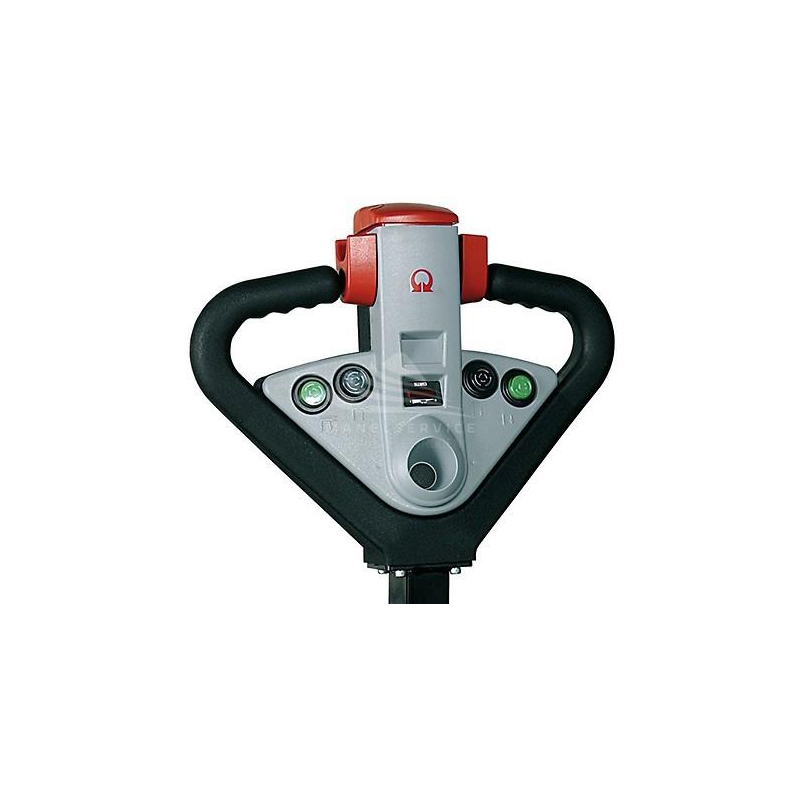

Steering wheel and controls
- Ergonomic tiller
- Luminous indicator for battery state control.
- Butterfly valves for traction control.
- Safety pushbutton with warning buzzer.
- Forks way up/down control positioned on both sides of the handle.
- Hour counter in the Plus and Gel versions.
- ''Tortoise'' pushbutton for slow motion, which allows for the carrying out of operations with the tiller in vertical position.

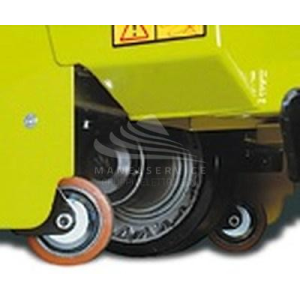

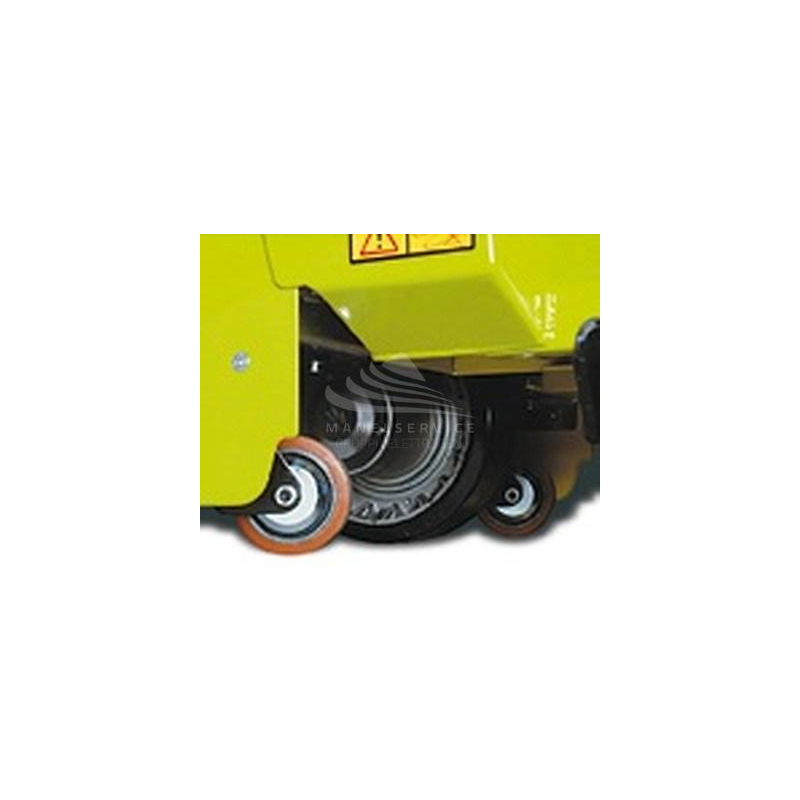

Stabilizers
Two stabilizing wheels enable movement even on more difficult surfaces thus guaranteeing maximum stability in any condition of use.
The images are purely indicative.
