PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 1000x525

Name: PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 1000x525
Brand: LIFTER
SKU: LIFTER CX14 1000x525
Price: 4209 EUR
Availability: InStock

Reference LIFTER CX14 1000x525

Drive: Electric
Operator type: Pedestrian
Load capacity: 1400 Kg
Quantity rear wheels: 2
Lift height: 115 mm
Overall lenght: 1500 mm
Overall width: 720 mm
Width fork: 150 mm
Lenght fork: 1000 mm
Distance between fork arms: 525 mm
Aisle width: 1700 mm
Turning radius: 1285 mm
Travel speed laden: 4.5 Km/h
Travel speed unladen: 4.7 Km/h
Drive motor power: 0.7 KW

List price

5,931.64 € tax incl.

4,862.00 € tax excl.

Discounted Price

4,209.00 € tax incl.

3,450.00 € tax excl.

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference LIFTER CX14 1000x525

Data sheet

Drive: Electric
Operator type: Pedestrian
Load capacity (Kg): 1400
Load centre distance (mm): 500
Load axle to end forks (mm): 785
Wheel base (mm): 1045
Service weight (Kg): 203
Axle load, laden rear (Kg): 1042
Axle load, laden front (Kg): 561
Axle load, unladen front (Kg): 169
Axle load, unladen rear (Kg): 34
Tyres: front wheels: RUBBER
Tyres: stabilizers wheels: POLY.C.
Tyres: rear wheels: POLY.C.
Diameter steering wheels (mm): 250
Width steering wheels (mm): 76
Diameter load rollers (mm): 82
Width load rollers (mm): 60
Diameter stabilizers wheels front (mm): 100
Width stabilizers wheels front (mm): 40
Quantity rear wheels: 2
Tread front (mm): 506
Tread rear (mm): 375
Lift height (mm): 115

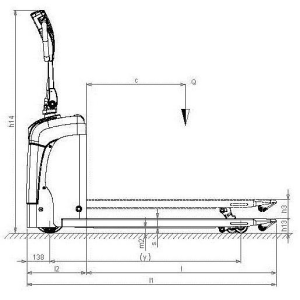

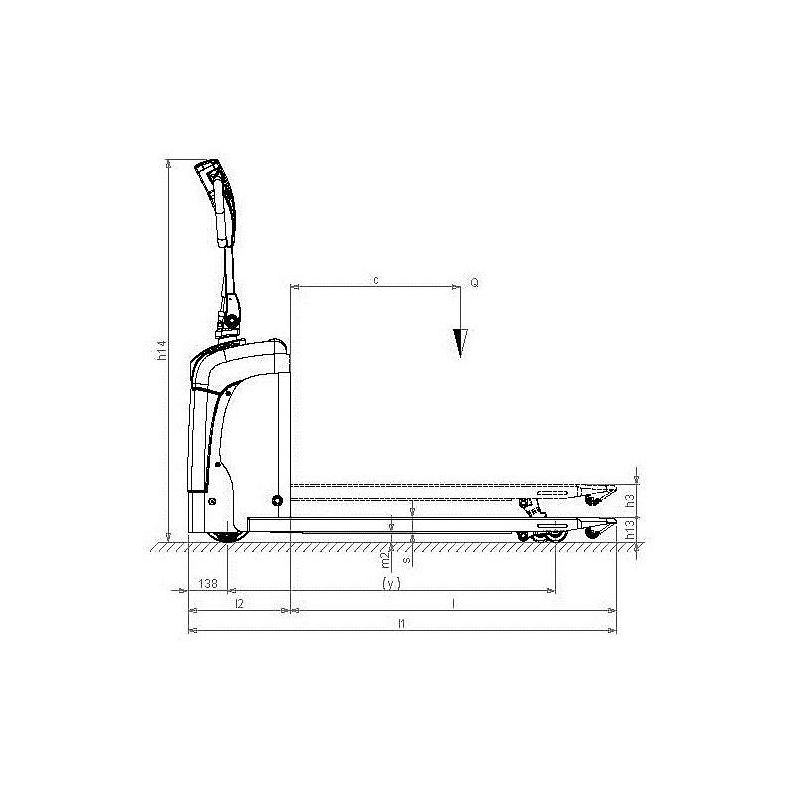

Height of tiller in drive position max (mm): 1242
Height lowered (mm): 85
Overall lenght (mm): 1500
Lenght to face of forks (mm): 500
Overall width (mm): 720
Thickness fork (mm): 50
Width fork (mm): 150
Lenght fork (mm): 1000
Distance between fork arms (mm): 525
Ground clearance at centre of wheelbase (mm): 35

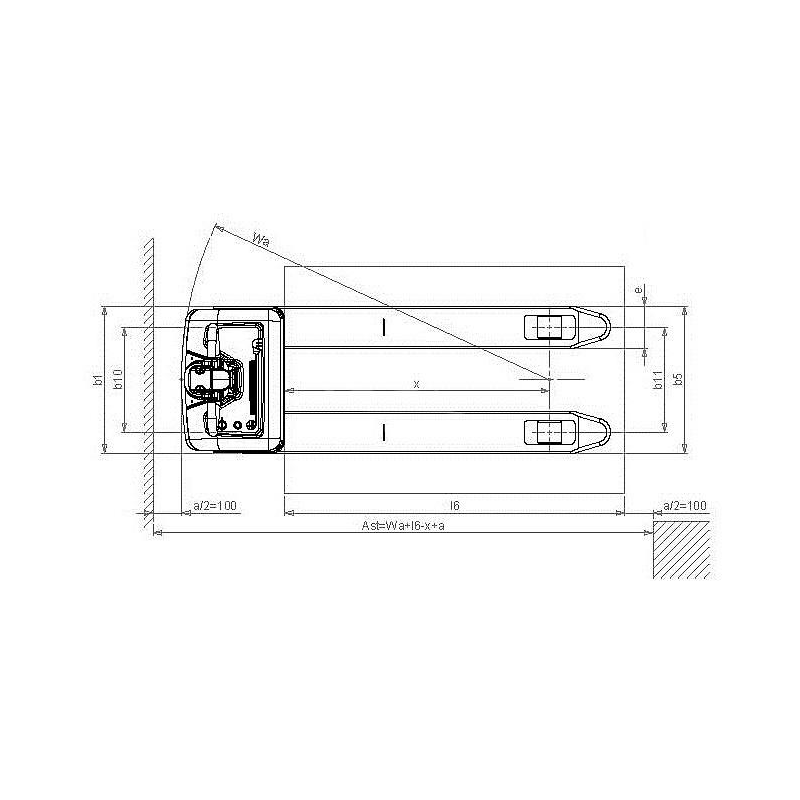

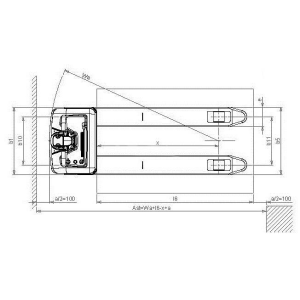

Aisle width (mm): 1700
Turning radius (mm): 1285
Travel speed laden (Km/h): 4.5
Travel speed unladen (Km/h): 4.7
Lifting speed laden (m/s): 0.02
Lifting speed unladen (m/s): 0.03
Lowering speed laden (m/s): 0.04
Lowering speed unladen (m/s): 0.04
Max gradeability laden (%): 5
Max gradeability unladen (%): 10
Service brake: Electric
Drive motor power (KW): 0.7
Lift motor power (KW): 0.4
Battery voltage (V): 24
Battery capacity min (Ah): 70
Battery capacity max (Ah): 70
Battery weight min (Kg): 32
Battery weight max (Kg): 32

Specific References

Condition New

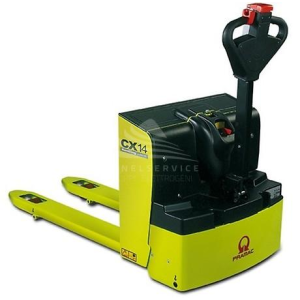

PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 1000x525: Optimal Efficiency in Material Handling

The PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 1000x525 redefines material handling efficiency in warehouses, distribution centers, and various industrial settings. Designed for the modern logistics professional, this pedestrian-operated electric pallet truck combines advanced technology, ergonomic design, and robust performance to meet the most demanding operational needs.

Drive and Performance:
Equipped with an electric drive, the PRAMAC LIFTER CX14 ensures smooth and efficient operation with a load capacity of 1400 Kg. Its compact dimensions, with an overall length of 1500 mm and width of 720 mm, along with a tight turning radius of 1285 mm, allow for superior maneuverability in confined spaces. The PRAMAC LIFTER CX14 's travel speed of up to 4.7 Km/h unladen and 4.5 Km/h laden ensures timely and efficient transportation of goods.

Ergonomics and Control:

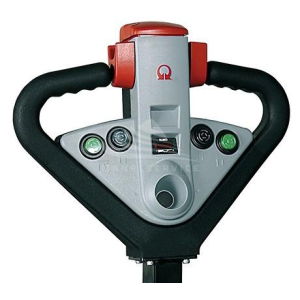

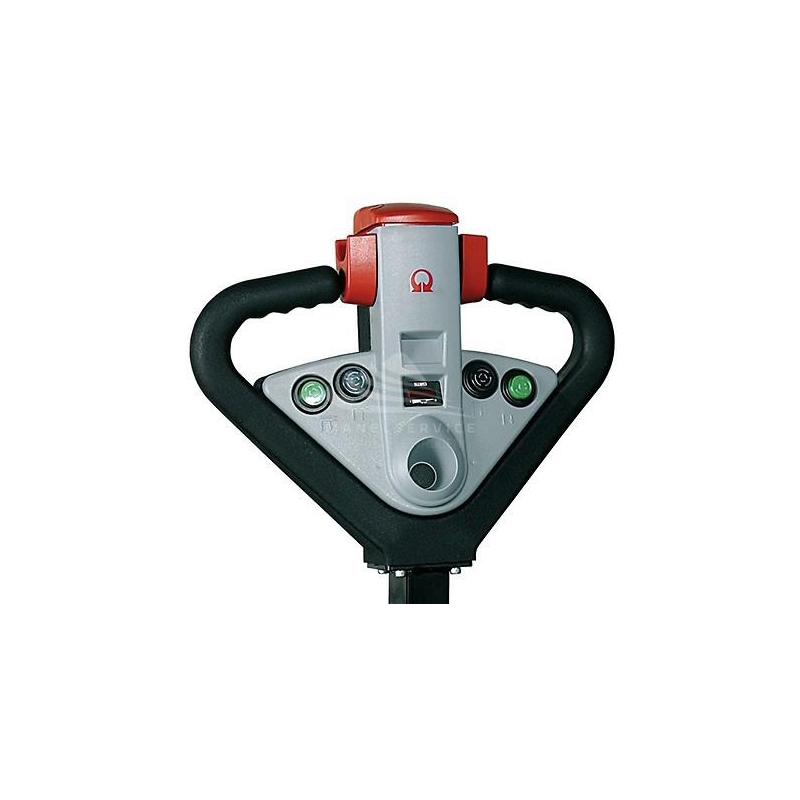

The PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 is designed with the operator's comfort in mind. The ergonomic tiller features luminous indicators for battery state control, butterfly valves for precise traction control, and a safety pushbutton with a warning buzzer for enhanced safety. Additionally, controls for fork movement are conveniently located on both sides of the handle, ensuring ease of use and reducing operator fatigue.

Maneuverability and Stability:

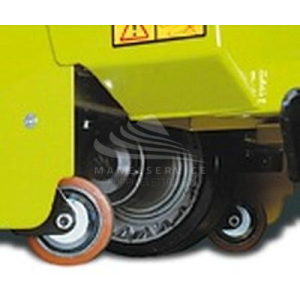

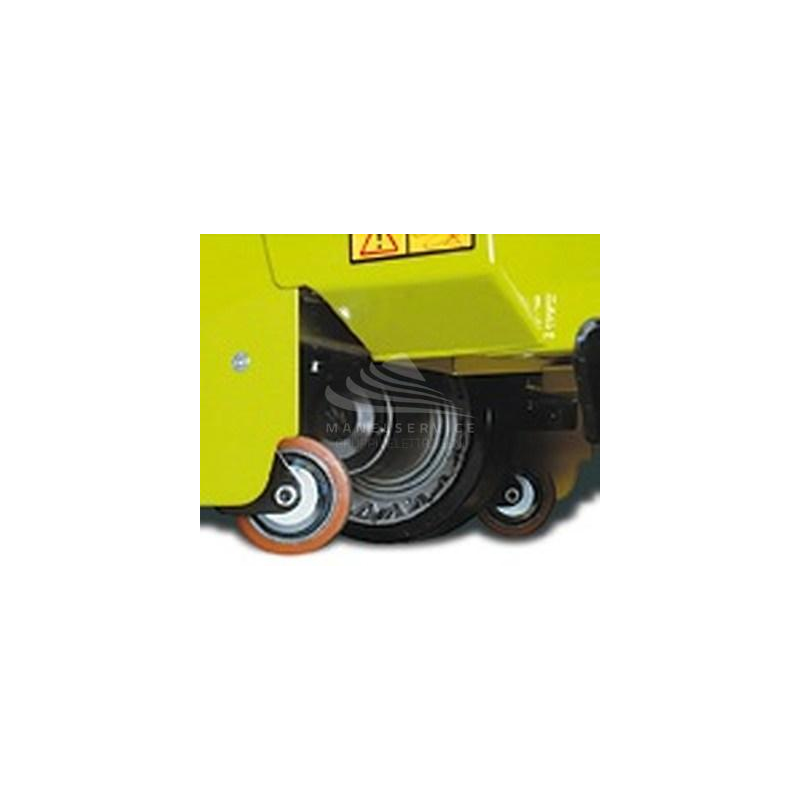

Thanks to its MOSFET technology and optimal dimensions, the PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 excels in maneuverability and stability, making it ideal for working in tight spaces such as lorries, supermarket aisles, and narrow corridors. The inclusion of two stabilizing wheels further enhances its stability, enabling safe operation on uneven surfaces.

Maintenance and Durability:
PRAMAC's commitment to durability and low maintenance requirements is evident in the PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 's design. Its robust construction and easy access to maintenance areas ensure a long service life and reduced downtime, translating into higher productivity and lower operational costs.

Versatility:
The PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 1000x525 is not just about moving loads. Its versatility extends to applications requiring precise handling and positioning of goods, thanks to its lift height of 115 mm and the ability to operate efficiently in a wide variety of environments.

In conclusion, the PRAMAC LIFTER CX14 1000x525 stands out as a compact, efficient, and versatile solution for material handling challenges. Its design emphasizes ergonomics, maneuverability, and ease of maintenance, making it a top choice for businesses looking to enhance their operational efficiency and safety.

Conosci la gamma dei nostri prodotti.

The images are purely indicative.

""* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
