      Drive: Electric
      Operator type: Pedestrian
      Load capacity: 1400 Kg
      Quantity rear wheels: 2
      Lift height: 115 mm
      Overall lenght: 1560 mm
      Overall width: 720 mm
      Width fork: 150 mm
      Lenght fork: 1150 mm
      Distance between fork arms: 525 mm
      Aisle width: 1900 mm
      Turning radius: 1345 mm
      Travel speed laden: 6 Km/h
      Travel speed unladen: 6 Km/h
      Drive motor power: 0.7 KW

      List price
      6,574.95 € tax incl.
      5,389.30 € tax excl.
      Discounted Price
      6,574.95 € tax incl.
      5,389.30 € tax excl.
      Shipping Free to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 1150x525 EVO LI-ION

      PERSONAL DATA


      Ask a question
      Product: PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 1150x525 EVO LI-ION
      Offer on letterhead
      Product: PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 1150x525 EVO LI-ION
      LIFTER
      CX14 1150x525

      Data sheet

      Battery type
      AGM
      Drive
      Electric
      Operator type
      Pedestrian
      Load capacity (Kg)
      1400
      Load centre distance (mm)
      600
      Load axle to end forks (mm)
      935
      Wheel base (mm)
      1195
      Service weight (Kg)
      255
      Axle load, laden rear (Kg)
      1047
      Axle load, laden front (Kg)
      609
      Axle load, unladen front (Kg)
      213
      Axle load, unladen rear (Kg)
      42
      Tyres: front wheels
      RUBBER
      Tyres: stabilizers wheels
      POLY.C.
      Tyres: rear wheels
      POLY.C.
      Diameter steering wheels (mm)
      250
      Width steering wheels (mm)
      76
      Diameter load rollers (mm)
      82
      Width load rollers (mm)
      80
      Diameter stabilizers wheels front (mm)
      100
      Width stabilizers wheels front (mm)
      40
      Quantity rear wheels
      2
      Tread front (mm)
      530
      Tread rear (mm)
      375
      Lift height (mm)
      115

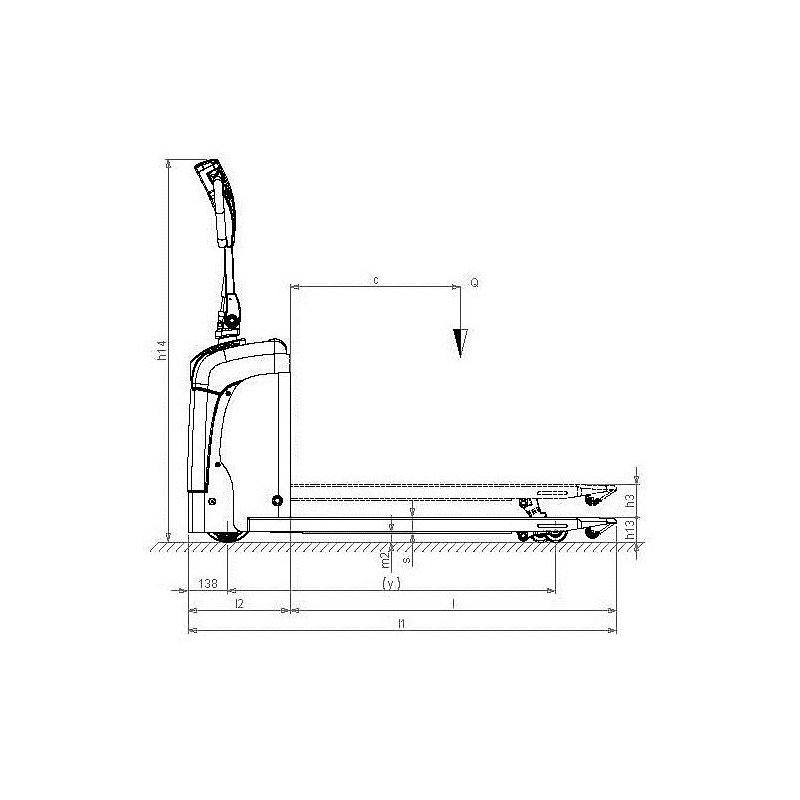

      Height of tiller in drive position max (mm)
      1238
      Height lowered (mm)
      85
      Overall lenght (mm)
      1560
      Lenght to face of forks (mm)
      411
      Overall width (mm)
      720
      Thickness fork (mm)
      55
      Width fork (mm)
      150
      Lenght fork (mm)
      1150
      Distance between fork arms (mm)
      525
      Ground clearance at centre of wheelbase (mm)
      30

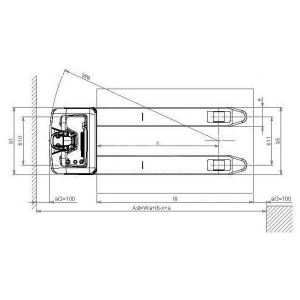

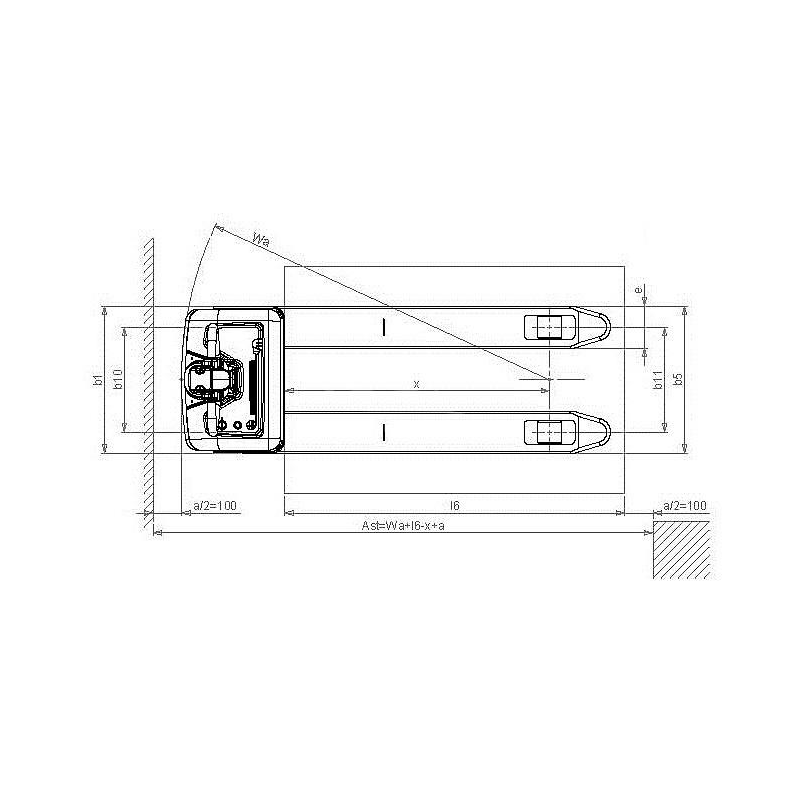

      Aisle width (mm)
      1810
      Turning radius (mm)
      1344
      Travel speed laden (Km/h)
      6
      Travel speed unladen (Km/h)
      6
      Lifting speed laden (m/s)
      0.03
      Lifting speed unladen (m/s)
      0.04
      Lowering speed laden (m/s)
      0.05
      Lowering speed unladen (m/s)
      0.04
      Max gradeability laden (%)
      5
      Max gradeability unladen (%)
      10
      Service brake
      Electric
      Drive motor power (KW)
      0.7
      Lift motor power (KW)
      1
      Battery voltage (V)
      24
      Battery capacity min (Ah)
      85
      Battery capacity max (Ah)
      85
      Battery weight min (Kg)
      61
      Battery weight max (Kg)
      61
      Sound level at driver's ear
      59 dB(A)

      Specific References

      New

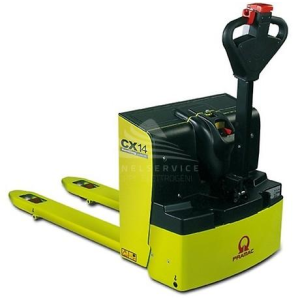

      PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 1150x525 EVO LI-ION: A Paradigm of Efficiency and Innovation

      The PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 1150x525 EVO LI-ION embodies the pinnacle of material handling solutions, blending advanced technology with unparalleled efficiency. This pedestrian-operated electric pallet truck is meticulously designed to cater to the rigorous demands of modern warehouses, distribution centers, and various industrial environments, ensuring the seamless and efficient movement of goods.

      Drive and Performance:
      Powered by an electric drive, the PRAMAC LIFTER CX14 EVO LI-ION offers robust performance with a maximum load capacity of 1400 Kg. Its overall length of 1560 mm and width of 720 mm, coupled with a precise lift height of 115 mm, enable optimal maneuverability and space utilization. The truck's agility is further enhanced by a turning radius of 1345 mm, allowing for effortless navigation in confined spaces. With a consistent travel speed of 6 Km/h, whether laden or unladen, this model ensures swift and efficient operations.

      Advanced Technology:

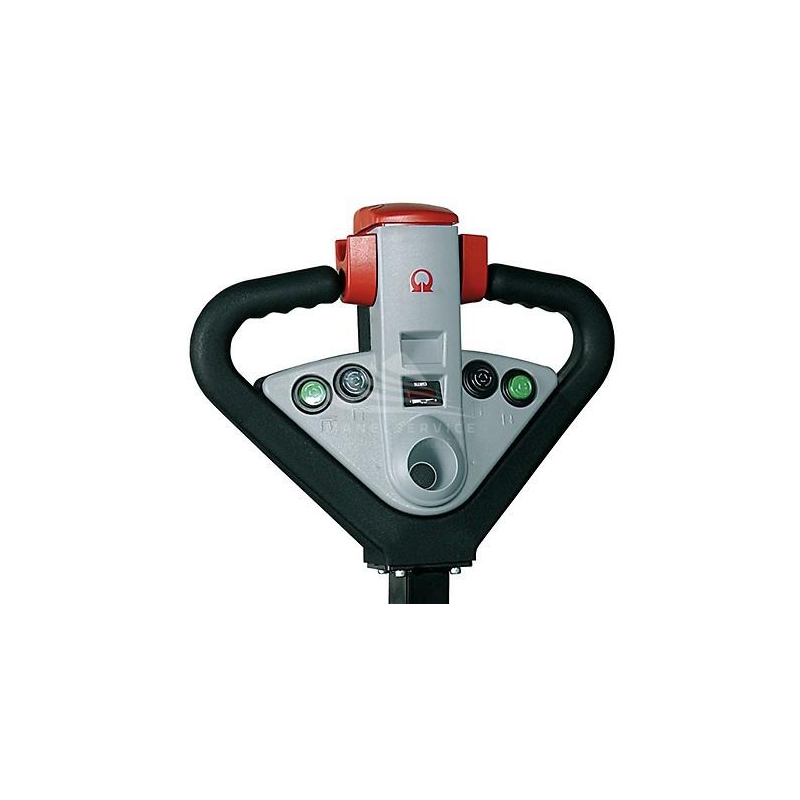

      Equipped with MOSFET technology, the PRAMAC LIFTER  CX14 EVO is engineered for reliability and performance on smooth or paved surfaces. Its ergonomic tiller includes a luminous indicator for battery state control, butterfly valves for traction, and a safety pushbutton with a warning buzzer, ensuring ease of use and operator safety. The unique 'Tortoise' button facilitates slow-motion control, allowing for precision handling even in tight spaces.

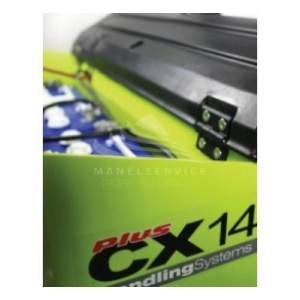

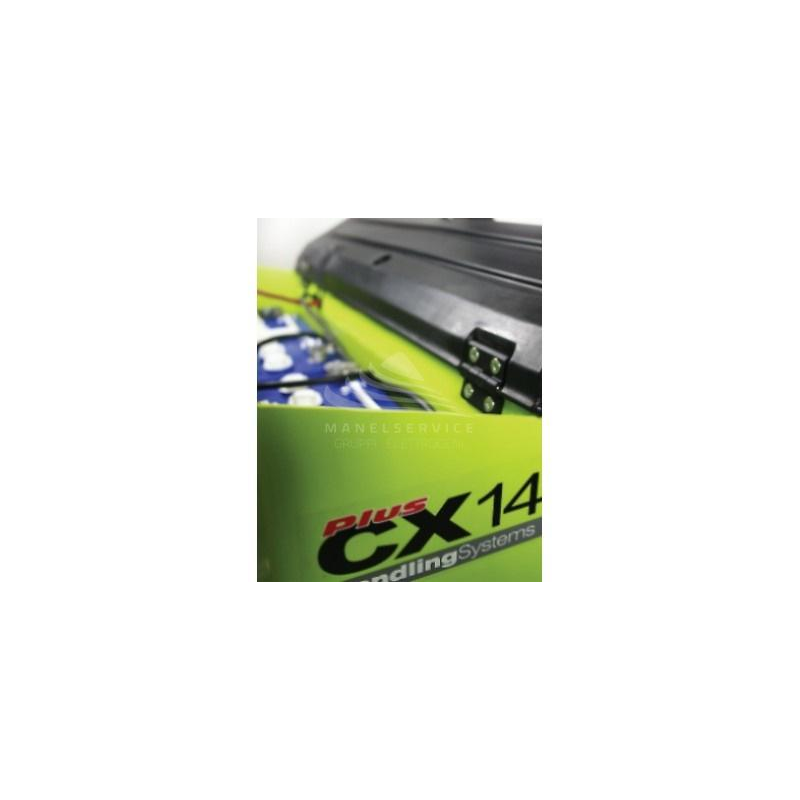

      PLUS Batteries for Enhanced Autonomy:
      The PRAMAC LIFTER  CX14 EVO  stands out with its advanced LI-ION Plus batteries, offering significant improvements in autonomy and operational life. These semitraction batteries not only provide up to five times the number of charge cycles but also ensure easy access for maintenance. This model's design optimizes the balance between size, power, and cost-efficiency, making it a leading choice for businesses seeking to minimize running costs without compromising on performance.

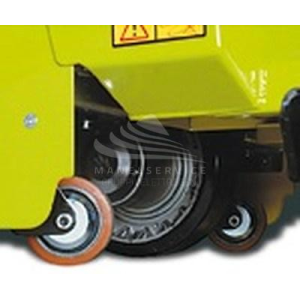

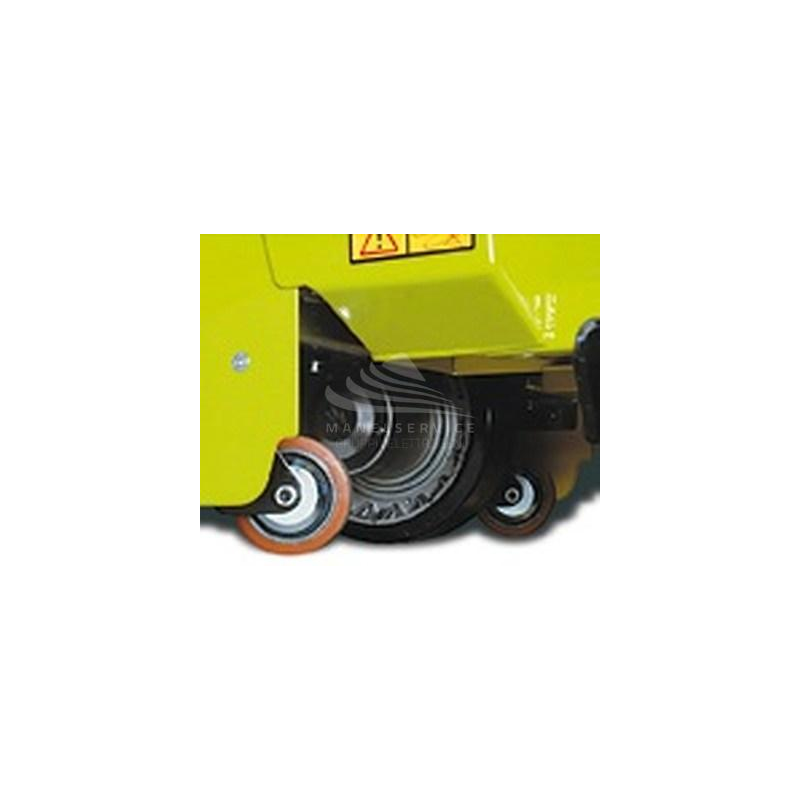

      Stability and Maneuverability:
      Designed with two stabilizing wheels, the  PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 guarantees maximum stability across various surfaces, ensuring safe and reliable operation under all conditions. Its compact frame, optimal in-service weight, and reduced turning radius contribute to its exceptional maneuverability, making it the ideal tool for handling pallets in lorries, supermarket aisles, and other settings where space is at a premium.

      Conclusion:
      The PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 1150x525 EVO LI-ION represents a significant leap forward in material handling technology. Its combination of advanced features, ergonomic design, and energy-efficient performance makes it an indispensable asset for any operation looking to enhance productivity, safety, and cost-effectiveness in their material handling processes.
