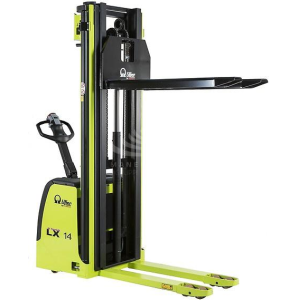

PRAMAC LIFTER ELECTRIC STACKER LX14/45 TRIPLEX FREE LIFT
      PRAMAC LIFTER ELECTRIC STACKER LX14/45 TRIPLEX FREE LIFT

      PRAMAC LIFTER ELECTRIC STACKER LX14/45 TRIPLEX FREE LIFT

      Drive: Electric
      Operator type: Pedestrian
      Load capacity: 1400 Kg
      Quantity rear wheels: 4
      Height mast lowered: 2089 mm
      Normal free lifting: 1470 mm
      Lift height: 4410 mm
      Overall lenght: 1966 mm
      Overall width: 800 mm
      Width fork: 170 mm
      Lenght fork: 1150 mm
      Distance between fork arms: 560 mm
      Aisle width: 2380 mm
      Turning radius: 1613 mm

      List price
      12,175.60 € tax incl.
      9,980.00 € tax excl.
      Discounted Price
      12,175.60 € tax incl.
      9,980.00 € tax excl.
      Shipping from 375.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: PRAMAC LIFTER ELECTRIC STACKER LX14/45 TRIPLEX FREE LIFT

      PERSONAL DATA


      Ask a question
      Product: PRAMAC LIFTER ELECTRIC STACKER LX14/45 TRIPLEX FREE LIFT
      Offer on letterhead
      Product: PRAMAC LIFTER ELECTRIC STACKER LX14/45 TRIPLEX FREE LIFT
      LIFTER
      HLB14030000

      Data sheet

      Drive
      Electric
      Operator type
      Pedestrian
      Load capacity (Kg)
      1400
      Load centre distance (mm)
      600
      Load axle to end forks (mm)
      797
      Wheel base (mm)
      1436
      Service weight (Kg)
      1223
      Axle load, laden rear (Kg)
      1710
      Axle load, laden front (Kg)
      913
      Axle load, unladen front (Kg)
      823
      Axle load, unladen rear (Kg)
      400
      Tyres: front wheels
      RUBBER
      Tyres: stabilizers wheels
      POLY.C.
      Tyres: rear wheels
      POLY.C.
      Diameter steering wheels (mm)
      250
      Width steering wheels (mm)
      101
      Diameter load rollers (mm)
      82
      Width load rollers (mm)
      70
      Diameter stabilizers wheels front (mm)
      100
      Width stabilizers wheels front (mm)
      38
      Quantity rear wheels
      4
      Quantity front wheels
      1 driven
      Tread front (mm)
      586
      Tread rear (mm)
      390
      Height mast lowered (mm)
      2089
      Normal free lifting (mm)
      1470
      Lift height (mm)
      4410
      Height mast extended (mm)
      5029
      Height of tiller in drive position max (mm)
      1390
      Height of tiller in drive position min (mm)
      990
      Height lowered (mm)
      90
      Overall lenght (mm)
      1966
      Overall lenght with lowered platform (mm)
      2550
      Overall lenght with raised platform (mm)
      2090
      Lenght to face of forks (mm)
      816
      Lenght to face of forks with lowered platform (mm)
      1400
      Lenght to face of forks with raised platform (mm)
      940
      Overall width (mm)
      800
      Thickness fork (mm)
      70
      Width fork (mm)
      170
      Lenght fork (mm)
      1150
      Fork carriage width (mm)
      644
      Distance between fork arms (mm)
      560
      Ground clearance at centre of wheelbase (mm)
      20
      Aisle width (mm)
      2380
      Aisle width with lowered platform (mm)
      2964
      Aisle width with raised platform (mm)
      2510
      Turning radius (mm)
      1613
      Turning radius with lowered platform (mm)
      2196
      Turning radius with raised platform (mm)
      1742
      Travel speed laden (Km/h)
      6
      Travel speed unladen (Km/h)
      6
      Travel speed laden with platform in lowered position (Km/h)
      6
      Travel speed unladen with platform in lowered position (Km/h)
      6
      Travel speed laden with platform in raised position or with raised forks (Km/h)
      6
      Travel speed unladen with platform in raised position or with raised forks (Km/h)
      6
      Lifting speed laden (m/s)
      0.14
      Lifting speed unladen (m/s)
      0.28
      Lowering speed laden (m/s)
      0.34
      Lowering speed unladen (m/s)
      0.40
      Max gradeability laden (%)
      5
      Max gradeability unladen (%)
      10
      Drive motor power (KW)
      1.2
      Lift motor power (KW)
      3.2
      Battery voltage (V)
      24
      Battery capacity min (Ah)
      225
      Battery capacity max (Ah)
      300
      Battery weight min (Kg)
      270
      Battery weight max (Kg)
      270
      Energy consumption according to VDI cycle (KWh/h)
      1.17
      Sound level at driver's ear
      67
      Type of lifting
      Electric

      Specific References

      New

      The LX II edition is a strong and reliable partner which bridges the gap between lowduty and heavy duty material handling daily operations. Due to its durability, low maintenance LX is suitable for environments as logistic centers, terminals, production and manufacturing areas. Also the new tiller arm equipped with fork lifting and lowering proportional control improves user-friendliness and maneuverability of the truck.

      TRIPLEX FREE LIFT
      The Triplex model has 3 lifting stages for high lifting height. The 2 side cylinders that guarantee excellent visibility for the operator during the maneuvering phases.

      ZAPI controller
      AC technology guarantees more energy efficiency and longer battery charging duration, thus reducing maintenance cost. Furthermore the absence of brushes in themotor and the simpler motor structure increase system reliability.

      Tiller and controls
      Improved tiller with lifting/lowering proportional controls. Fully integrated system with throttle, safety pushbutton, horn, hourmeter, battery status indicator and turtle button.

      Maneuverability
      The overall width has the same size than the EuroPallet (800 mm) allow the unit to work in narrow spaces and corridors, increase maneuverability and reducing the turning radius.

      Visibility
      The wide mast and central driving position allow to have a great operator visibility.

      Battery compartment
      The separate battery compartment allow the installation of high capacity battery (225Ah - 300Ah). The battery inspection is easy and comfortable trought the battery cover with hinges. As option automatic battery refilling system can be supplied as the external high frequency battery charger that can be easilly plugged trough Anderson connector.

      Easy mantenance
      Removing the strong cover allow to have the access to electric and hydraulic system as to the motorwheel and stabilizing wheels.

      Operator platform
      The LX stacker can be equipped with cushioned stand-on foldable platform very useful for covering medium-sized distances and for intensive application.

      The images are purely indicative.
