      Drive: Electric
      Operator type: Pedestrian
      Load capacity: 1200 Kg
      Quantity rear wheels: 2
      Quantity front wheels: 1 driven + 1
      Height mast lowered: 2250 mm
      Normal free lifting: 80 mm
      Lift height: 3410 mm
      Overall lenght: 1760 mm
      Overall width: 800 mm
      Width fork: 150 mm
      Lenght fork: 1150 mm
      Distance between fork arms: 560 mm
      Aisle width: 2210 mm
      Turning radius: 1430 mm
      Travel speed laden: 4.7 Km/h
      Travel speed unladen: 5.2 Km/h
      Drive motor power: 0.7 KW

      List price
      6,259.82 € tax incl.
      5,131.00 € tax excl.
      Discounted Price
      6,259.82 € tax incl.
      5,131.00 € tax excl.
      Shipping Free to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: PRAMAC LIFTER ELECTRIC STACKER GX12/35 BASIC

      PERSONAL DATA


      Ask a question
      Product: PRAMAC LIFTER ELECTRIC STACKER GX12/35 BASIC
      Offer on letterhead
      Product: PRAMAC LIFTER ELECTRIC STACKER GX12/35 BASIC
      LIFTER
      HM712-HM51200B000

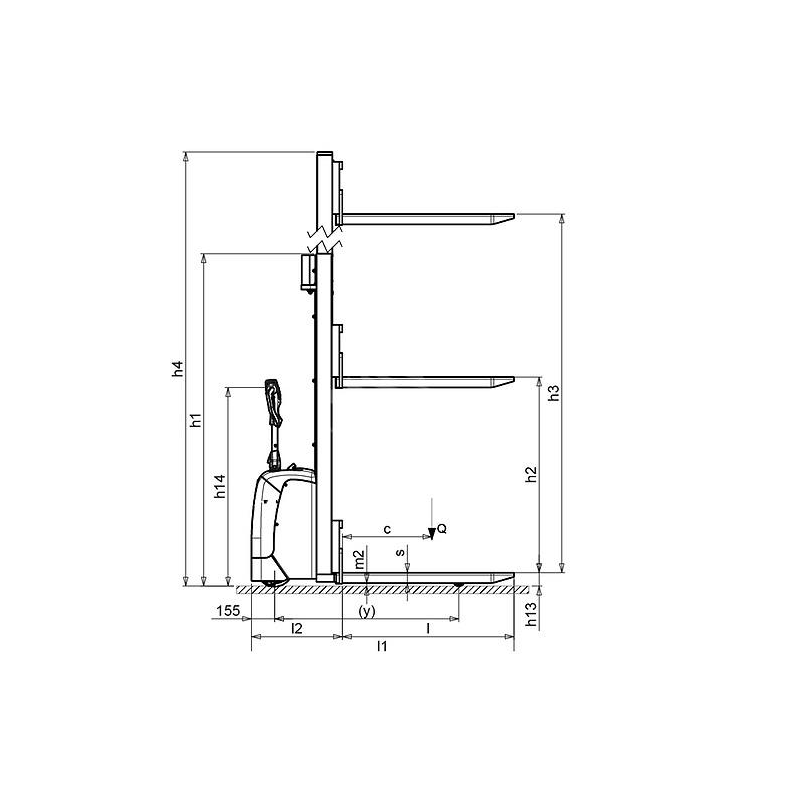

      Data sheet

      Drive
      Electric
      Operator type
      Pedestrian
      Load capacity (Kg)
      1200
      Load centre distance (mm)
      600
      Load axle to end forks (mm)
      780
      Wheel base (mm)
      1234
      Service weight (Kg)
      578
      Axle load, laden rear (Kg)
      1187
      Axle load, laden front (Kg)
      591
      Axle load, unladen front (Kg)
      416
      Axle load, unladen rear (Kg)
      162
      Tyres: front wheels
      RUBBER
      Tyres: stabilizers wheels
      POLY.C.
      Tyres: rear wheels
      POLY.C.
      Diameter steering wheels (mm)
      250
      Width steering wheels (mm)
      76
      Diameter load rollers (mm)
      82
      Width load rollers (mm)
      70
      Diameter stabilizers wheels front (mm)
      100
      Width stabilizers wheels front (mm)
      38
      Quantity rear wheels
      2
      Quantity front wheels
      1 driven + 1
      Tread front (mm)
      565
      Tread rear (mm)
      410
      Height mast lowered (mm)
      2250
      Normal free lifting (mm)
      80
      Lift height (mm)
      3410
      Height mast extended (mm)
      3916
      Height of tiller in drive position max (mm)
      1310
      Height of tiller in drive position min (mm)
      915
      Height lowered (mm)
      90
      Overall lenght (mm)
      1760
      Lenght to face of forks (mm)
      609
      Overall width (mm)
      800
      Thickness fork (mm)
      70
      Width fork (mm)
      150
      Lenght fork (mm)
      1150
      Fork carriage width (mm)
      650
      Distance between fork arms (mm)
      560
      Ground clearance at centre of wheelbase (mm)
      20

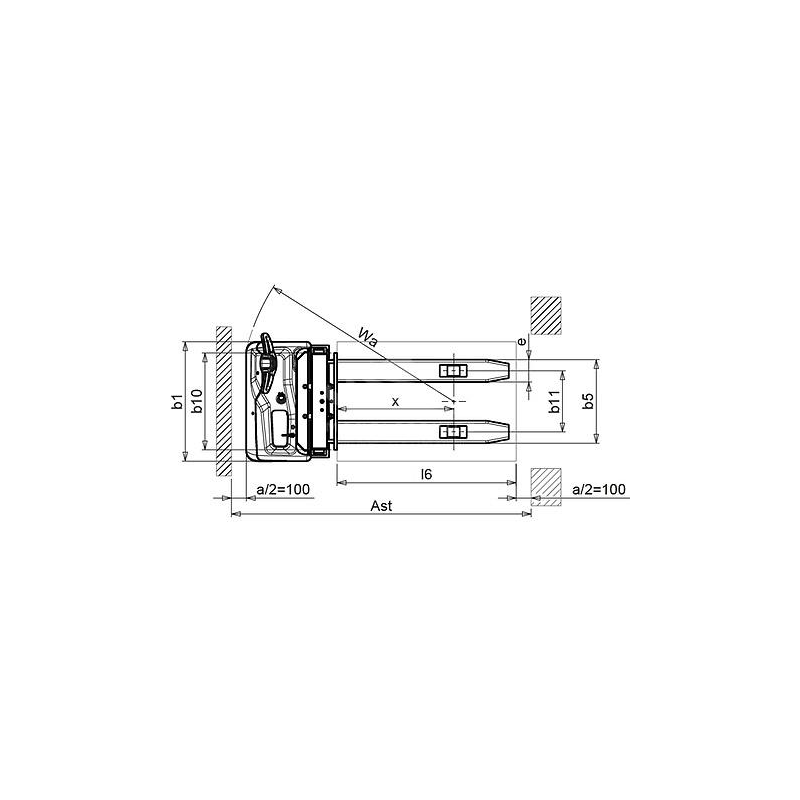

      Aisle width (mm)
      2210
      Turning radius (mm)
      1430
      Travel speed laden (Km/h)
      4.7
      Travel speed unladen (Km/h)
      5.2
      Lifting speed laden (m/s)
      0.11
      Lifting speed unladen (m/s)
      0.19
      Lowering speed laden (m/s)
      0.12
      Lowering speed unladen (m/s)
      0.15
      Max gradeability laden (%)
      5
      Max gradeability unladen (%)
      10
      Service brake
      Electric
      Drive motor power (KW)
      0.7
      Lift motor power (KW)
      2.2
      Battery voltage (V)
      24
      Battery capacity min (Ah)
      85
      Battery capacity max (Ah)
      85
      Battery weight min (Kg)
      34
      Battery weight max (Kg)
      100
      Energy consumption according to VDI cycle (KWh/h)
      0.9
      Sound level at driver's ear
      62
      Type of lifting
      Electric

      Specific References

      New

      This compact sized stacker, powerful and reliable, is the ideal solution to work in confined spaces. The Duplex mast allows a lifting capacity from 2500 up to 3500 mm with a FreeLift version available. The reduced width (800 mm), the lateral driving system and the wide mast positioning assure great manoeuvrability, stability and visibility. The built in battery and charger with integrated cable and plug make the GX Series a plug and play unit.
      The BASIC version is equipped with a starting type battery, a tiller made with metal tube and ergonomic controls. This configuration is the best value for money choice.

      Manoeuvrability
      The overall width has the same size as the EuroPallet (800 mm) allow the unit to work in narrow spaces and corridors, increase maneuverability and reducing the turning radius.
      The combination of the lateral drive, the wide mast and the low cover offer outstanding visibility.

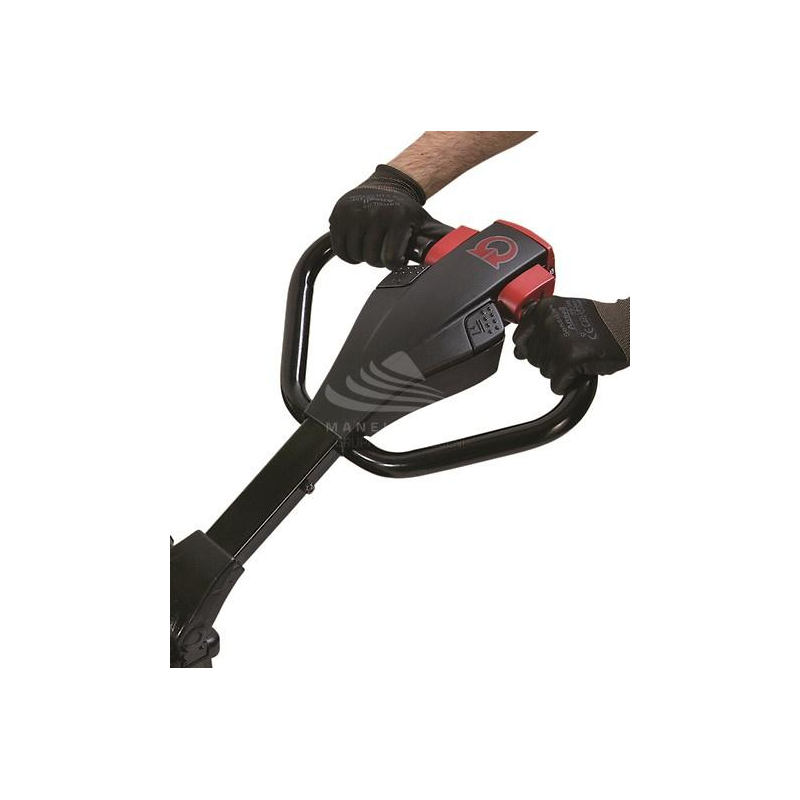

      Tiller BASIC
      Fully integrated ergonomic tiller system including finger tip throttle and fork controls, safety pushbutton, horn, and turtle button is the standard eqiipment of the GX BASIC.

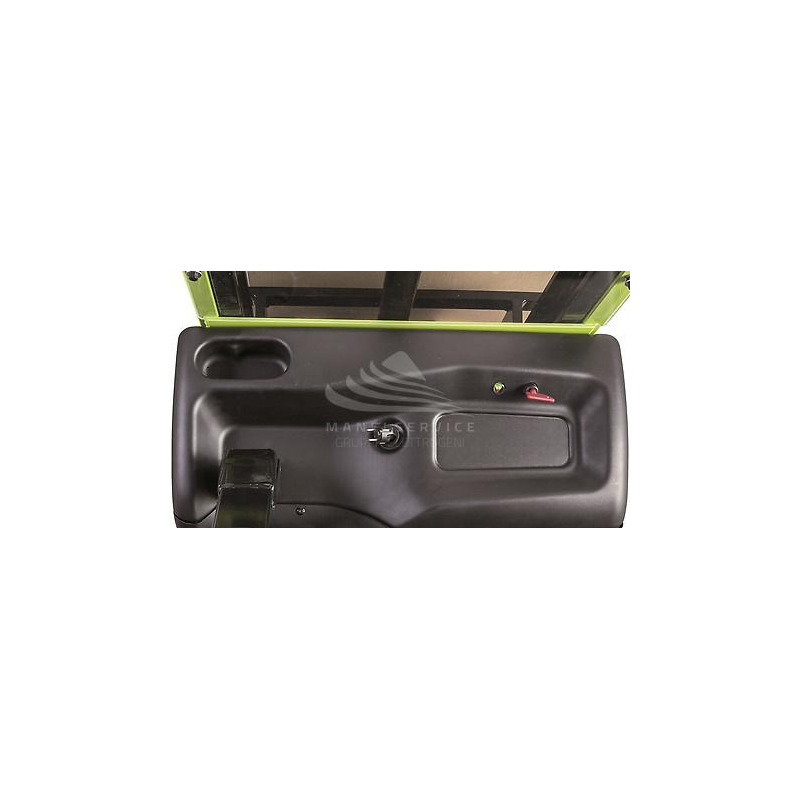

      Cover
      Strong ABS cover with storage compartments on top, easily removable to speed up maintenance operations. The bottom access opening allows an immediate disassembly of motor wheel, portal and tiller without lifting the machine. Schuko plug with spiral cable for an easy battery charging.

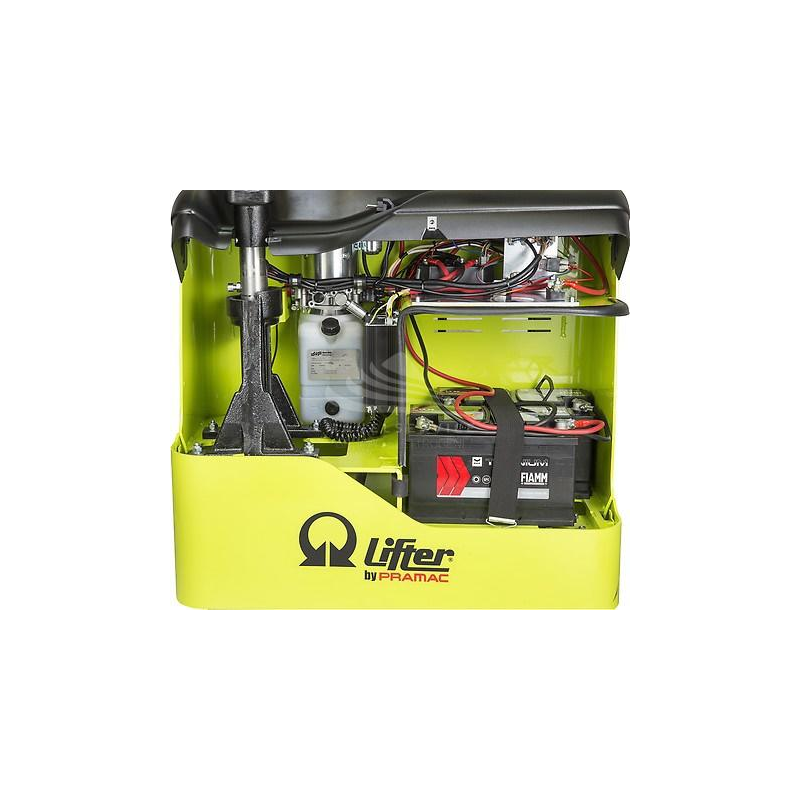

      Battery pack BASIC
      The separate battery compartment is the housing of starting batteries on BASIC. Such batteries are lightweight and inexpensive and is the ideal application for the discontinuos use.



      The images are purely indicative.
