      Drive: Electric
      Operator type: Pedestrian
      Load capacity: 1000 Kg
      Quantity rear wheels: 2
      Height mast lowered: 1970 mm
      Normal free lifting: 1510 mm
      Lift height: 1510 mm
      Overall lenght: 1675 mm
      Overall width: 794 mm
      Width fork: 150 mm
      Lenght fork: 1153 mm
      Distance between fork arms: 560 mm
      Aisle width: 2120 mm
      Turning radius: 1344 mm
      Travel speed laden: 3.7 Km/h
      Travel speed unladen: 4.3 Km/h
      Drive motor power: 0.35 KW

      List price
      7,065.14 € tax incl.
      5,791.10 € tax excl.
      Discounted Price
      7,065.14 € tax incl.
      5,791.10 € tax excl.
      Shipping Free to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: PRAMAC LIFTER ELECTRIC STACKER RX10/16 EVO LI-ION

      PERSONAL DATA


      Ask a question
      Product: PRAMAC LIFTER ELECTRIC STACKER RX10/16 EVO LI-ION
      Offer on letterhead
      Product: PRAMAC LIFTER ELECTRIC STACKER RX10/16 EVO LI-ION
      LIFTER
      HI310L0P000

      Data sheet

      Drive
      Electric
      Operator type
      Pedestrian
      Load capacity (Kg)
      1000
      Load centre distance (mm)
      600
      Load axle to end forks (mm)
      786
      Wheel base (mm)
      1165
      Service weight (Kg)
      371
      Axle load, laden rear (Kg)
      937
      Axle load, laden front (Kg)
      434
      Axle load, unladen front (Kg)
      269
      Axle load, unladen rear (Kg)
      102
      Tyres: front wheels
      RUBBER
      Tyres: stabilizers wheels
      POLY.C.
      Tyres: rear wheels
      POLY.C.
      Diameter steering wheels (mm)
      186
      Width steering wheels (mm)
      50
      Diameter load rollers (mm)
      82
      Width load rollers (mm)
      70
      Diameter stabilizers wheels front (mm)
      125
      Width stabilizers wheels front (mm)
      45
      Quantity rear wheels
      2
      Tread front (mm)
      505
      Tread rear (mm)
      410
      Height mast lowered (mm)
      1970
      Normal free lifting (mm)
      1510
      Lift height (mm)
      1510
      Height mast extended (mm)
      1970
      Height of tiller in drive position max (mm)
      1365
      Height of tiller in drive position min (mm)
      930
      Height lowered (mm)
      90
      Overall lenght (mm)
      1675
      Lenght to face of forks (mm)
      522
      Overall width (mm)
      794
      Thickness fork (mm)
      60
      Width fork (mm)
      150
      Lenght fork (mm)
      1153
      Fork carriage width (mm)
      650
      Distance between fork arms (mm)
      560
      Ground clearance at centre of wheelbase (mm)
      20
      Aisle width (mm)
      2120
      Turning radius (mm)
      1344
      Travel speed laden (Km/h)
      3.7
      Travel speed unladen (Km/h)
      4.3
      Lifting speed laden (m/s)
      0.11
      Lifting speed unladen (m/s)
      0.18
      Lowering speed laden (m/s)
      0.18
      Lowering speed unladen (m/s)
      0.18
      Max gradeability laden (%)
      9
      Max gradeability unladen (%)
      25
      Service brake
      Electric
      Drive motor power (KW)
      0.35
      Lift motor power (KW)
      2.2
      Battery voltage (V)
      24
      Battery capacity min (Ah)
      54
      Battery capacity max (Ah)
      54
      Battery weight min (Kg)
      38
      Battery weight max (Kg)
      38
      Energy consumption according to VDI cycle (KWh/h)
      0.45
      Sound level at driver's ear
      63
      Type of lifting
      Electric

      Specific References

      New

      PRAMAC LIFTER ELECTRIC STACKER RX10/16 EVO LI-ION: Compact Efficiency for Material Handling

      The PRAMAC LIFTER ELECTRIC STACKER RX10/16 EVO LI-ION is a marvel of engineering designed to enhance efficiency and safety in material handling. This pedestrian-operated electric stacker is the epitome of compact design and ergonomic innovation, tailored for procedures requiring a load capacity of up to 1000 Kg and a lift height of up to 1510 mm. Ideal for distribution and manufacturing environments, the PRAMAC LIFTER ELECTRIC STACKER RX10/16 EVO LI-ION prioritizes operator comfort, low maintenance costs, and versatile application.

      Drive and Performance:
      Equipped with an electric drive and boasting a modest drive motor power of 0.35 KW, the PRAMAC LIFTER RX10/16 ensures smooth and efficient procedures. With travel speeds of up to 4.3 Km/h when unladen and 3.7 Km/h when carrying a load, it combines speed with stability for optimal performance.

      Compact and Ergonomic Design:

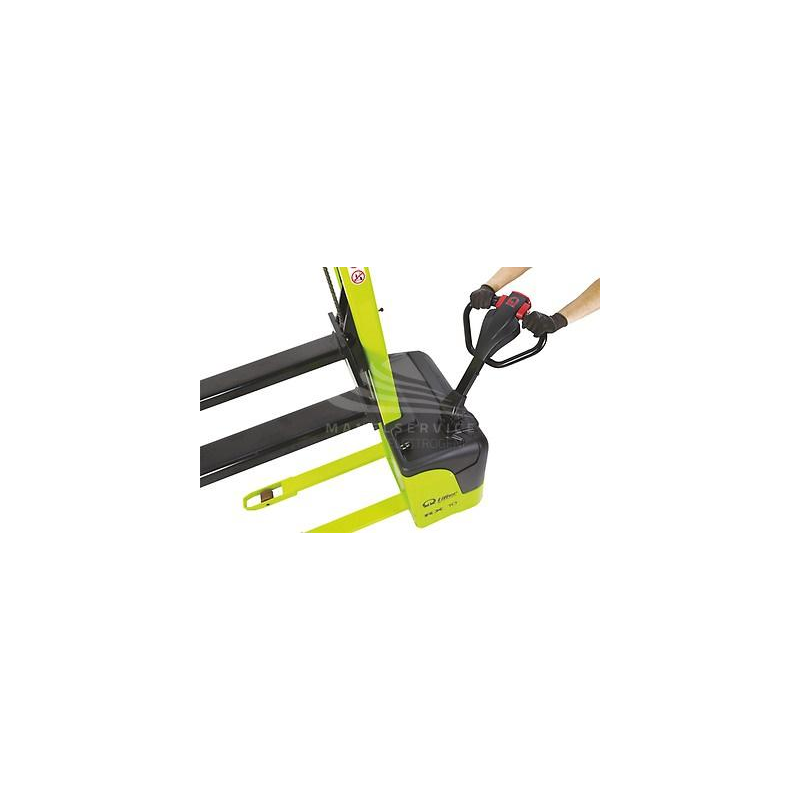

      Measuring 1675 mm in length and 794 mm in width, with a turning radius of just 1344 mm, this loader is designed to navigate narrow spaces and corridors effortlessly. The ergonomic tiller, placed laterally, enhances visibility and ensures an optimal arrangement of components, facilitating the handling of goods in tight areas.

      Versatility and Ease of Use:
      The PRAMAC LIFTERRX10/16 excels in versatility, capable of moving palletized goods horizontally and serving as an adjustable workstation to reduce operator strain. The fork design, with a thickness of 60 mm, ensures easy entry into pallets, making it an invaluable tool in various operational settings.

      Maintenance Made Simple:

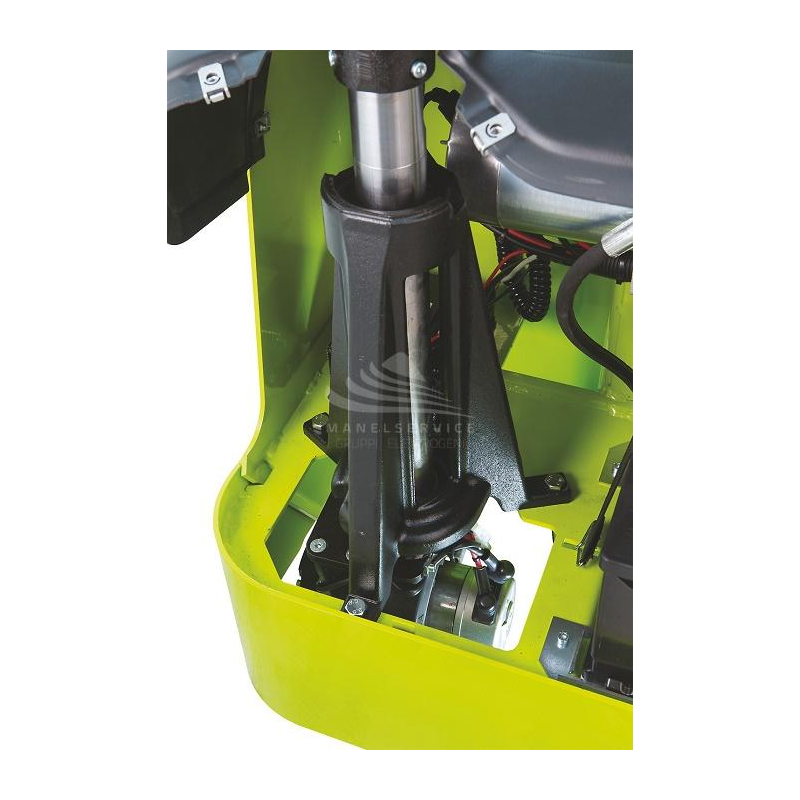

      Featuring a robust ABS cover with storage compartments, the loader is engineered for easy maintenance. Quick access to the motor wheel, portal, and tiller without the need for lifting the machine simplifies upkeep and reduces downtime.

      Advanced Battery Technology:

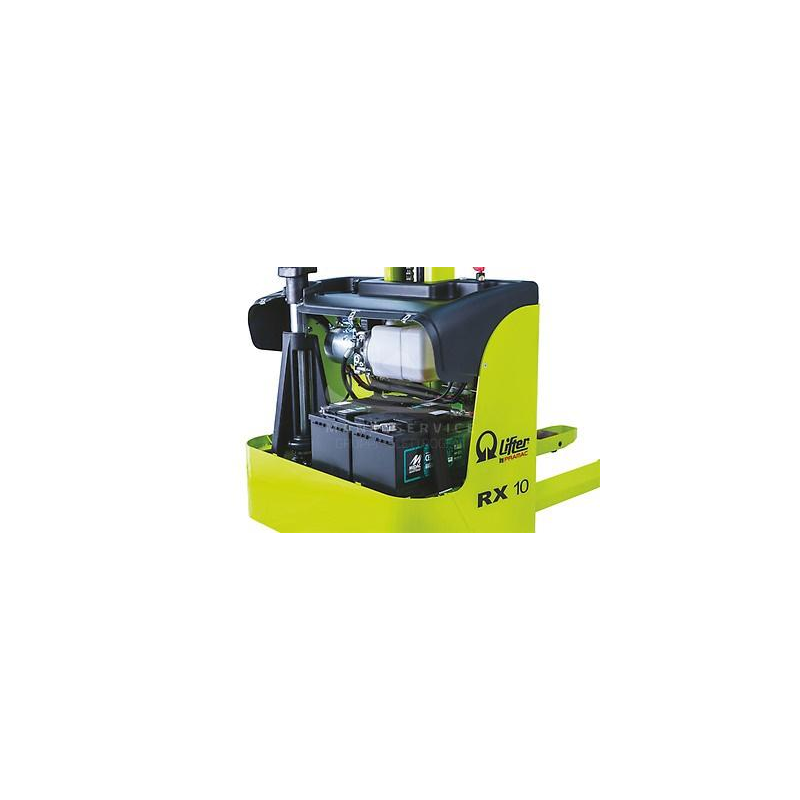

      Powered by light-traction PRAMAC LIFTER EVO or optional GEL batteries, the RX10/16 offers up to 3 hours of autonomy (4 hours with the EVO battery), ensuring prolonged procedure and reliability. This lightweight, cost-effective battery pack is a testament to the stacker's efficiency and sustainability.

      In conclusion, the PRAMAC LIFTER RX10/16 EVO LI-ION redefines material handling with its compact size, ergonomic design, and versatile functionality. It stands as a perfect choice for businesses seeking a reliable, efficient, and user-friendly solution for their material handling needs, ensuring safety and productivity in even the most constrained environments.
