      Drive: Manual
      Operator type: Pedestrian
      Load capacity: 1200 Kg
      Quantity rear wheels: 2
      Height mast lowered: 1980 mm
      Normal free lifting: 80 mm
      Lift height: 3410 mm
      Overall lenght: 1850 mm
      Overall width: 850 mm
      Width fork: 150 mm
      Lenght fork: 1150 mm
      Distance between fork arms: 560 mm
      Aisle width: 2540 mm
      Turning radius: 1760 mm

      List price
      5,379.35 € tax incl.
      4,409.30 € tax excl.
      Discounted Price
      5,379.35 € tax incl.
      4,409.30 € tax excl.
      Shipping from 135.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: PRAMAC LIFTER SEMI-ELECTRIC STACKER TX12/35

      PERSONAL DATA


      Ask a question
      Product: PRAMAC LIFTER SEMI-ELECTRIC STACKER TX12/35
      Offer on letterhead
      Product: PRAMAC LIFTER SEMI-ELECTRIC STACKER TX12/35
      LIFTER
      HA712000000

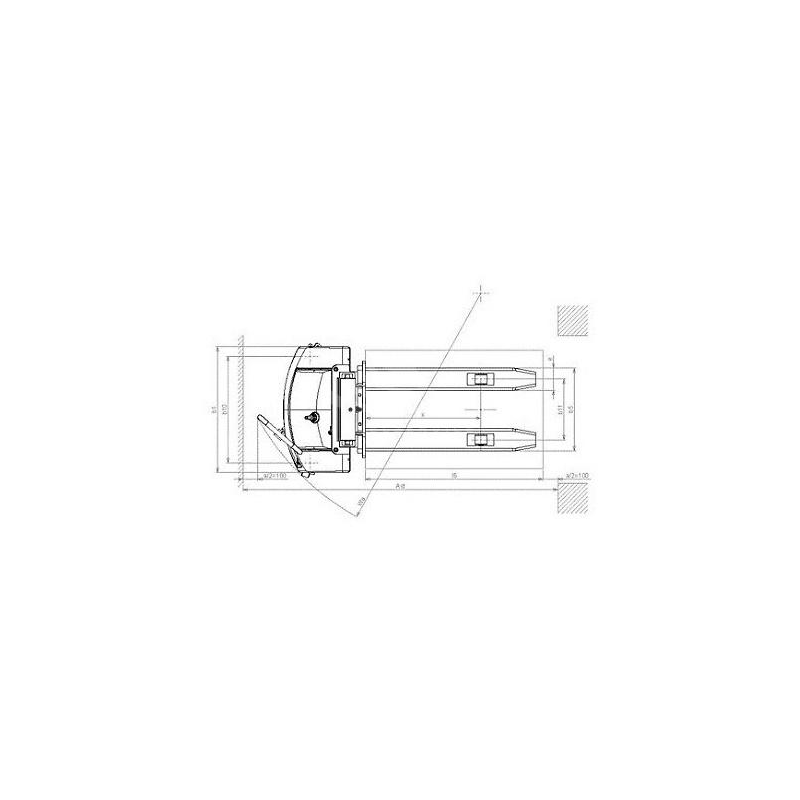

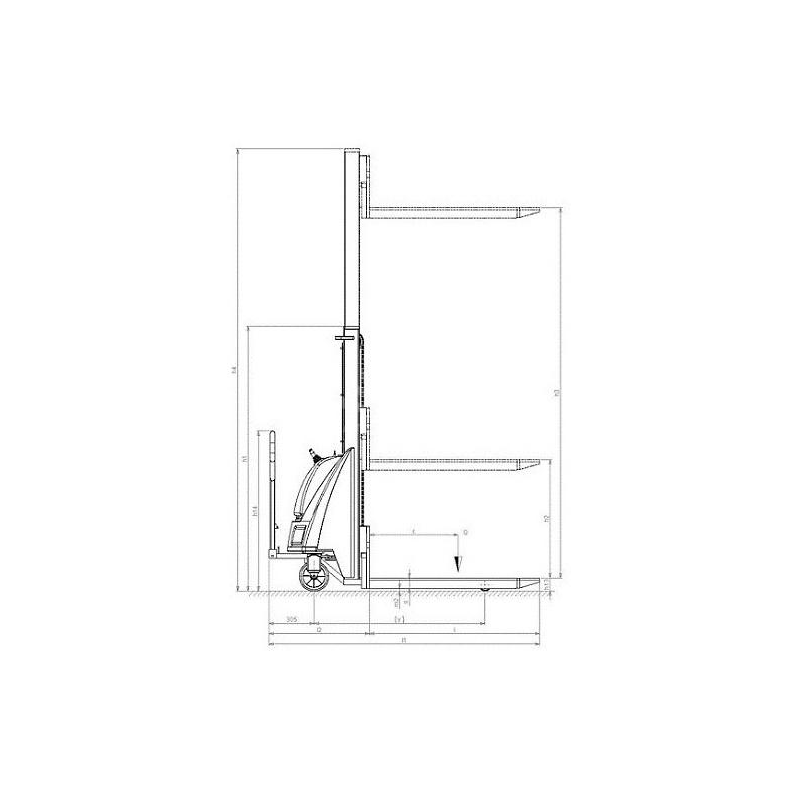

      Data sheet

      Drive
      Manual
      Operator type
      Pedestrian
      Load capacity (Kg)
      1200
      Load centre distance (mm)
      600
      Load axle to end forks (mm)
      780
      Wheel base (mm)
      1155
      Service weight (Kg)
      474
      Axle load, laden rear (Kg)
      1137
      Axle load, laden front (Kg)
      537
      Axle load, unladen front (Kg)
      345
      Axle load, unladen rear (Kg)
      129
      Tyres: stabilizers wheels
      POLY.C.
      Tyres: rear wheels
      NYLON
      Diameter load rollers (mm)
      82
      Width load rollers (mm)
      70
      Diameter stabilizers wheels front (mm)
      200
      Width stabilizers wheels front (mm)
      50
      Quantity rear wheels
      2
      Tread front (mm)
      720
      Tread rear (mm)
      410
      Height mast lowered (mm)
      2250
      Normal free lifting (mm)
      80
      Lift height (mm)
      3410
      Height mast extended (mm)
      3915
      Height of tiller in drive position max (mm)
      1080
      Height lowered (mm)
      90
      Overall lenght (mm)
      1850
      Lenght to face of forks (mm)
      700
      Overall width (mm)
      850
      Thickness fork (mm)
      70
      Width fork (mm)
      150
      Lenght fork (mm)
      1150
      Fork carriage width (mm)
      650
      Distance between fork arms (mm)
      560
      Ground clearance at centre of wheelbase (mm)
      20
      Aisle width (mm)
      2540
      Turning radius (mm)
      1760
      Lifting speed laden (m/s)
      0.09
      Lifting speed unladen (m/s)
      0.12
      Lowering speed laden (m/s)
      0.4
      Lowering speed unladen (m/s)
      0.1
      Lift motor power (KW)
      2.2
      Battery voltage (V)
      24
      Battery capacity min (Ah)
      74
      Battery capacity max (Ah)
      74
      Battery weight min (Kg)
      36
      Battery weight max (Kg)
      36
      Sound level at driver's ear
      67
      Type of lifting
      Electric

      Specific References

      New

      The TX Series are characterized by manual traction and electrohydraulic lifting technology. These stackers are very steady and are suitable for lifting very heavy loads safely. Version 12 (1.2 t) includes polyurethane wheels as standard to reduce resistance and effort required even with full load capacity.

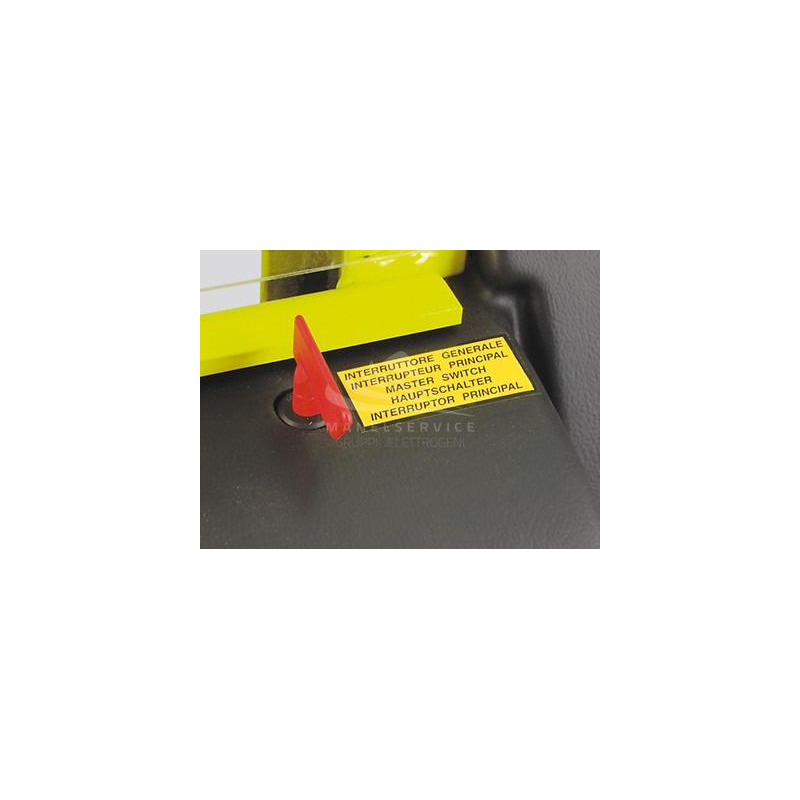

      Start key and battery cut-off (isolator) switch
      The start key on the TX stacker performs a double function:
      - switches the stacker on/off;
      - is an emergency control, i.e. it completely stops battery power supply and thus prevents the lifting of forks.

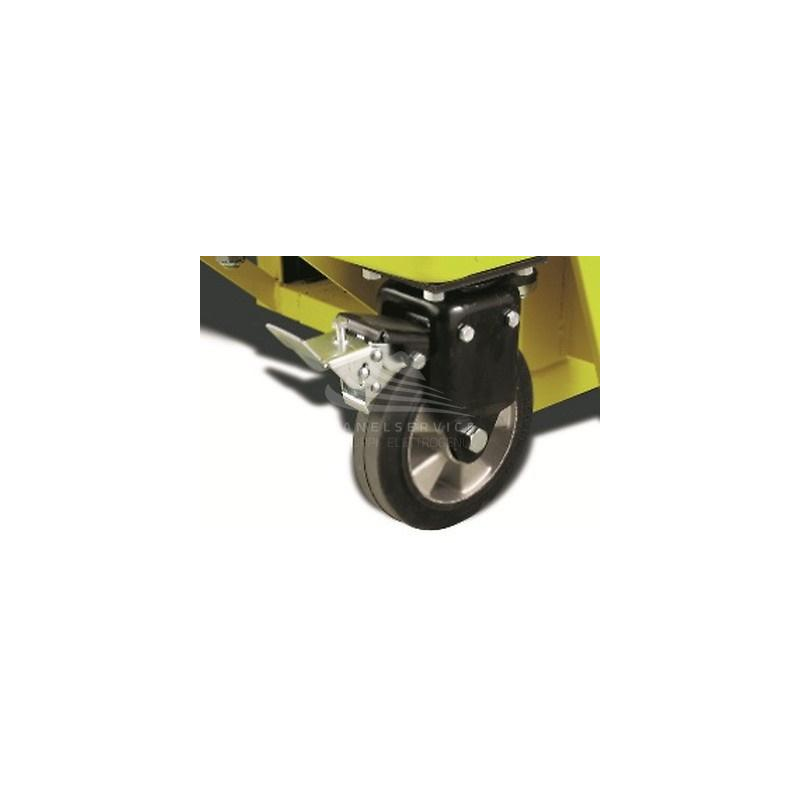

      Foot brake
      The foot brake, which is available on the MX and TX machines, performs the parking brake function.

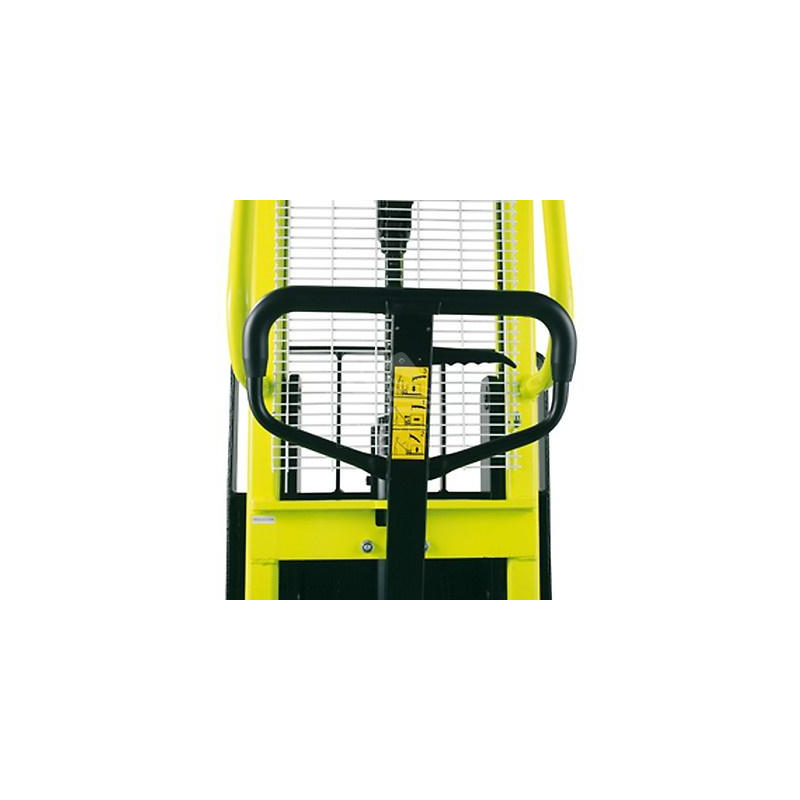

      Tiller
      The plastic cover increases the ergonomic character of the handle thus rendering the raising and transport operations even ''lighter''.
      The 3-position control lever (down, neutral, up) is positioned on the steering wheel to foster manoeuvrability.

      Adjustable buffers
      The TX 12 version is equipped with adjustable buffers that minimize possible oscillation during lifting.

      The images are purely indicative.
