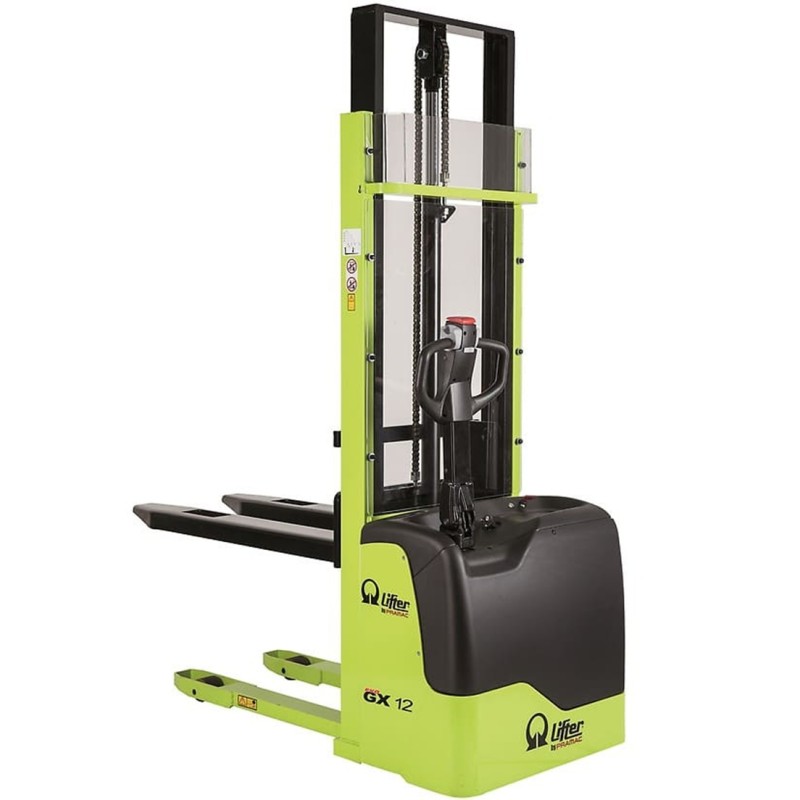

PRAMAC LIFTER GX12-42EVO GEL24V-105Ah Electric Stacker

Name: PRAMAC LIFTER GX12-42EVO GEL24V-105Ah Electric Stacker
Brand: PRAMAC
SKU: HUW1230P000
Price: 9596.07 EUR
Availability: InStock

Reference HUW1230P000

Drive: Electric
Operator type: Pedestrian
Load capacity: 1200 Kg
Quantity rear wheels: 2
Quantity front wheels: 1 driven + 1
Height mast lowered: 2250 mm
Normal free lifting: 80 mm
Lift height: 3410 mm
Overall lenght: 1760 mm
Overall width: 800 mm
Width fork: 150 mm
Lenght fork: 1150 mm
Distance between fork arms: 560 mm
Aisle width: 2210 mm
Turning radius: 1430 mm
Travel speed laden: 4.7 Km/h
Travel speed unladen: 5.2 Km/h
Drive motor power: 0.7 KW

List price

12,428.14 € tax incl.

10,187.00 € tax excl.

Discounted Price

9,596.07 € tax incl.

7,865.63 € tax excl.

Shipping from 229.36 € to Italy buy it today. tax incl.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference HUW1230P000

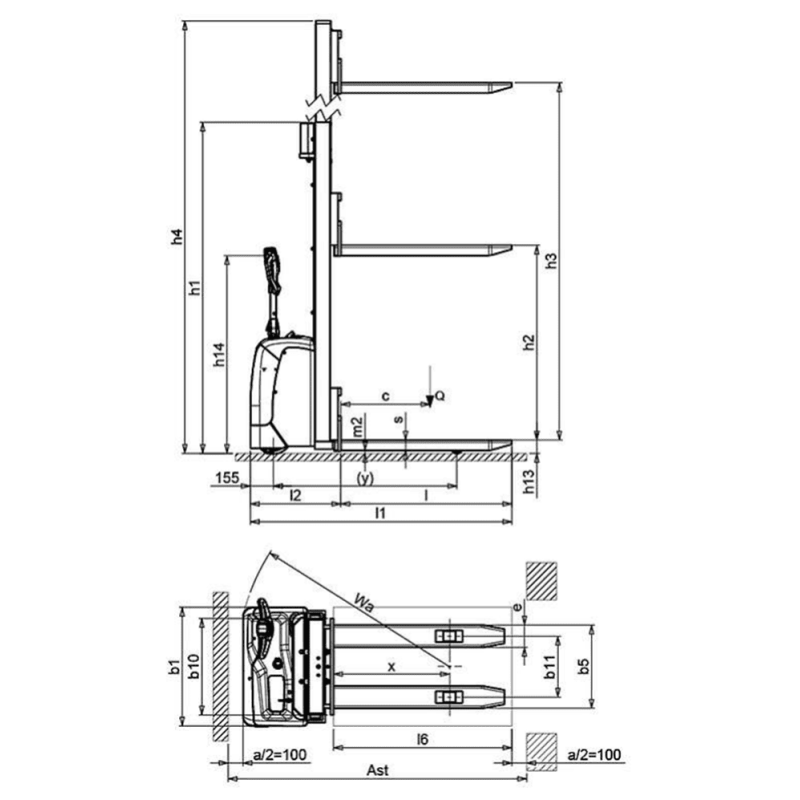

Data sheet

Drive: Electric
Operator type: Pedestrian
Load capacity (Kg): 1200
Load centre distance (mm): 600
Load axle to end forks (mm): 780
Wheel base (mm): 1234
Service weight (Kg): 644
Axle load, laden rear (Kg): 1173
Axle load, laden front (Kg): 671
Axle load, unladen front (Kg): 471
Axle load, unladen rear (Kg): 173
Tyres: front wheels: POLY
Tyres: stabilizers wheels: POLY.C.
Tyres: rear wheels: POLY.C.
Diameter steering wheels (mm): 250
Width steering wheels (mm): 76
Diameter load rollers (mm): 82
Width load rollers (mm): 70
Diameter stabilizers wheels front (mm): 100
Width stabilizers wheels front (mm): 38
Quantity rear wheels: 2
Quantity front wheels: 1 driven + 1
Tread front (mm): 565
Tread rear (mm): 410
Height mast lowered (mm): 2600
Normal free lifting (mm): 80
Lift height (mm): 4110
Height mast extended (mm): 4616
Height of tiller in drive position max (mm): 1330
Height of tiller in drive position min (mm): 960
Height lowered (mm): 90
Overall lenght (mm): 1760
Lenght to face of forks (mm): 609
Overall width (mm): 800
Thickness fork (mm): 70
Width fork (mm): 150
Lenght fork (mm): 1150
Fork carriage width (mm): 650
Distance between fork arms (mm): 560
Ground clearance at centre of wheelbase (mm): 20
Aisle width (mm): 2210
Turning radius (mm): 1430
Travel speed laden (Km/h): 4.7
Travel speed unladen (Km/h): 5.2
Lifting speed laden (m/s): 0.11
Lifting speed unladen (m/s): 0.19
Lowering speed laden (m/s): 0.25
Lowering speed unladen (m/s): 0.30
Max gradeability laden (%): 5
Max gradeability unladen (%): 10
Service brake: Electric
Drive motor power (KW): 0.7
Lift motor power (KW): 2.2
Battery voltage (V): 24
Battery capacity min (Ah): 105
Battery capacity max (Ah): 105
Battery weight min (Kg): 78
Battery weight max (Kg): 78
Energy consumption according to VDI cycle (KWh/h): 0.9
Sound level at driver's ear: 62
Type of lifting: Electric
Battery type: GEL

Specific References

PRAMAC LIFTER GX12-42EVO GEL24V-105Ah ELECTRIC STACKER

The PRAMAC LIFTER GX12-42EVO GEL24V-105Ah Electric Stacker is the ideal solution for those who need a compact, powerful, and reliable stacker to work efficiently in confined spaces. With a total width of only 800 mm, an ergonomic side tiller, and wide masts, it offers excellent maneuverability and optimal visibility during every operation.

The PRAMAC LIFTER GX12-42EVO GEL24V-105Ah Electric Stacker is equipped with 24V 105Ah GEL maintenance-free batteries that ensure long life, a high number of charge cycles, and protection against deep discharges. The integrated charger with Schuko plug and spiral cable allows for convenient and safe charging, making this unit an extremely practical plug & play system.

The compact structure of the PRAMAC LIFTER GX12-42EVO GEL24V-105Ah Electric Stacker allows handling loads up to 1200 kg with a maximum lifting height of 4200 mm. The powerful 2.2 kW lifting motor and 0.7 kW traction motor guarantee excellent performance, while the electric brake system ensures safety and precision during load handling.

Main Features – PRAMAC LIFTER GX12-42EVO:
Drive type: Electric
Control type: Walk-behind
Load capacity: 1200 Kg
Rear wheels: 2
Front wheels: 1 drive + 1
Closed mast height: 2600 mm
Free lift: 80 mm
Lifting height: 4110 mm
Total length: 1760 mm
Total width: 800 mm
Fork width: 150 mm
Fork length: 1150 mm
Width between forks: 560 mm
Storage aisle width: 2210 mm
Turning radius: 1430 mm
Travel speed with load: 4.7 Km/h
Travel speed without load: 5.2 Km/h
Traction motor power: 0.7 kW

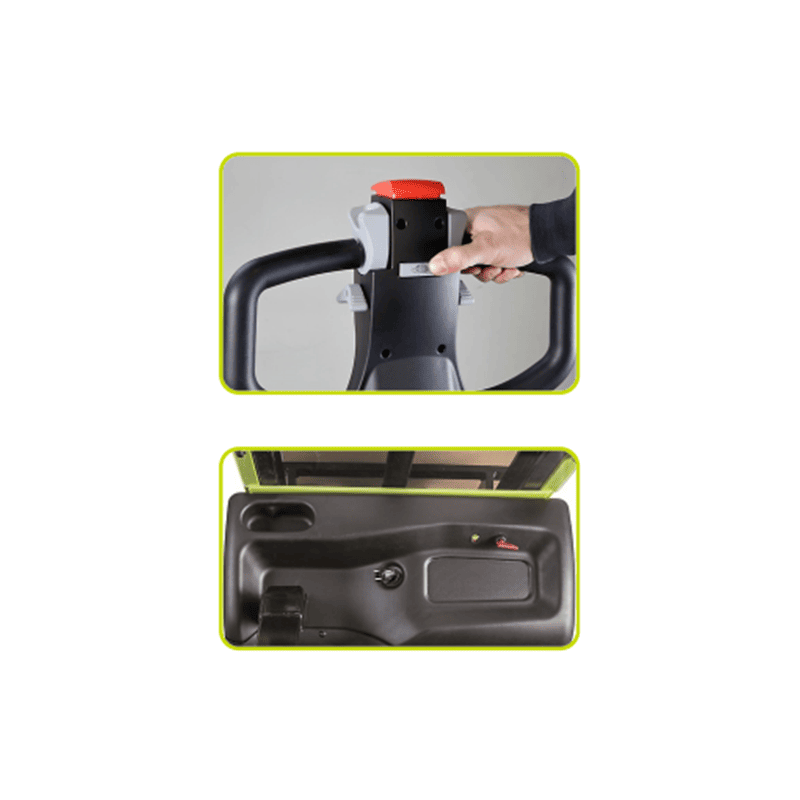

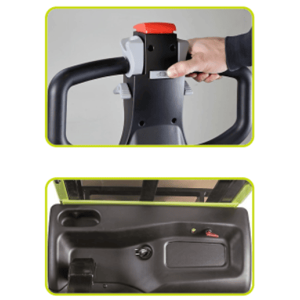

Ergonomic technopolymer tiller with proportional controls, horn, hour counter display, and battery status indicator.
“Turtle mode” function for precise movements in tight spaces, even with the tiller in a vertical position.
ABS cover with document compartment, easily removable to simplify maintenance.

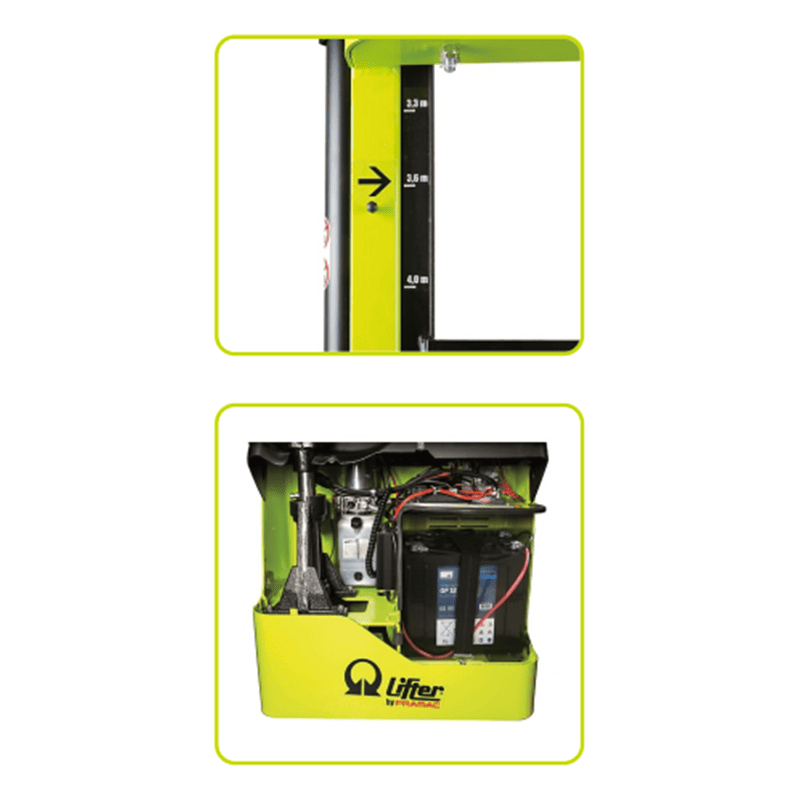

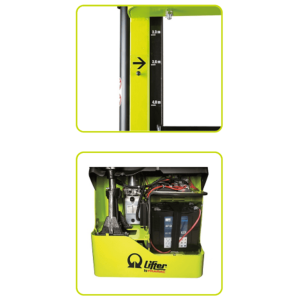

Mast with height indicator for perfect visibility and total control during fork lifting.

Thanks to its robust and compact design, the PRAMAC LIFTER GX12-42EVO GEL24V-105Ah Electric Stacker is perfectly suited for warehouses, logistics centers, and production areas where efficiency, safety, and reliability are essential. With a noise level of only 62 dBA and low energy consumption (0.9 kWh/h), it is an efficient, quiet, and sustainable machine.

Are you looking for a forklift similar to the PRAMAC LIFTER GX12-42EVO GEL24V-105Ah but with different features? CLICK HERE to explore our full range.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
