      Propulsion Type: Electric
      Driving System: Accompaniment
      Load capacity: 1000 Kg
      Rear wheels quantity: 2
      Front wheels quantity: 1 drive + 1
      Closed mast height: 1994 mm
      Free lift: 1370 mm
      Lifting height: 4110 mm
      Total length: 1800 mm
      Total width: 800 mm
      Fork width: 150 mm
      Fork length: 1150 mm
      Width between forks: 560 mm
      Storage corridor: 2240 mm
      Turning radius: 1430 mm
      Travel speed with load: 4. 7 Km/h
      Travel speed without load: 5.2 Km/h
      Traction motor power: 0.7 KW

      List price
      12,325.66 € tax incl.
      10,103.00 € tax excl.
      Discounted Price
      12,325.66 € tax incl.
      10,103.00 € tax excl.
      Shipping from 425.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: PRAMAC LIFTER GX 10/42 TRIPLEX EVO GEL ELECTRIC STACKER

      PERSONAL DATA


      Ask a question
      Product: PRAMAC LIFTER GX 10/42 TRIPLEX EVO GEL ELECTRIC STACKER
      Offer on letterhead
      Product: PRAMAC LIFTER GX 10/42 TRIPLEX EVO GEL ELECTRIC STACKER
      LIFTER
      HMW1030T000

      Data sheet

      Drive
      Electric
      Operator type
      Pedestrian
      Load capacity (Kg)
      1200
      Load centre distance (mm)
      600
      Load axle to end forks (mm)
      780
      Wheel base (mm)
      1234
      Service weight (Kg)
      618
      Axle load, laden rear (Kg)
      1187
      Axle load, laden front (Kg)
      631
      Axle load, unladen front (Kg)
      456
      Axle load, unladen rear (Kg)
      162
      Tyres: front wheels
      RUBBER
      Tyres: stabilizers wheels
      POLY.C.
      Tyres: rear wheels
      POLY.C.
      Diameter steering wheels (mm)
      250
      Width steering wheels (mm)
      76
      Diameter load rollers (mm)
      82
      Width load rollers (mm)
      70
      Diameter stabilizers wheels front (mm)
      100
      Width stabilizers wheels front (mm)
      38
      Quantity rear wheels
      2
      Quantity front wheels
      1 driven + 1
      Tread front (mm)
      565
      Tread rear (mm)
      410
      Height mast lowered (mm)
      2250
      Normal free lifting (mm)
      80
      Lift height (mm)
      3410
      Height mast extended (mm)
      3916
      Height of tiller in drive position max (mm)
      1330
      Height of tiller in drive position min (mm)
      960
      Height lowered (mm)
      90
      Overall lenght (mm)
      1760
      Lenght to face of forks (mm)
      609
      Overall width (mm)
      800
      Thickness fork (mm)
      70
      Width fork (mm)
      150
      Lenght fork (mm)
      1150
      Fork carriage width (mm)
      650
      Distance between fork arms (mm)
      560
      Ground clearance at centre of wheelbase (mm)
      20
      Aisle width (mm)
      2210
      Turning radius (mm)
      1430
      Travel speed laden (Km/h)
      4.7
      Travel speed unladen (Km/h)
      5.2
      Lifting speed laden (m/s)
      0.11
      Lifting speed unladen (m/s)
      0.19
      Lowering speed laden (m/s)
      0.25
      Lowering speed unladen (m/s)
      0.30
      Max gradeability laden (%)
      5
      Max gradeability unladen (%)
      10
      Service brake
      Electric
      Drive motor power (KW)
      0.7
      Lift motor power (KW)
      2.2
      Battery voltage (V)
      24
      Battery capacity min (Ah)
      118
      Battery capacity max (Ah)
      118
      Battery weight min (Kg)
      34
      Battery weight max (Kg)
      100
      Energy consumption according to VDI cycle (KWh/h)
      0.9
      Sound level at driver's ear
      62
      Type of lifting
      Electric

      Specific References

      New

      PRAMAC LIFTER GX 10/42 TRIPLEX EVO GEL ELECTRIC STACKER

      PRAMAC LIFTER GX 10/42 TRIPLEX is a compact, powerful and robust forklift truck, ideal for working in confined spaces, thanks to the reduced width (800 mm), the side drawbar and wide uprights allow great maneuverability, stability and visibility.

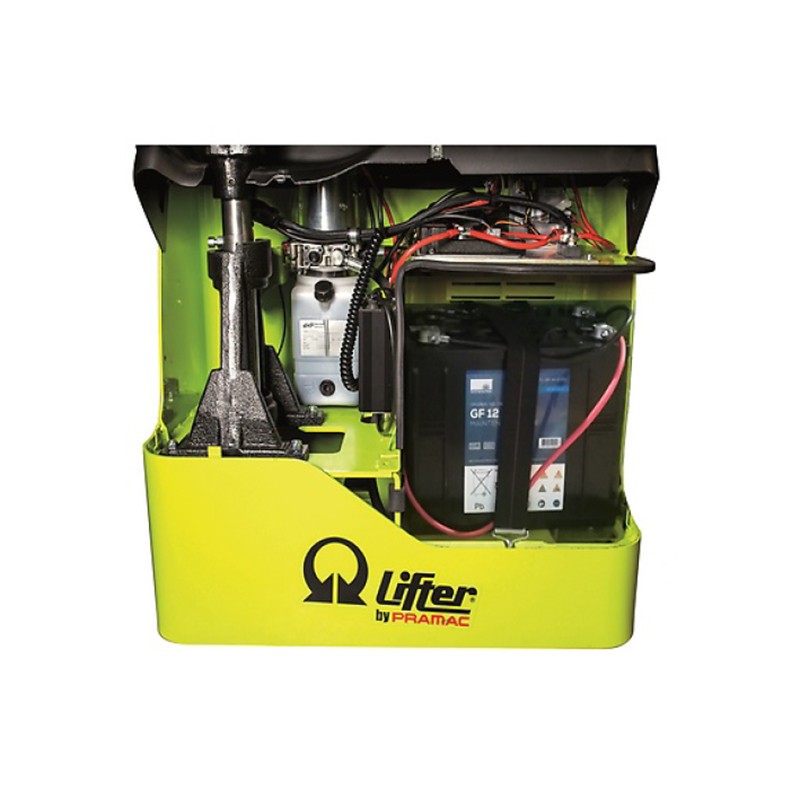

      PRAMAC LIFTER GX 10/42 can be used in a wide range of applications that require powerful lifting solutions: thanks to the three-stage telescopic mast, it is possible to stack goods even over 4 meters high. It is equipped with maintenance-free GEL batteries that allow for a long service life and a large number of recharging cycles.

      A specific electronic control allows stacker with proportional use. This PRAMAC LIFTER GX10/42 forklift truck is equipped with an integrated Plug&Play charger with cable and plug to facilitate the charging process and increase efficiency.

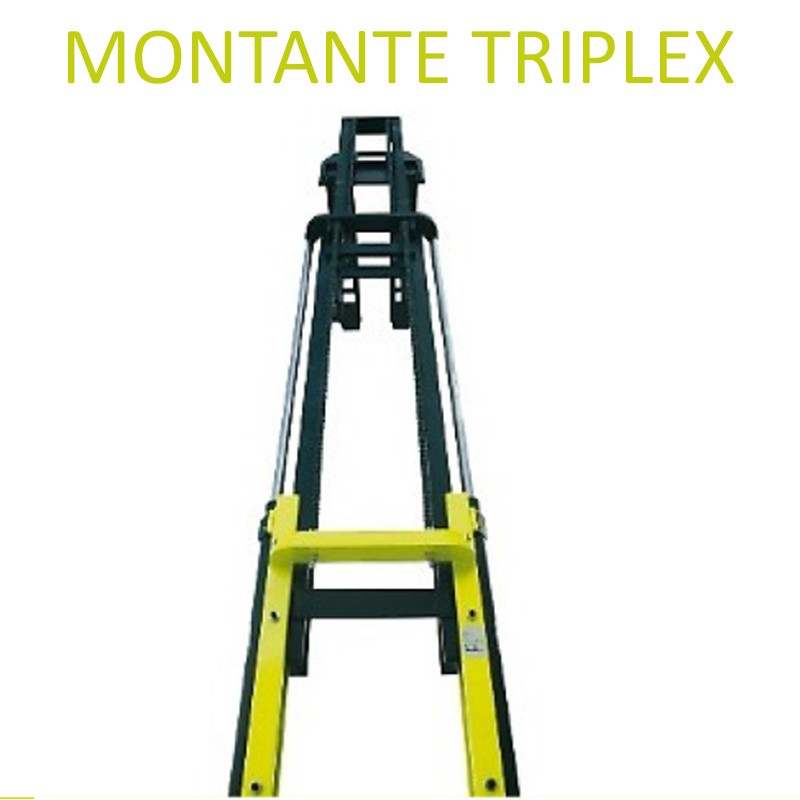

      The TRIPLEX mast features three stacker stages capable of reaching considerable heights without compromising the operator's good visibility.

      The combination of the three TRIPLEX stages with two side cylinders and a central cylinder allows free stacker without increasing the vertical footprint when the mast is closed, in order to work in containers or environments with low height.

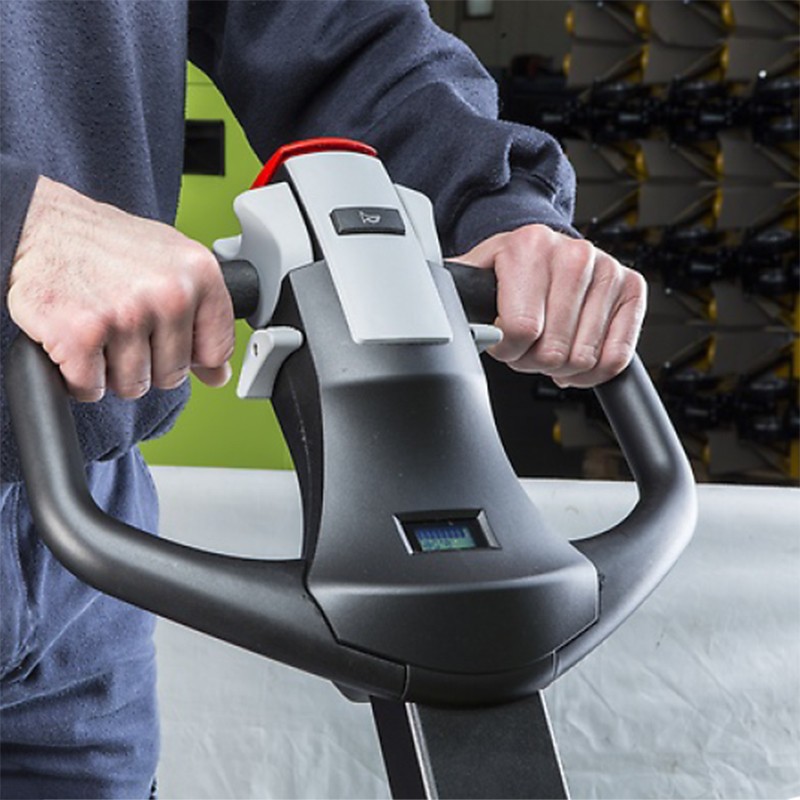

      The PRAMAC LIFTER GX10/42 stacker features an integrated ergonomic technopolymer tiller arm that includes as standard equipment the accelerator, proportional controls for the forks, safety button, horn, turtle button, display with hour meter and battery status indicator.

      TECHNICAL FEATURES PRAMAC LIFTER GX10/42 TRIPLEX

      Propulsion Type: Electric
      Driving System: Accompaniment
      Load capacity: 1000 Kg
      Rear wheels quantity: 2
      Front wheels quantity: 1 drive + 1
      Closed mast height: 1994 mm
      Free lift: 1370 mm
      Lifting height: 4110 mm
      Total length: 1800 mm
      Total width: 800 mm
      Fork width: 150 mm
      Fork length: 1150 mm
      Width between forks: 560 mm
      Storage corridor: 2240 mm
      Turning radius: 1430 mm
      Travel speed with load: 4. 7 Km/h
      Travel speed without load: 5.2 Km/h
      Traction motor power: 0.7 KW

      Are you looking for a product with different technical characteristics? Here you can find the area dedicated to the transport and storage of goods PRAMAC or other specialized brands, where you can find the product that suits you.

      Images and technical data are not binding and may be subject to revisions by the manufacturer.
