PRAMAC LIFTER ELECTRIC STACKER GX12/42 EVO
      PRAMAC LIFTER ELECTRIC STACKER GX12/42 EVO
      PRAMAC LIFTER ELECTRIC STACKER GX12/42 EVO
      PRAMAC LIFTER ELECTRIC STACKER GX12/42 EVO
      PRAMAC LIFTER ELECTRIC STACKER GX12/42 EVO
      PRAMAC LIFTER ELECTRIC STACKER GX12/42 EVO
      PRAMAC LIFTER ELECTRIC STACKER GX12/42 EVO

      PRAMAC LIFTER ELECTRIC STACKER GX12/42 EVO

      Drive: Electric
      Operator type: Pedestrian
      Load capacity: 1200 Kg
      Quantity rear wheels: 2
      Quantity front wheels: 1 driven + 1
      Height mast lowered: 2600 mm
      Normal free lifting: 80 mm
      Lift height: 4110 mm
      Overall lenght: 1760 mm
      Overall width: 800 mm
      Width fork: 150 mm
      Lenght fork: 1150 mm
      Distance between fork arms: 560 mm
      Aisle width: 2210 mm
      Turning radius: 1430 mm
      Travel speed laden: 4.7 Km/h
      Travel speed unladen: 5.2 Km/h
      Drive motor power: 0.7 KW

      List price
      8,113.00 € tax incl.
      6,650.00 € tax excl.
      Discounted Price
      8,113.00 € tax incl.
      6,650.00 € tax excl.
      Shipping from 188.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: PRAMAC LIFTER ELECTRIC STACKER GX12/42 EVO

      PERSONAL DATA


      Ask a question
      Product: PRAMAC LIFTER ELECTRIC STACKER GX12/42 EVO
      Offer on letterhead
      Product: PRAMAC LIFTER ELECTRIC STACKER GX12/42 EVO
      LIFTER
      HMW1230P000

      Data sheet

      Battery type
      AGM
      Drive
      Electric
      Operator type
      Pedestrian
      Load capacity (Kg)
      1200
      Load centre distance (mm)
      600
      Load axle to end forks (mm)
      780
      Wheel base (mm)
      1234
      Service weight (Kg)
      644
      Axle load, laden rear (Kg)
      1173
      Axle load, laden front (Kg)
      671
      Axle load, unladen front (Kg)
      471
      Axle load, unladen rear (Kg)
      173
      Tyres: front wheels
      RUBBER
      Tyres: stabilizers wheels
      POLY.C.
      Tyres: rear wheels
      POLY.C.
      Diameter steering wheels (mm)
      250
      Width steering wheels (mm)
      76
      Diameter load rollers (mm)
      82
      Width load rollers (mm)
      70
      Diameter stabilizers wheels front (mm)
      100
      Width stabilizers wheels front (mm)
      38
      Quantity rear wheels
      2
      Quantity front wheels
      1 driven + 1
      Tread front (mm)
      565
      Tread rear (mm)
      410
      Height mast lowered (mm)
      2600
      Normal free lifting (mm)
      80
      Lift height (mm)
      4110
      Height mast extended (mm)
      4616
      Height of tiller in drive position max (mm)
      1330
      Height of tiller in drive position min (mm)
      960
      Height lowered (mm)
      90
      Overall lenght (mm)
      1760
      Lenght to face of forks (mm)
      609
      Overall width (mm)
      800
      Thickness fork (mm)
      70
      Width fork (mm)
      150
      Lenght fork (mm)
      1150
      Fork carriage width (mm)
      650
      Distance between fork arms (mm)
      560
      Ground clearance at centre of wheelbase (mm)
      20

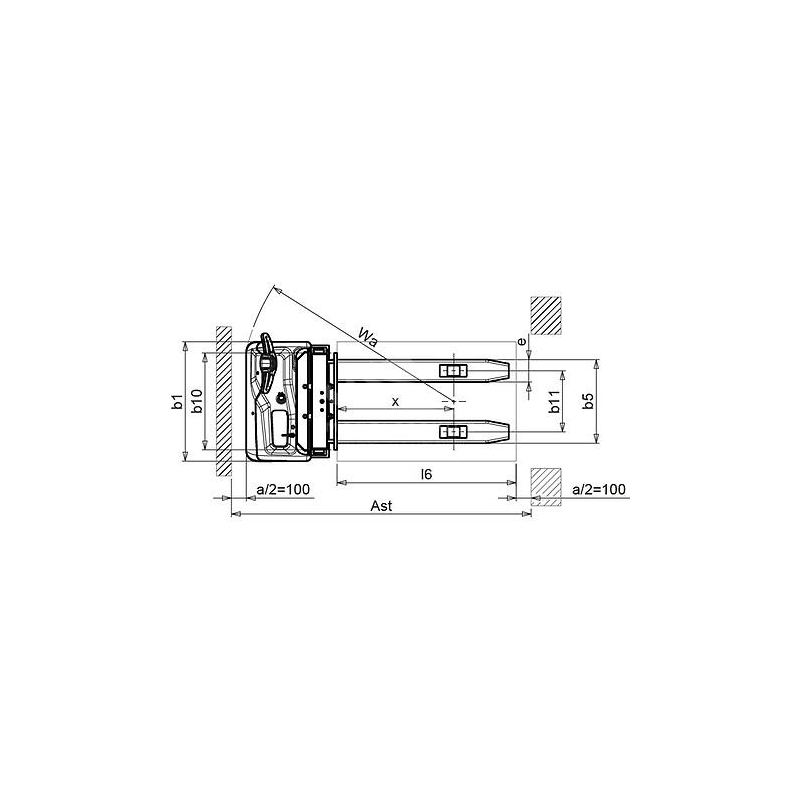

      Aisle width (mm)
      2210
      Turning radius (mm)
      1430
      Travel speed laden (Km/h)
      4.7
      Travel speed unladen (Km/h)
      5.2
      Lifting speed laden (m/s)
      0.11
      Lifting speed unladen (m/s)
      0.19
      Lowering speed laden (m/s)
      0.25
      Lowering speed unladen (m/s)
      0.30
      Max gradeability laden (%)
      5
      Max gradeability unladen (%)
      10
      Service brake
      Electric
      Drive motor power (KW)
      0.7
      Lift motor power (KW)
      2.2
      Battery voltage (V)
      24
      Battery capacity min (Ah)
      110
      Battery capacity max (Ah)
      110
      Battery weight min (Kg)
      34
      Battery weight max (Kg)
      100
      Energy consumption according to VDI cycle (KWh/h)
      0.9
      Sound level at driver's ear
      62
      Type of lifting
      Electric

      Specific References

      New

      This compact sized stacker, powerful and reliable, is the ideal solution to work in confined spaces. The Duplex mast allows a lifting capacity from 2500 up to 3500 mm with a FreeLift version available. The reduced width (800 mm), the lateral driving system and the wide mast positioning assure great manoeuvrability, stability and visibility. The built in battery and charger with integrated cable and plug make the GX Series a plug and play unit.
      The EVO version is equipped with more powerful batteries - semitraction type - that allow longer endurance and greater number of charging cycles. The ergonomic tiller made with PLASTIC offers a comfortable grip. A specific electronic board controls the fork movement offering a smooth start-stop.

      Manoeuvrability
      The overall width has the same size as the EuroPallet (800 mm) allow the unit to work in narrow spaces and corridors, increase maneuverability and reducing the turning radius.
      The combination of the lateral drive, the wide mast and the low cover offer outstanding visibility.

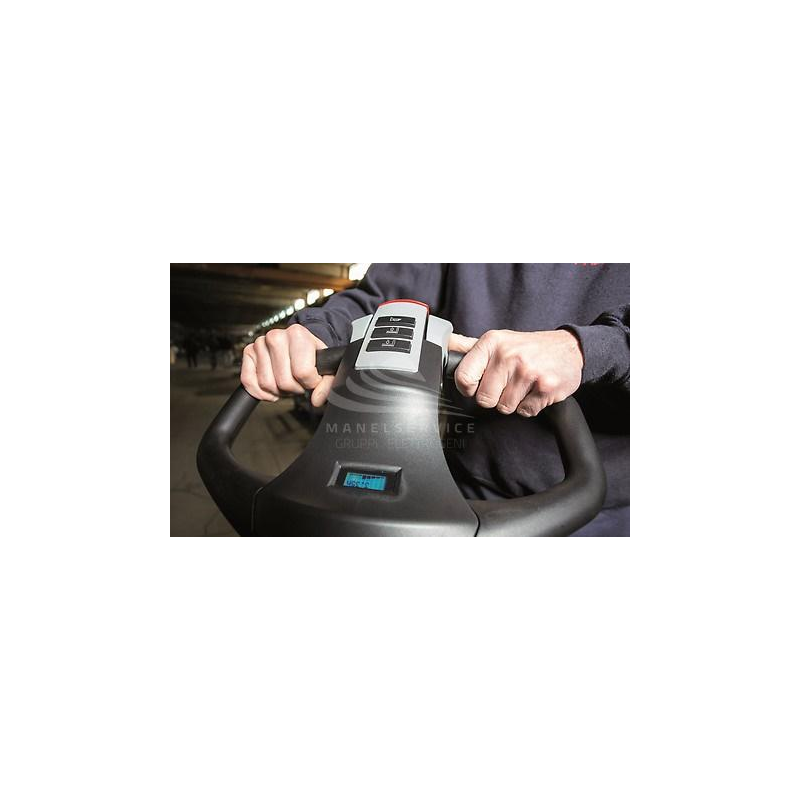

      GX Tiller EVO
      Fully integrated ergonomic technopolymer tiller system including finger tip throttle and fork controls, safety pushbutton, horn, turtle button, hourmeter, battery status indicator is the standard eqipment of the GX EVO.

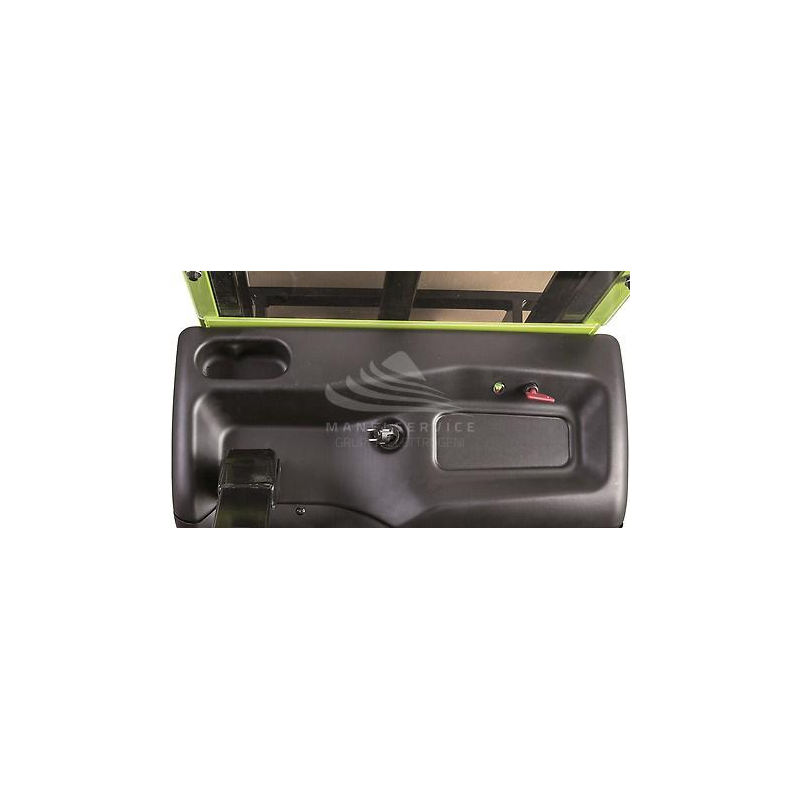

      Cover
      Strong ABS cover with storage compartments on top, easily removable to speed up maintenance operations. The bottom access opening allows an immediate disassembly of motor wheel, portal and tiller without lifting the machine. Schuko plug with spiral cable for an easy battery charging.

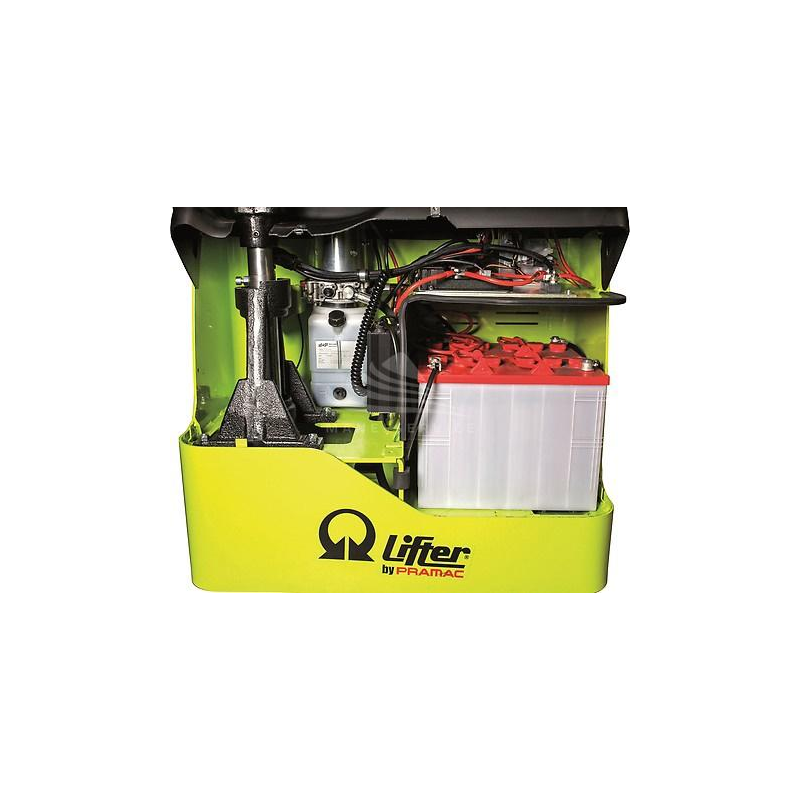

      Battery pack EVO
      A separate compartment is the housing of SEMI-TRACTION batteries. Such batteries are powerful (118 Ah C5) allowing 3 hours endurance with a a lifetime comparable to a real traction battery (1500 recharging cycles).
      GEL batteries available on demand.



      The images are purely indicative.
