      Drive: Electric
      Operator type: Pedestrian
      Load capacity: 1200 Kg
      Quantity rear wheels: 2
      Quantity front wheels: 1 driven + 1
      Height mast lowered: 1987 mm
      Lift height: 2810 mm
      Overall lenght: 1760 mm
      Overall width: 800 mm
      Width fork: 150 mm
      Lenght fork: 1150 mm
      Distance between fork arms: 560 mm
      Aisle width: 2210 mm
      Turning radius: 1430 mm
      Travel speed laden: 4.7 Km/h
      Travel speed unladen: 5.2 Km/h
      Drive motor power: 0.7 KW

      List price
      7,930.00 € tax incl.
      6,500.00 € tax excl.
      Discounted Price
      7,930.00 € tax incl.
      6,500.00 € tax excl.
      Shipping Free to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: PRAMAC LIFTER GX12/29 EVO Electric Stacker Compact Li-Ion Power

      PERSONAL DATA


      Ask a question
      Product: PRAMAC LIFTER GX12/29 EVO Electric Stacker Compact Li-Ion Power
      Offer on letterhead
      Product: PRAMAC LIFTER GX12/29 EVO Electric Stacker Compact Li-Ion Power
      LIFTER
      HM612-HM512L0P000

      Data sheet

      Battery type
      AGM
      Drive
      Electric
      Operator type
      Pedestrian
      Load capacity (Kg)
      1200
      Load centre distance (mm)
      600
      Load axle to end forks (mm)
      780
      Wheel base (mm)
      1234
      Service weight (Kg)
      585
      Axle load, laden rear (Kg)
      1187
      Axle load, laden front (Kg)
      598
      Axle load, unladen front (Kg)
      423
      Axle load, unladen rear (Kg)
      162
      Tyres: front wheels
      RUBBER
      Tyres: stabilizers wheels
      POLY.C.
      Tyres: rear wheels
      POLY.C.
      Diameter steering wheels (mm)
      250
      Width steering wheels (mm)
      76
      Diameter load rollers (mm)
      82
      Width load rollers (mm)
      70
      Diameter stabilizers wheels front (mm)
      100
      Width stabilizers wheels front (mm)
      38
      Quantity rear wheels
      2
      Quantity front wheels
      1 driven + 1
      Tread front (mm)
      565
      Tread rear (mm)
      410
      Height mast lowered (mm)
      1987
      Lift height (mm)
      2810
      Height mast extended (mm)
      3392
      Height of tiller in drive position max (mm)
      1330
      Height of tiller in drive position min (mm)
      960
      Height lowered (mm)
      90
      Overall lenght (mm)
      1760
      Lenght to face of forks (mm)
      609
      Overall width (mm)
      800
      Thickness fork (mm)
      70
      Width fork (mm)
      150
      Lenght fork (mm)
      1150
      Fork carriage width (mm)
      650
      Distance between fork arms (mm)
      560
      Ground clearance at centre of wheelbase (mm)
      20
      Aisle width (mm)
      2210
      Turning radius (mm)
      1430
      Travel speed laden (Km/h)
      4.7
      Travel speed unladen (Km/h)
      5.2
      Lifting speed laden (m/s)
      0.11
      Lifting speed unladen (m/s)
      0.19
      Lowering speed laden (m/s)
      0.25
      Lowering speed unladen (m/s)
      0.30
      Max gradeability laden (%)
      5
      Max gradeability unladen (%)
      10
      Service brake
      Electric
      Drive motor power (KW)
      0.7
      Lift motor power (KW)
      2.2
      Battery voltage (V)
      24
      Battery capacity min (Ah)
      110
      Battery capacity max (Ah)
      110
      Battery weight min (Kg)
      34
      Battery weight max (Kg)
      100
      Energy consumption according to VDI cycle (KWh/h)
      0.9
      Sound level at driver's ear
      62
      Type of lifting
      Electric

      Specific References

      New

      PRAMAC LIFTER GX12/29 EVO Electric Stacker Compact Li-Ion Power

      The PRAMAC LIFTER GX12/29 EVO Electric Stacker Compact Li-Ion Power revolutionizes material handling in tight spaces. Designed to be both powerful and reliable, this compact stacker is your go-to solution for operations where space is at a premium. Its Duplex mast supports lifting capacities ranging from 2500 mm to 3500 mm, with a FreeLift version also available for even greater flexibility.

      Measuring just 800 mm in width, the PRAMAC LIFTER GX12/29 is engineered for optimal maneuverability and stability. Its lateral driving system and strategic mast positioning enhance visibility while ensuring seamless navigation through narrow corridors and tight spaces. The inclusion of a built-in battery and charger, complete with an integrated cable and plug, underscores the stacker's plug-and-play convenience.

      Elevating performance, the PRAMAC LIFTER GX12/29 EVO version boasts semitraction batteries for extended endurance and an increased number of charging cycles, ensuring your operations keep moving without interruption. The ergonomic tiller, crafted from durable PLASTIC, provides a comfortable grip, while a dedicated electronic board smoothly manages fork movements, guaranteeing a gentle start and stop.

      Maneuverability Highlights:

      The PRAMAC LIFTER GX12/29  matches the EuroPallet's width (800 mm), allowing work in confined areas and reducing the turning radius.
      Lateral drive, wide mast, and low-profile design offer unparalleled visibility, enhancing operational safety and efficiency.

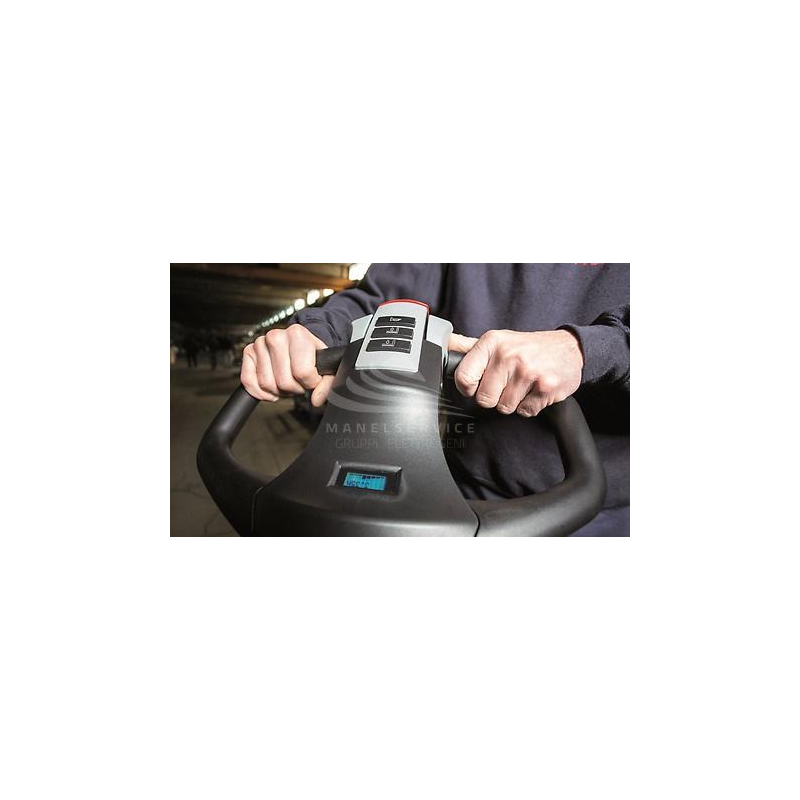

      GX Tiller EVO Features:

      An integrated ergonomic technopolymer tiller system features fingertip throttle and fork controls, a safety pushbutton, horn, turtle button, hourmeter, and battery status indicator, making it a standard on the GX EVO.
      Maintenance Made Easy:

      A robust ABS cover, equipped with storage compartments and easily removable for quick maintenance, coupled with bottom access for straightforward disassembly of the motor wheel, portal, and tiller.

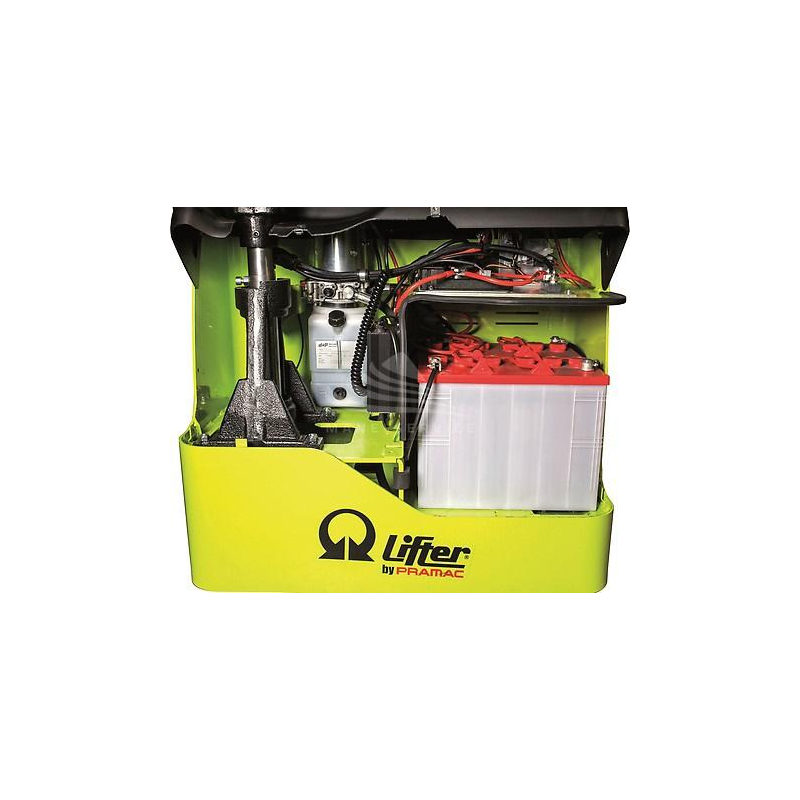

      Battery Pack EVO:

      The stacker houses SEMI-TRACTION batteries in a separate compartment, offering powerful performance (118 Ah C5) for up to 3 hours of endurance and a lifespan matching that of real traction batteries (1500 recharging cycles). GEL batteries are available upon request.
      Designed with efficiency and reliability in mind, the PRAMAC LIFTER GX12/29 EVO Electric Stacker is an indispensable tool for modern material handling, promising compact power and unmatched maneuverability for your business.

      Are you looking for a pallet truck with different technical characteristics? HERE you can find the area dedicated to PRAMAC LIFTER pallet trucks or other specialized brands.

      The images are purely indicative.

      ""
