MCH MINIDUMPER H500C L70-E POWER CARRIES DUMPER CART SELF-LOADING SHOVEL STAGEV 500 kg
      MCH MINIDUMPER H500C L70-E POWER CARRIES DUMPER CART SELF-LOADING SHOVEL STAGEV 500 kg
      MCH MINIDUMPER H500C L70-E POWER CARRIES DUMPER CART SELF-LOADING SHOVEL STAGEV 500 kg
      MCH MINIDUMPER H500C L70-E POWER CARRIES DUMPER CART SELF-LOADING SHOVEL STAGEV 500 kg
      MCH MINIDUMPER H500C L70-E POWER CARRIES DUMPER CART SELF-LOADING SHOVEL STAGEV 500 kg

      MCH MINIDUMPER H500C L70-E POWER CARRIES DUMPER CART SELF-LOADING SHOVEL STAGEV 500 kg

      Engine: Yanmar L70-E
      Displacement: 320 cc
      Power: 4.8 KW
      Engine speed: 3600 rpm
      Fuel feed: Diesel
      Emissions regulation: Stage V
      Starting: Electric
      Transmission: Hydrostatic
      Forward speed: 1 Speed 2,5 Km/h
      Hydraulic motors type: Orbital
      Hydraulic motors displacement: 200cc
      Hydraulic pump type: Double gear
      Displacement: Fixed
      Maximum pressure: 180 bar
      Working pressure: 150 bar
      Pump capacity: 4,2+4,2 cc/rpm
      Safety system: Lockout valves
      Hydraulic oil tank: 14 l
      Dumper volume: 0.21 m3
      Tipping: Hydraulic
      Maximum slope allowed: 20%
      Flat load capacity: 500 kg
      Slope load capacity: 350 kg
      Rubber tracks (mm) : 180 x 60 x 38
      Width: 1478 mm
      Depth: 835 mm
      Height: 1250 mm
      Net weight: 380 kg

      List price
      9,912.50 € tax incl.
      8,125.00 € tax excl.
      Discounted Price
      9,912.50 € tax incl.
      8,125.00 € tax excl.
      Shipping from 106.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: MCH MINIDUMPER H500C L70-E POWER CARRIES DUMPER CART SELF-LOADING SHOVEL STAGEV 500 kg

      PERSONAL DATA


      Ask a question
      Product: MCH MINIDUMPER H500C L70-E POWER CARRIES DUMPER CART SELF-LOADING SHOVEL STAGEV 500 kg
      Offer on letterhead
      Product: MCH MINIDUMPER H500C L70-E POWER CARRIES DUMPER CART SELF-LOADING SHOVEL STAGEV 500 kg
      MCH
      H500C L70-E

      Data sheet

      Fuel
      Diesel
      Engine
      Yanmar L70-E
      Engine rpm (rpm)
      3600
      Engine capacity (cm³)
      320
      Power (KW)
      4.8
      Transmission
      Hydrostatics
      Length (mm)
      1478
      Width (mm)
      835
      Height (mm)
      1250
      Dry weight (Kg)
      380
      Speeds
      1
      Capacità di carico in piano (Kg)
      500

      Specific References

      New

      MCH MINIDUMPER H500C L70 -E POWER CARRIES DUMPER CART SELF-LOADING SHOVEL STAGEV 500 kg

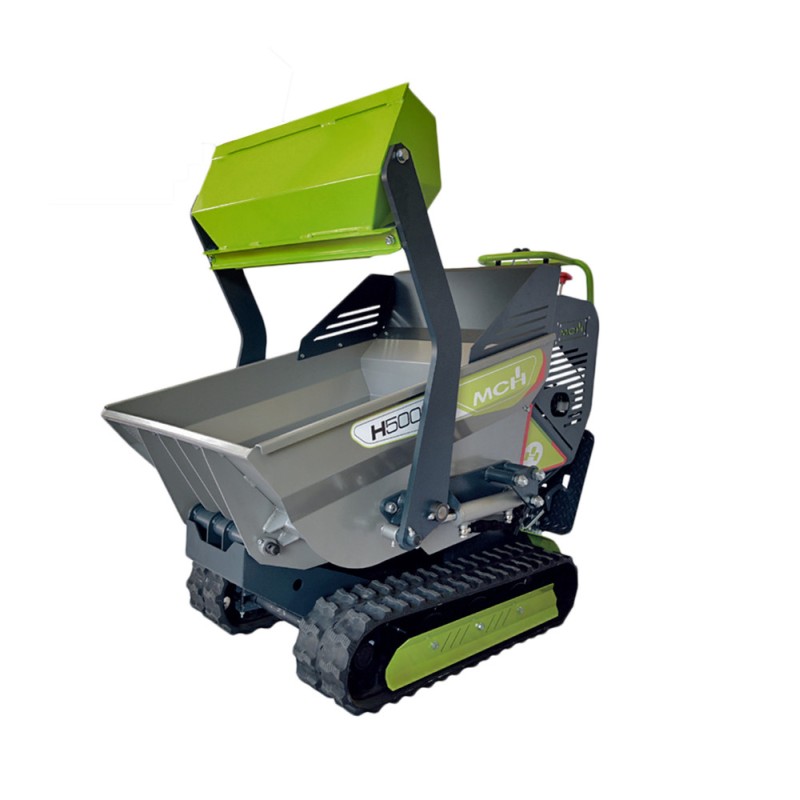

      MCH MINIDUMPER H500C L70-E is a power carries equipped with Yanmar L70-E STAGE V electric start engine with Diesel power, with a load capacity of up to 500Kg.

      The MCH MINIDUMPER H500CL70-E power carries your work easier, make transporting heavy materials easier and safer. In addition, in reducing accidents at work, they also take away a weight from you.

      MCH MINIDUMPER H500CL70-E is designed for the most demanding professionals, are equipped with a deep tipper, ideal for transporting materials (rubble, sand, stones, bricks, concrete, wood...). The power carries has a hydrostatic tipping function, which makes your work easier, allowing you to unload up to 500 kg with the simple action of the control lever.

      Thanks to the Yanmar L70-E STAGE V diesel engine, you can enjoy incredible performance with low fuel consumption, so you can take full advantage of the MCH MINIDUMPER H500C L70-E tracked forklift.

      The MCH MINIDUMPER H500CL70-E is equipped with a self-loading shovel, with which you can load and move, without any effort, materials of various kinds, in the construction and agricultural fields. The hydraulic self-loading shovel makes your work easier, make the transportation of heavy materials easier and safer, moreover, in reducing the possibility of accidents at work.

      TECHNICAL FEATURES MCH MINIDUMPER H500C L70-E

      Engine: Yanmar L70-E
      Displacement: 320 cc
      Power: 4.8 KW
      Engine speed: 3600 rpm
      Fuel feed: Diesel
      Emissions regulation: Stage V
      Starting: Electric
      Transmission: Hydrostatic
      Forward speed: 1 Speed 2,5 Km/h
      Hydraulic motors type: Orbital
      Hydraulic motors displacement: 200cc
      Hydraulic pump type: Double gear
      Displacement: Fixed
      Maximum pressure: 180 bar
      Working pressure: 150 bar
      Pump capacity: 4,2+4,2 cc/rpm
      Safety system: Lockout valves
      Hydraulic oil tank: 14 l
      Dumper volume: 0.21 m3
      Tipping: Hydraulic
      Maximum slope allowed: 20%
      Flat load capacity: 500 kg
      Slope load capacity: 350 kg

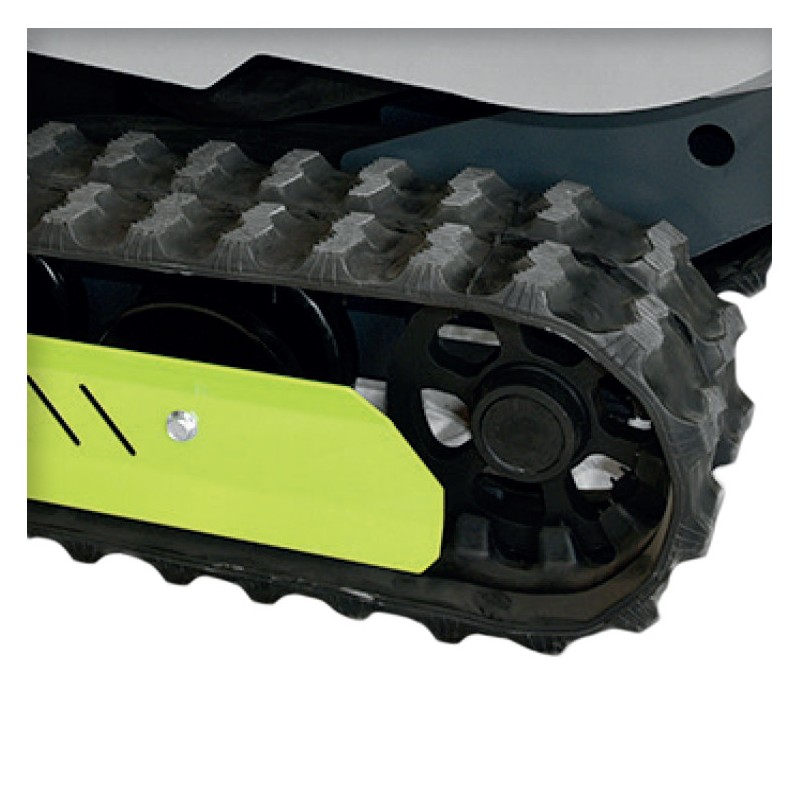

      Rubber tracks (mm) : 180 x 60 x 38
      Width: 1478 mm
      Depth: 835 mm
      Height: 1250 mm
      Net weight: 380 kg

      Are you looking for a crawler with different technical characteristics? Here you can find the full range of power carries from MCH or other specialized brands.

      Images and technical data are not binding and may be subject to revisions by the manufacturer.
