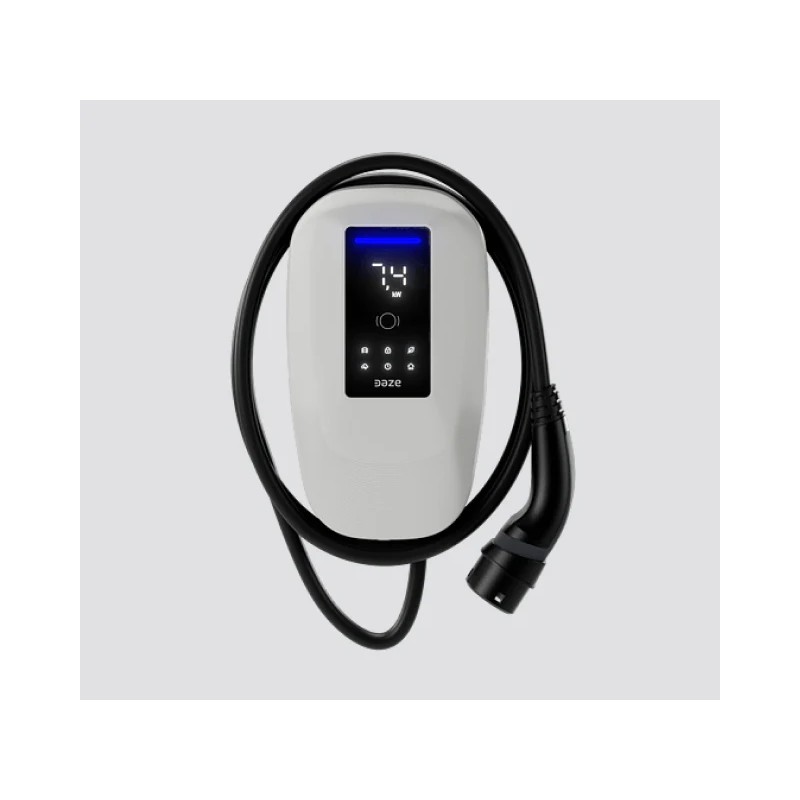

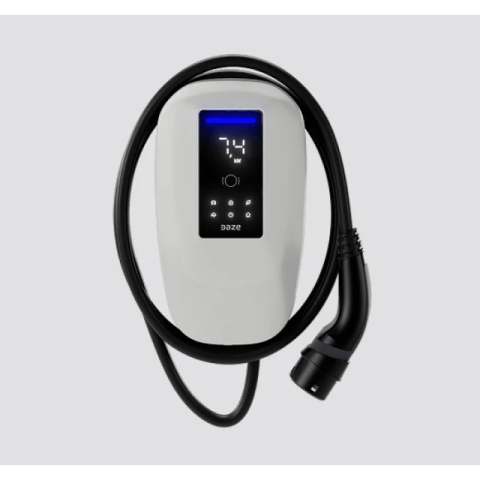

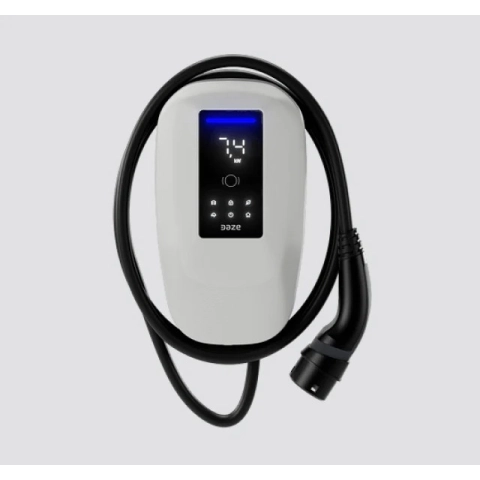

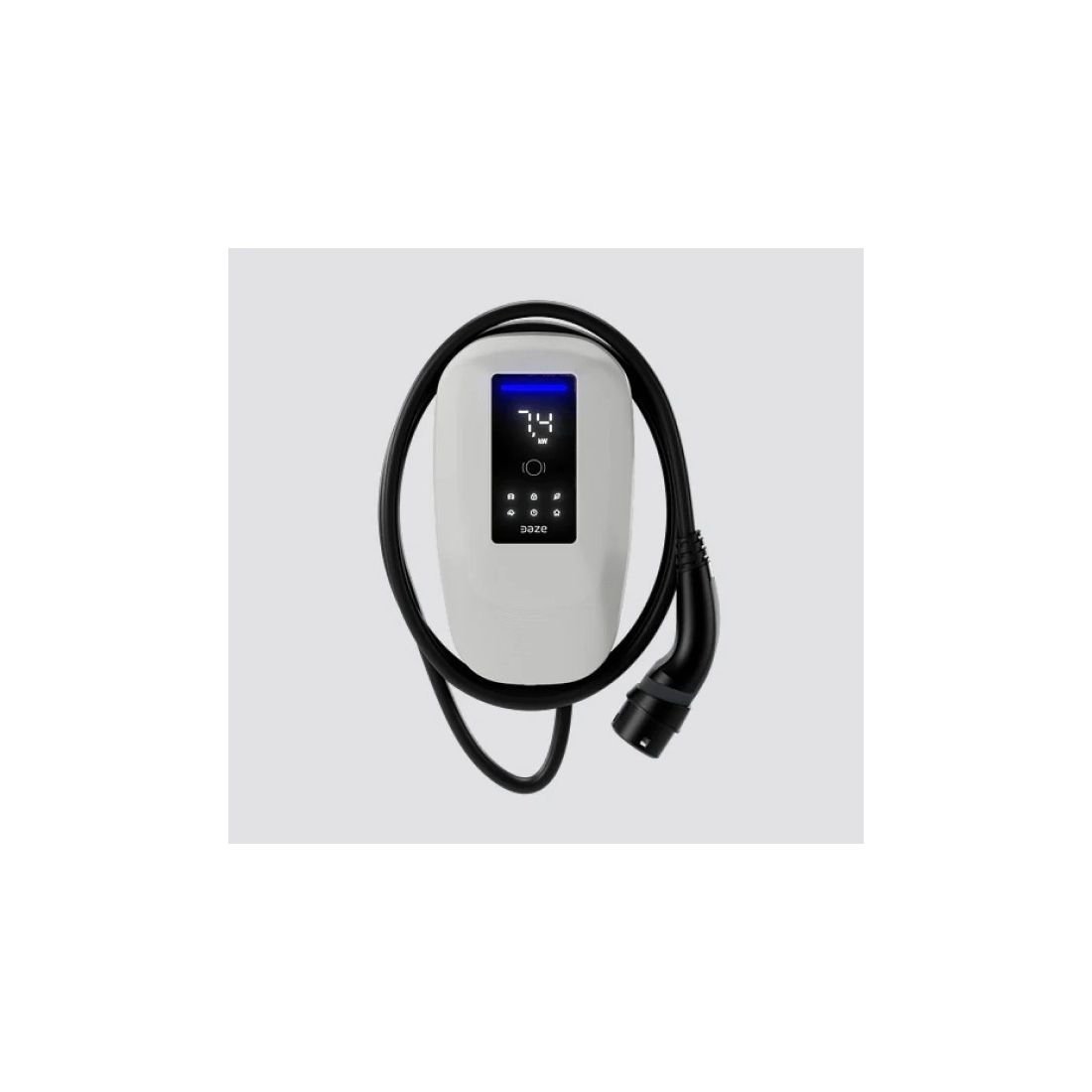

DazeBox T Share Charging Station for Electric Cars 32A 22.2KW

  • New
  • On sale!
DazeBox T Share Charging Station for Electric Cars 32A 22.2KW
DazeBox T Share Charging Station for Electric Cars 32A 22.2KW
DazeBox T Share Charging Station for Electric Cars 32A 22.2KW
DazeBox T Share Charging Station for Electric Cars 32A 22.2KW
DazeBox T Share Charging Station for Electric Cars 32A 22.2KW DazeBox T Share Charging Station for Electric Cars 32A 22.2KW
DT02IT32T5C

DazeBox T Share three-phase 32 A, 22.2 kW, 5 m type 2 cable, monochrome display, Bluetooth, WiFi, Ethernet connectivity and compatibility with 4G USB modem, RFID reader, integrated release coil

Charging mode: Mode 3

Maximum rated current: Adjustable from 6.5 A to 32 A

Maximum power: 22.2 kW three-phase

Connection: Type 2 cable / Type 2 socket

Connector cable length: 5 m / 7 m

Load Balancing: Up to 50 chargers (WiFi or Ethernet is required for more than one charger)

Protection class IP: IP56

Protection class IK: IK10

Operating temperature: From -30° C to +55° C

Dimensions without cable: 200 x 356 x 110 mm

Installation: Wall or stand SD01

Update software: Via Internet

List price
1,219.00 € tax incl.
999.18 € tax excl.
Discounted Price
1,096.78 € tax incl.
899.00 € tax excl.
Choose the Colour :
Cable Length :
Quantity :
Shipping from 18.30 € to Italy buy it today. tax incl.
Calculate Shipping Cost
Ask a question

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead
Daze
DT02IT32T5C

Data sheet

Phase
Three phase
Nominal current (A)
32
Charging socket
mode 3
IP Protection
IP56
Operating temperature
Da -30° C / +55°
Maximum power consumption
22,2 kW
Connection points
50
Dimensions (without cable)
200 x 356 x 110 mm
Protezione IK
IK10

Specific References

DazeBox T Share Electric Vehicle Charging Station 32A 22.2KW

Thanks to advanced technology, it enables energy management for a network of up to 50 chargers and 4G connectivity, making it ideal for semi-public spaces. It ensures maximum performance even at high temperatures thanks to the internal cooling system.

Charge at peak performance

Experience maximum charging speed, even in high temperatures, thanks to the advanced internal cooling system. Enjoy optimal connectivity through a 4G USB stick, while safety and convenience are guaranteed by the internal RCBO, accessible via key.

Load Balancing for up to 50 chargers

The advanced electronics of the Dazebox Share facilitate energy balancing in master/slave mode for up to 50 chargers while taking into account the consumption of other devices under the same counter. Dazebox Home, Duo, and Urban chargers can also be seamlessly integrated into the same network managed by the Dazebox Share.

Compatible with all major CPMS

Thanks to the extensive range of OCPP 1.6 JSON commands, Dazebox Share offers advanced functionalities for all major electric vehicle charger management systems.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
