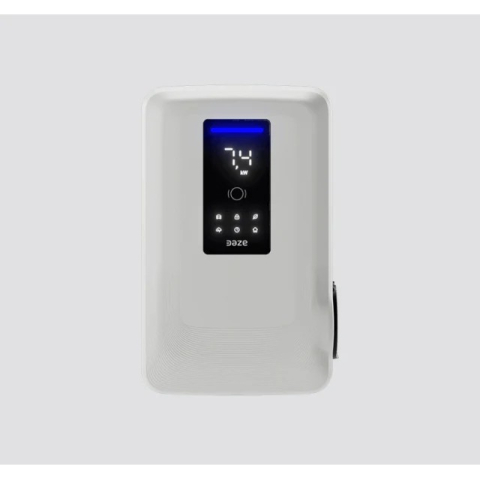

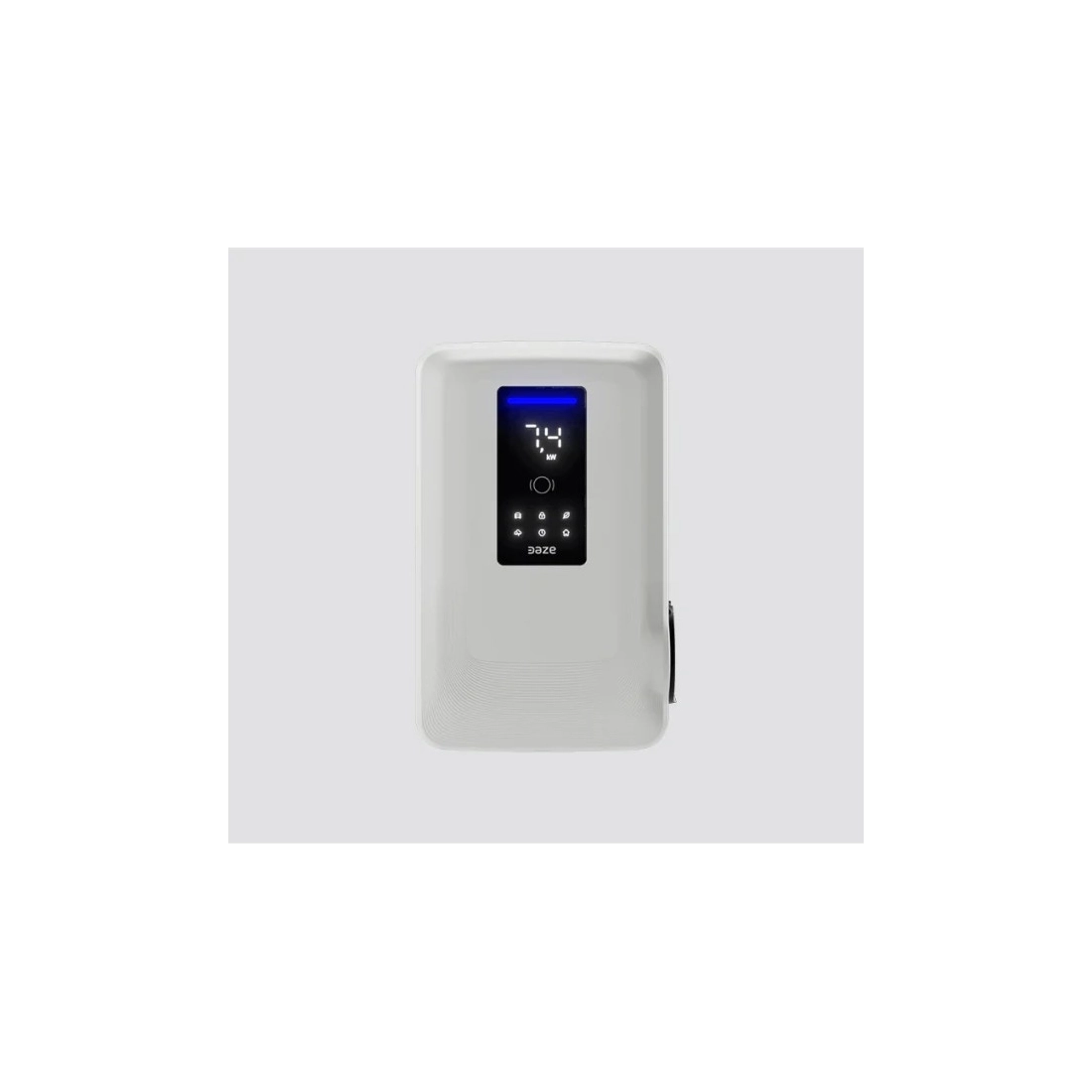

DazeBox S Home Charging Station for Electric Cars 32A 7.4KW
DS01IT32M
DazeBox S Home single-phase 32 A, 7.4 kW, type 2 socket, monochrome display, Bluetooth, WiFi, and Ethernet connectivity, RFID reader, integrated release coil
Charging mode: Mode 3
Maximum rated current: Adjustable from 6.5 A to 32 A
Maximum power: 7.4 kW single-phase
Connection: Type 2 cable / Type 2 socket
Load Balancing: Up to 8 chargers (WiFi or Ethernet is required for more than one charger)
Protection class IP: IP56
Protection class IK: IK10
Operating temperature: From -30° C to +55° C
Dimensions: 250 x 387 x 132 mm

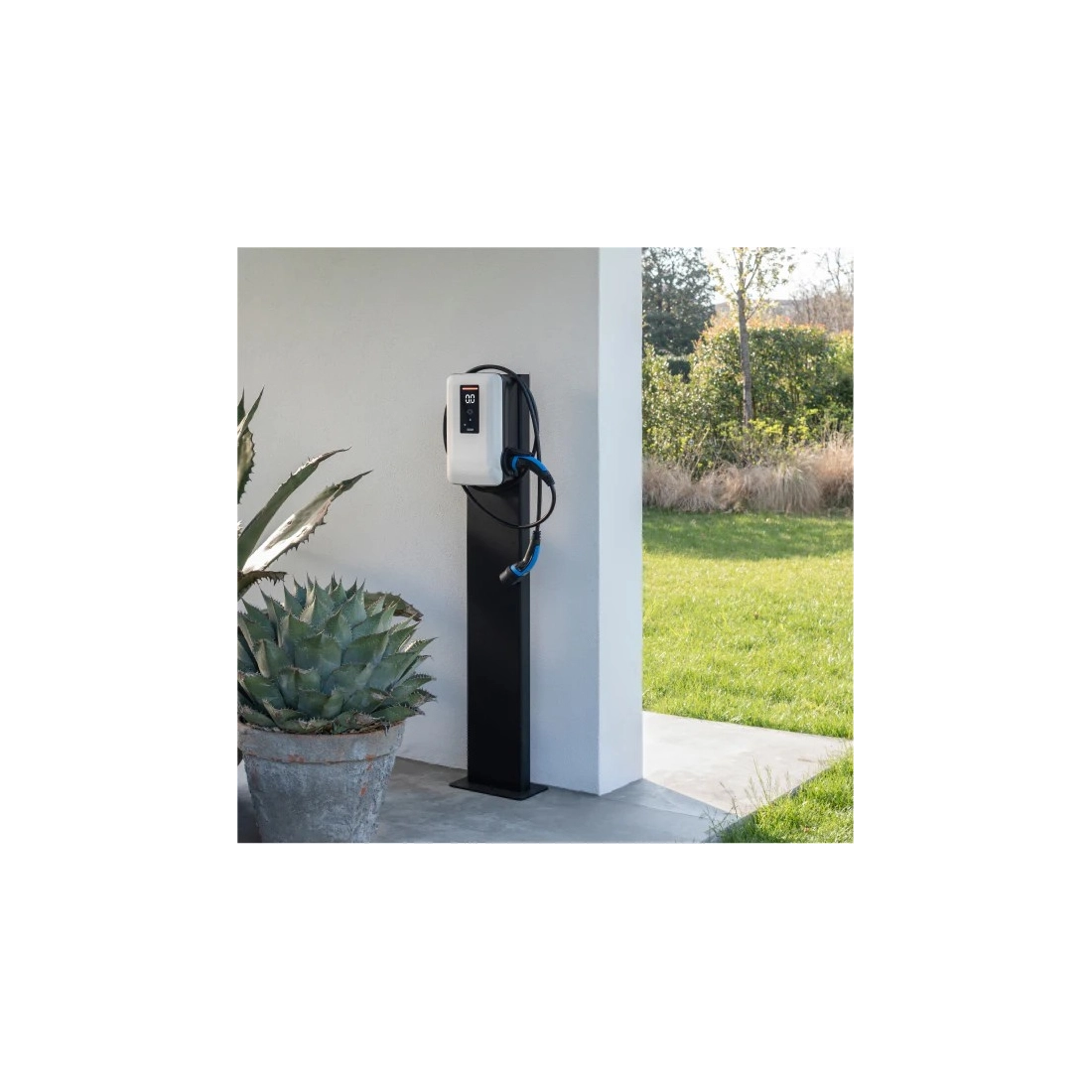

Installation: Wall or stand SD01
Update software: Via Internet or Bluetooth
List price
tax incl.
tax excl.
Discounted Price
790.56 € tax incl.
648.00 € tax excl.
Shipping from 18.30 € to Italy buy it today. tax incl.
Calculate Shipping Cost
DS01IT32M
Data sheet
- Phase
- Single phase
- Nominal current (A)
- 32
- Charging socket
- mode 3
- IP Protection
- IP56
- Operating temperature
- Da -30° C / +55°
- Maximum power consumption
- 7,4 kW
- Connection points
- 8
- Dimensions (without cable)
- 250 x 387 x 132 mm
- Protezione IK
- IK10
Specific References
DazeBox S Home Electric Vehicle Charging Station 32A 7.4KW
Dazebox Home is the advanced solution for home and shared residential charging. It offers enhanced connectivity, an RFID reader, Load Balancing for up to 8 chargers, and advanced energy-saving features. This makes it the most comprehensive home charger on the market.
All clear at first glance
The power and energy delivered are easily readable on the large screen, allowing a quick understanding of the charging status.
Extended energy-saving features
Dazebox Home features advanced energy-saving capabilities, including a "solar-only" mode and scheduling for low-cost energy time slots, and is compatible with all photovoltaic systems.
One and done installation
The Dazebox Home incorporates a release coil. This integration enables a quicker and more cost-effective installation.
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.4 other products in the same category:
