WEBASTO AC LIVE TYP-2 7.0 11KW ELECTRIC CAR CHARGING STATION
      WEBASTO AC LIVE TYP-2 7.0 11KW ELECTRIC CAR CHARGING STATION
      WEBASTO AC LIVE TYP-2 7.0 11KW ELECTRIC CAR CHARGING STATION
      WEBASTO AC LIVE TYP-2 7.0 11KW ELECTRIC CAR CHARGING STATION
      WEBASTO AC LIVE TYP-2 7.0 11KW ELECTRIC CAR CHARGING STATION

      WEBASTO AC LIVE TYP-2 7.0 11KW ELECTRIC CAR CHARGING STATION

      5110361C

      Nominal current (A): 16, 32
      Phase type: Three-phase / Single-phase
      Main voltage: 230/400 V (European)
      Main frequency: 50 Hz
      Overvoltage category: III according to EN 60664
      Protection class: I
      Cable length: 7.0 m
      Protection device: IP54
      Mechanical impact protection: IK08
      Output voltage: 230 / 400 Vac
      Max charge power: 11 KW
      Display: 8 RGB LEDs,, buzzer

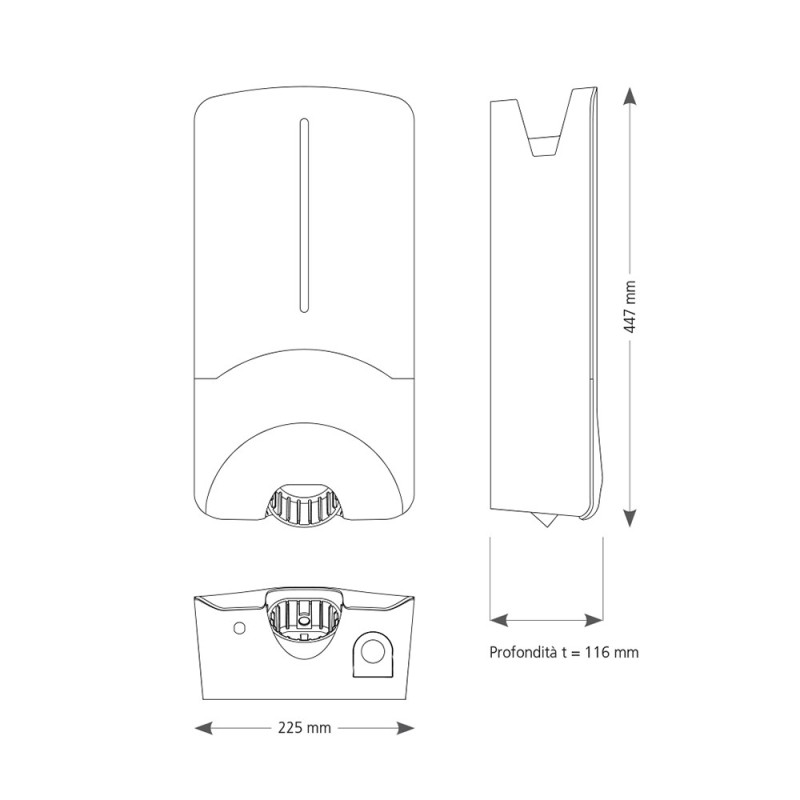

      Width: 225 mm
      Depth: 116 mm
      Height: 447 mm
      Weight: 6.8 Kg

      List price
      3,484.32 € tax incl.
      2,856.00 € tax excl.
      Discounted Price
      2,061.80 € tax incl.
      1,690.00 € tax excl.
      Shipping Free to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: WEBASTO AC LIVE TYP-2 7.0 11KW ELECTRIC CAR CHARGING STATION

      PERSONAL DATA


      Ask a question
      Product: WEBASTO AC LIVE TYP-2 7.0 11KW ELECTRIC CAR CHARGING STATION
      Offer on letterhead
      Product: WEBASTO AC LIVE TYP-2 7.0 11KW ELECTRIC CAR CHARGING STATION
      WEBASTO
      5110361C

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power single phase (KW)
      11
      Maximum power three phase (KW)
      11
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Protection degree
      IP54
      Nominal current (A)
      16 or 32
      Length (mm)
      116
      Width (mm)
      225
      Height (mm)
      447
      Product type
      Charging station
      Weight (Kg)
      6.8
      Overvoltage category
      III in accordance with EN 60664
      Network systems
      TT/TN/IT
      EMC class
      Interference emission: Class B (residential, commercial, industrial areas) Interference resistance: industrial areas
      Assembly
      Wall or stand mounting
      Power cable
      Mounted on-wall or in-wall
      Cross section of the connection (cable dimensions)
      Cross-section of the connection cable (Cu) depending on local conditions: 6 or 10 mm² for 16 A and 10 mm² for 32 A
      Charging cable
      Type 2 in accordance with EN 62196-1 and EN 62196-2 up to 32 A / 400 V AC; 4.5 m long, integrated cable bracket
      Output voltage (VAC)
      230 / 400
      Max. charging capacity (KW)
      3.7 - 22 (adjustable)
      Display
      8 RGB-LEDs, horn beeper
      Network interfaces
      - LAN (RJ45) - 10 / 100 Base-TX - WLAN 802.11b/g - 54 Mbit/s
      Mobile communications
      SIM card slot (form factor 3FF / Micro-SIM), integrated 4G modem (LTE)
      OCPP
      Version 1.5 / 1.6 (upgrade possible)
      Plug & Charge
      ISO 15118-1, ISO 15118-2
      Local recharge management
      Up to 250 charging points, dynamic, no phase delay adjustment
      Solar charging / optimized speed
      Programmed
      Protection against mechanical impact
      IK08
      Operating temperature range (°C)
      From -25 to +40
      Storage temperature range (°C)
      from -25 to +70
      Permissible relative humidity (%)
      From 5 to 95 without condensation
      Altitude (m)
      Max 2000 m above sea level

      Specific References

      New

      WEBASTO AC LIVE TYP-2 7.0 ELECTRIC CAR CHARGING STATION 11KW

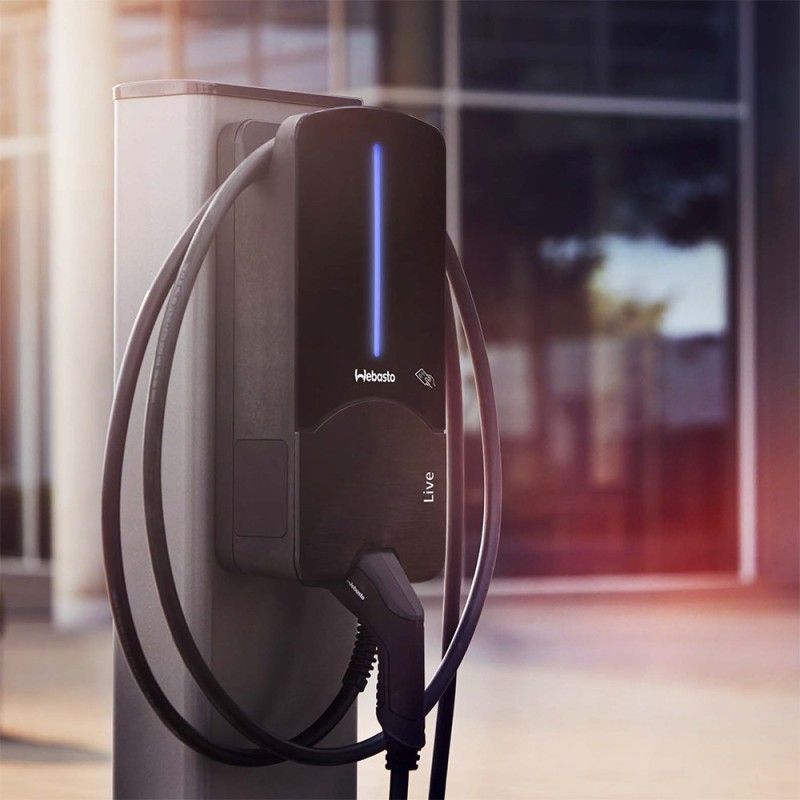

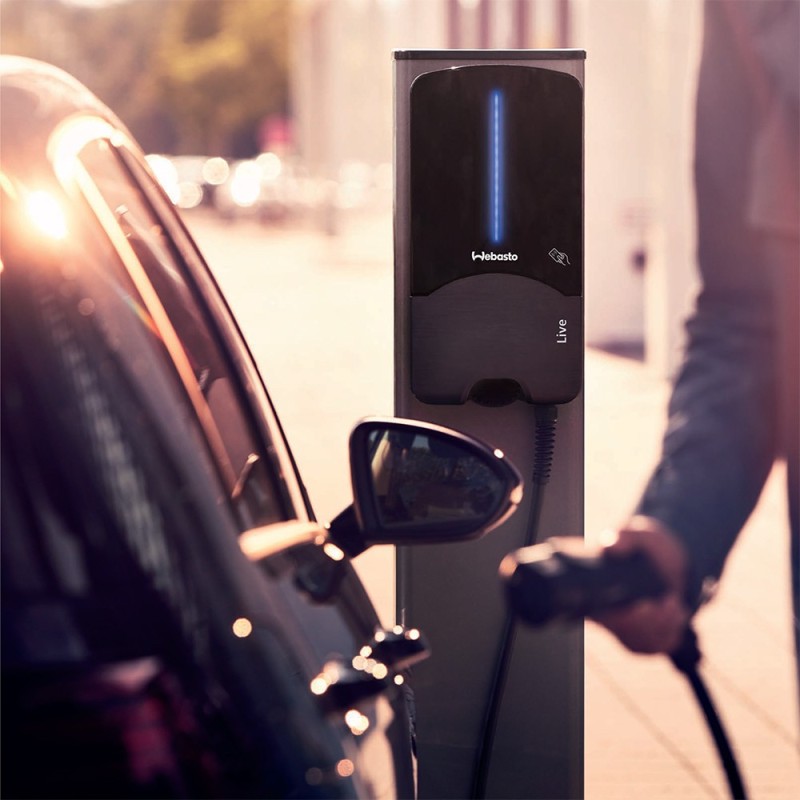

      WEBASTO AC LIVE is a charging station for electric cars capable of delivering a maximum charging power of 11 KW with a programmable digital interface.

      With the Webasto Live intelligent electric car station you can reap the benefits of electromobility in an efficient and optimized way to meet your needs both for your business and at home.

      WEBASTO AC LIVE is equipped with an integrated 4G modem and configurable digital interface via Wi-Fi hotspot, allowing you to always have the station under control and monitor, manage and control activities at any time digitally.

      Thanks to regular online updates, your electric car station remains future-proof and meets the highest quality standards in every respect.

      The WEBASTO electric car station boasts high charging power, maximum safety and maximum convenience. Charging with electric car station WEBASTO is up to 10 times faster than a typical household outlet and automatically stops as soon as the battery is charged.

      Technical Specifications WEBASTO AC LIVE:

      Nominal current (A): 16, 32
      Phase type: Three-phase / Single-phase
      Main voltage: 230/400 V (European)
      Main frequency: 50 Hz
      Overvoltage category: III according to EN 60664
      Protection class: I
      Cable length: 7.0 m
      Protection device: IP54
      Mechanical impact protection: IK08
      Output voltage: 230 / 400 Vac
      Max charge power: 11 KW
      Display: 8 RGB LEDs,, buzzer
      Width: 225 mm
      Depth: 116 mm
      Height: 447 mm
      Weight: 6.8 Kg

      The WEBASTO station impresses with its many advantages:
      - Charging capacity of 11 kW, 7.0 m
      - Up to ten times faster than using a standard household outlet
      - Simple and convenient operation
      - Safe operation including protective measures
      - High quality engineering
      - Affordable price and expert technical support
      - High quality ''Made in Germany''

      If you are looking for a Webasto charging station or other similar products then you can browse our entire catalogue.

      Images and technical data are not binding.
