TELAIR TG 480 GAS ECOENERGY 12 V – 20A

30200
      TELAIR TG 480 GAS ECOENERGY 12 V – 20A
      TELAIR TG 480 GAS ECOENERGY 12 V – 20A
      TELAIR TG 480 GAS ECOENERGY 12 V – 20A
      TELAIR TG 480 GAS ECOENERGY 12 V – 20A
      TELAIR TG 480 GAS ECOENERGY 12 V – 20A
      TELAIR TG 480 GAS ECOENERGY 12 V – 20A

      Automatic operation: Start 11.9V - Stop 14.5V
      Operating temperature with propane gas: +50°C ÷ -25°C
      Rated current:A/h 20 A/h (480 A/24h)
      Gas consumption/hour 270 g/h
      Power supply: Propane gas
      Charging voltage: 12V
      Lubricating oil consumption: 1 lt/115 h
      Noise at 7 mt LpA: 51 dBA
      Weight 19 Kg
      Length without brackets: 565 mm
      Width without brackets: 380 mm
      Height without brackets: 250 mm
      Recommended batteries: 160 ÷ 300 Ah
      Selectable supplied current: fixed
      Operation in high mountains 2300 mt: NO
      Connection cable with control unit 5 mt

      List price
      3,179.32 € tax incl.
      2,606.00 € tax excl.
      Discounted Price
      2,457.39 € tax incl.
      2,014.25 € tax excl.
      Shipping from 24.40 € to Italy buy it today.
      Calculate Shipping Cost
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      TELAIR
      30200

      Data sheet

      Fuel
      Gas
      Output voltage (V)
      12
      Nominal current (A)
      20 A/h (480 A/24h)
      Gas consumption (Kg/h)
      0,27
      Acoustic pressure
      51 dB(A) at 7 m
      Length (mm)
      565
      Width (mm)
      380
      Height (mm)
      250

      Specific References

      New

      TELAIR TG480 BATTERY CHARGER

      TELAIR TG480 is a battery charger with more than twice the charging capacity of a Fuel Cell or a 100W solar panel Fully automatic.

      The operation of the TELAIR TG480 charger is fully automatic, it is ensured by an internal combustion engine powered by on-board LPG, a fuel with low environmental impact.

      Thanks to a thick sound absorbing insulation, the TELAIR TG480 charger has an extremely low noise diffusion (only 51 dBA (7mt)) and almost imperceptible. The technical solutions adopted guarantee safe operation at all times, with negligible noise and vibrations.

      The TELAIR TG480 charger starts when the battery is discharging (11.9 V) and stops when it is full (14.5 V). Useful when the engine battery is not fully efficient or when using high absorption electrical equipment

      The TG480 TELAIR TG480 is a charger with simple and practical gas operation, simply connect it to the gas bottle already present in the motorhome and it is ready to use.

      TELAIR TG480 is equipped with a practical control panel that signals high temperature and low oil level. In addition, the control panel includes a warning light that indicates all phases of ECOENERGY operation.

      In addition, the panel is equipped with a button for forced manual start. It is used in case you want to switch on the ECOENERGY even if the battery voltage is higher than the minimum threshold level of 11.9 Volt. Once the voltage of 14.5 Volt has been reached, the ECOENERGY switches the motor off automatically and goes into stand-by again.

      TECHNICAL FEATURES OF THE TELAIR TG480 BATTERY CHARGER

      Automatic operation: Start 11.9V - Stop 14.5V
      Operating temperature with propane gas: +50°C ÷ -25°C
      Nominal current:A/h 20 A/h (480 A/24h)
      Gas Consumption 270 g/h
      Power supply: Propane Gas
      Charge voltage: 12V
      Lubricating oil consumption: 1 lt/115 h
      Noise at 7 m LpA: 51 dBA
      Weight 19 Kg
      Length without brackets: 565 mm
      Width without brackets: 380 mm
      Height without brackets: 250 mm
      Recommended batteries: 160 ÷ 300 Ah
      Selectable supplied current: fixed
      High mountain operation 2300 mt: NO
      Connection cable with control unit 5 mt

      Are you looking for a product with different characteristics? HERE you can find the entire TELAIR range and other specialized brands.

      Images and technical data are not binding and subject to change by the manufacturer.

      ""* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
      TELAIR SMTG 90° bracket
          FOR GENERATORS FOR CAMPERS
          Discounted price
          tax incl.
          185.44 €
          152.00 € tax excl.
          TELAIR SOR Remote Oil Tank Kit
              Discounted price
              tax incl.
              211.06 €
              173.00 € tax excl.
              TELAIR SPTG Floor bracket
                  FOR GENERATORS FOR CAMPERS
                  Discounted price
                  tax incl.
                  211.06 €
                  173.00 € tax excl.
                  TELAIR SSTG KIT for CEILING MOUNTING
                      Discounted price
                      tax incl.
                      280.60 €
                      230.00 € tax excl.
                      TELAIR SATG AL-KO frame bracket
                          Discounted price
                          tax incl.
                          280.60 €
                          230.00 € tax excl.

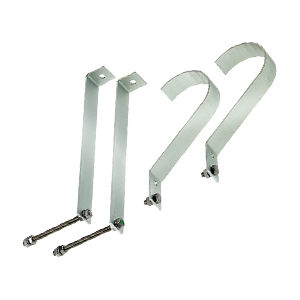

                          TELAIR KPATG KIT of transformation from SPTG to SATG
                              Discounted price
                              tax incl.
                              109.80 €
                              90.00 € tax excl.
                              TELAIR KESMTG KIT extension bracket SMTG
                                  Discounted price
                                  tax incl.
                                  98.82 €
                                  81.00 € tax excl.

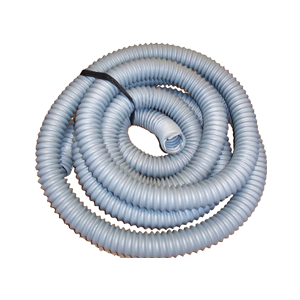

                                  TELAIR TSP57 PVC exhaust hose Ø 57 pack mt. 10
