      YC450T1H000

      Type of phase: Single-phase / Three-phase
      Continuous power: 45 KVA / 36 KW
      Maximum power (5s): 112.5 KVA / 90 KW
      VAC voltage: 230/400
      Frequency (Hz): 50
      Battery type: Li-Ion NMC
      Input socket: 2 x 125A 400 / 230V IEC 60309
      Socket panel: 1 x 32A 230 V / 2 x 32A 400/230 V / 1 x 63A 400 / 230V / 1 x 125A 400 / 230V
      Battery life (@ 80% DoD): 4000 cycles
      Nominal battery capacity: 75 KWh
      Usable energy (@ 80% DoD): 60 KWh
      Maximum input: 125A 400 / 230V
      Degree of protection: IP34
      Length: 2012 mm
      Width: 1183 mm
      Height : 2012 mm
      Net weight: 1630 Kg

      List price
      216,257.20 € tax incl.
      177,260.00 € tax excl.
      Discounted Price
      111,697.00 € tax incl.
      91,554.92 € tax excl.
      Shipping from 480.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: PRAMAC OFF GRID LX 45/75 PORTABLE BATTERY 90 KW SINGLE-PHASE/THREE-PHASE

      PERSONAL DATA


      Ask a question
      Product: PRAMAC OFF GRID LX 45/75 PORTABLE BATTERY 90 KW SINGLE-PHASE/THREE-PHASE
      Offer on letterhead
      Product: PRAMAC OFF GRID LX 45/75 PORTABLE BATTERY 90 KW SINGLE-PHASE/THREE-PHASE
      PRAMAC
      YC450T1H000

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power three phase (KW)
      90
      Continuous power three phase (KW)
      36
      Maximum power three phase (KVA)
      112.5
      Continuous power three phase (KVA)
      45
      Sockets configuration
      1 x 32A 230 V / 2 x 32A 400/230 V / 1 x 63A 400/230V / 1 x 125A 400/230V
      Protection degree
      IP34
      Input current max AC
      125A
      Battery's service capacity (KWh)
      75
      Battery type
      Li-Ion NMC
      Length (mm)
      2012
      Width (mm)
      1183
      Height (mm)
      2012
      Input voltage (V)
      400/230
      ATS Switch device
      Yes
      Weight (Kg)
      1630
      Inputs
      2 x 125A 400/230V IEC 60309

      Specific References

      New

      PRAMAC OFF GRID LX 45/75 PORTABLE BATTERY 90 KW SINGLE/THREE-PHASE

      The PRAMAC OFF GRID LX 45/75 portable battery is a practical solution to have access, in any situation, to an energy source with zero CO2 emissions , which can be charged by means of an integrated photovoltaic panel .

      PRAMAC OFF GRID LX 45/75 provides reliable energy in the most economical and environmentally friendly way. The energy stored inside the battery is electronically converted into mains power. The stored energy can derive from integrated photovoltaics, from the connection to the electricity grid, from a diesel generator or from a wind turbine.

      Energy is automatically managed by one or all of these energy sources to ensure maximum efficiency, minimum maintenance and the best environmental impact. Remote communication ensures that real-time monitoring and maintenance can be performed from anywhere in the world.

      Main features PRAMAC OFF GRID LX 45/75:

      • NMC deep cycle lithium ion battery

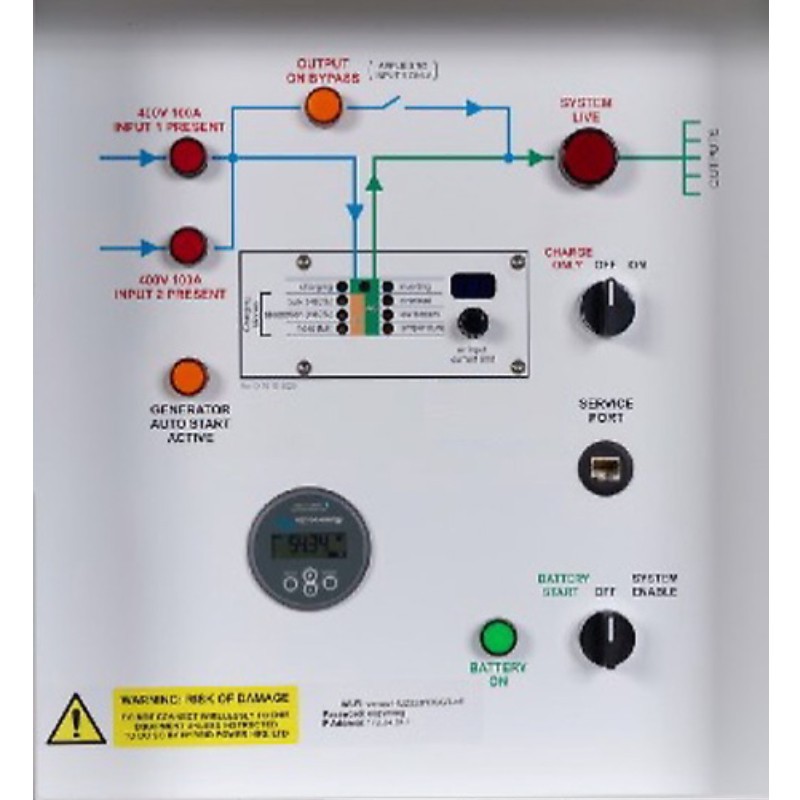

      • Advanced EMS with touch screen control
      • 100A through current
      • GSM remote monitoring
      • Complete isolated DC system with pre-charge
      • V50 ​​Power ™ for increased DC bus stability
      • Full system auto bypass
      • Single-phase to three-phase conversion

      TECHNICAL CHARACTERISTICS PRAMAC OFF GRID LX 45/75 :

      Type of phase: Single-phase / Three-phase
      Continuous power: 45 KVA / 36 KW
      Maximum power (5s): 112.5 KVA / 90 KW
      VAC voltage: 230/400
      Frequency (Hz): 50
      Battery type: Li-Ion NMC
      Input socket: 2 x 125A 400 / 230V IEC 60309
      Socket panel: 1 x 32A 230 V / 2 x 32A 400/230 V / 1 x 63A 400 / 230V / 1 x 125A 400 / 230V
      Battery life (@ 80% DoD): 4000 cycles
      Nominal battery capacity: 75 KWh
      Usable energy (@ 80% DoD): 60 KWh
      Maximum input: 125A 400 / 230V
      Degree of protection: IP34
      Length: 2012 mm
      Width: 1183 mm
      Height : 2012 mm
      Net weight: 1630 Kg

      Discover the full range the entire range of PRAMAC storage systems or portable batteries or other specialized brands. Visit the dedicated section by clicking HERE


      The images and technical data are not binding and may be subject to revisions by the manufacturer.
