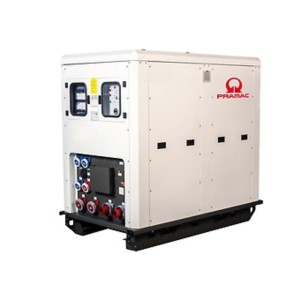

PRAMAC OFF GRID LX 45/90 PORTABLE BATTERY 90 KW SINGLE-PHASE / THREE-PHASE

The battery store system PRAMAC OFF GRID LX 45/90 battery is a practical solution to have access, in any situation, to an energy source with zero CO2 emissions , which can be charged by means of an integrated photovoltaic panel .

PRAMAC OFF GRID LX 45/90 provides reliable energy in the most economical and environmentally friendly way. The energy stored inside the battery is electronically converted into mains power. The stored energy can derive from integrated photovoltaics, from the connection to the electricity grid, from a diesel generator or from a wind turbine.

Energy is automatically managed by one or all of these energy sources to ensure maximum efficiency, minimum maintenance and the best environmental impact. Remote communication ensures that real-time monitoring and maintenance can be performed from anywhere in the world.

PRAMAC OFF GRID LX 45/90 was created for stand alone applications for low load and hybrid applications to manage power peaks of industrial and construction sites.

The PRAMAC OFF GRID LX 45/90 portable battery in autonomous operation is suitable for work environments that require no noise, low load environments, or simply usable as an emergency group in the event of a blackout.

In any complex application such as events or construction sites, where low loads or spikes can be a problem for the generator, the hybrid solution is ideal for improving the overall performance of the site.

TECHNICAL FEATURES PRAMAC OFF GRID LX 45/90:

Type of phase: Single-phase / Three-phase
Continuous power: 45 KVA / 36 KW
Maximum power (5s): 112.5 KVA / 90 KW
VAC voltage: 230/400V
Frequency (Hz): 50
Battery type: Lead acid gel OPzVS
Input socket: 2 x 125A 400 / 230V IEC 60309
Socket panel: 1 x 32A 230 V / 2 x 32A 400/230 V / 1 x 63A 400/230 V / 1 x 125A 400 / 230V
Battery life (@ 80% DoD): 2000 cycles
Battery nominal capacity: 90 KWh
Usable energy ( @ 80% DoD): 72 KWh
Maximum input: 125A 400 / 230V
Degree of protection: IP34
Length: 2012 mm
Width: 1183 mm
Height: 2012 mm
Net weight: 3995 Kg
