LARIUS MIRO K21507 AIRLESS ELECTRIC PUMP

LARIUS MIRO K21501
search
  • LARIUS MIRO K21501
LARIUS
K21507
New product

Electric pump for airless coating
trolley version
Tank: 6 l
Max flow rate: 2.2 l/m
Motor Power: 750 Watt
Maximum Pressure: 250 bar
Power supply: 230 V
Frequency: 50 Hz
Available voltages: 115 VAC - 60 Hz and 400 VAC - 50 Hz
Guns Included: 1 AT 250 Gun
Nozzle size: Up to 0.019''
Minimum power generator to match: minimum 4.0 KW Single-phase
Length: 400 mm
Width: 400 mm
Height: 900 mm
Dry weight: 23 Kg

Technical features
Phase
Single phase
Frequency (Hz)
50
Voltage (V)
230
Net power (kW)
0.75
Pump type
Elettropompa da verniciatura
Fluid type
Vernice
Maximum output capacity (Lt/min)
2.2
Pressure (bars)
250
Tank capacity (L)
6
Length (mm)
400
Width (mm)
400
Height (mm)
600
Maximum paint flow rate (Lt/min)
2.2
Number paint colors
1
Feed Type
Single-Phase
Number of guns supported
1
Nozzle's largest diameter
0.019''
Version
Trolley
Type of pumping group
Membrane
Product type
Pompa
Weight (Kg)
23
Details

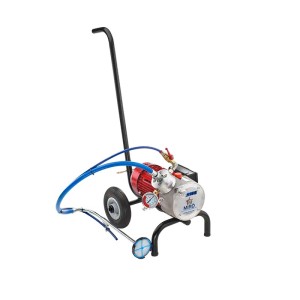

LARIUS MIRO K21507 AIRLESS ELECTRICPUMP FOR PAINTING

LARIUS MIRÒ K21507 is an airless electric paint pump for use at high pressure without the aid of air (hence the term AIRLESS), capable of delivering a maximum flow rate of 2.2 l/m.

LARIUS MIRÒ K21507 is a high-pressure electricpump equipped with an exclusive electrical control system that safeguards the motor and the board in the event of a lack of grounding, power surges, overheating and inadequate electrical extensions.

The LARIUS MIRÒ K21507 is driven by an electric motor coupled to an eccentric shaft. The shaft acts on the hydraulic piston which, by pumping oil from the hydraulic case, causes the suction membrane to fibrillate. The movement of the membrane creates a depression. The product is sucked in, pushed towards the exit of the pump and
sent through the flexible hose to the guns.

A hydraulic valve placed at the head of the hydraulic case allows to regulate and control the pressure of the material exiting the pump. A second hydraulic safety valve against overpressure guarantees the absolute reliability of the equipment.

In contrast to air-assisted systems, Airless systems atomize the material under pressure without the support of air. LARIUS MIRÒ K21507 is a pneumatically driven pump, it puts the material under pressure by delivering a given quantity at 250 bar through the nozzle hole forming a nebulized jet.

This version of the LARIUS MIRÒ electric pump includes a practical tank with a maximum capacity of 6 liters to contain the material to be sprayed, making it even easier and more immediate to use.

TECHNICAL CHARACTERISTICS LARIUS MIRÒ K21507

Electric pump for airless coating
trolley version
Tank: 6 l
Max flow rate: 2.2 l/m
Motor Power: 750 Watt
Maximum Pressure: 250 bar
Power supply: 230 V
Frequency: 50 Hz
Available voltages: 115 VAC - 60 Hz and 400 VAC - 50 Hz
Guns Included: 1 AT 250 Gun
Nozzle size: Up to 0.019''
Minimum power generator to match: minimum 4.0 KW Single-phase
Length: 400 mm
Width: 400 mm
Height: 900 mm
Dry weight: 23 Kg

Looking for an electricpump with different features? Here you can find the full range of LARIUS or other specialist brands

The images are purely indicative
