CLIMMA COMPACT 10 CO

CLIMMA COMPACT 10
search
  • CLIMMA COMPACT 10
CLIMMA
MCN10K3BCOU
New product

Phase type: Single-phase
Voltage: 115 / 230 V
Frequency: 50 / 60 Hz
Cold capacity: 10000 BTU/h
Duct size: 125 mm
Maximum air flow: 530 m³/h
Length: 523 mm
Width: 330 mm
Height: 340 mm
Weight: 35 Kg

Technical features
Phase
Single phase
Frequency (Hz)
50 / 60
Voltage (V)
115 / 230
Maximum flow (m³/h)
530
Refrigerating yield
10000 BTU/h
Length (mm)
523
Width (mm)
330
Height (mm)
340
Product type
Air conditioner
Coolant
R410A
Weight (Kg)
35
Details

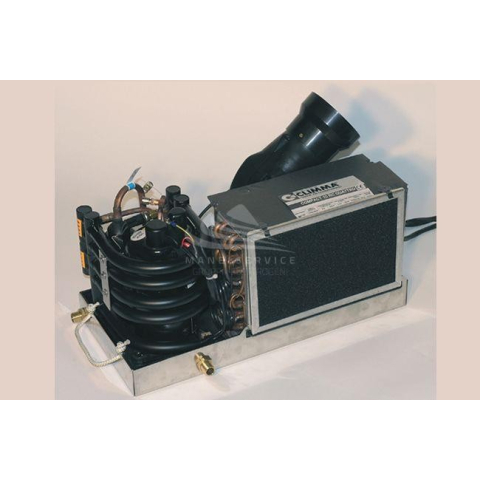

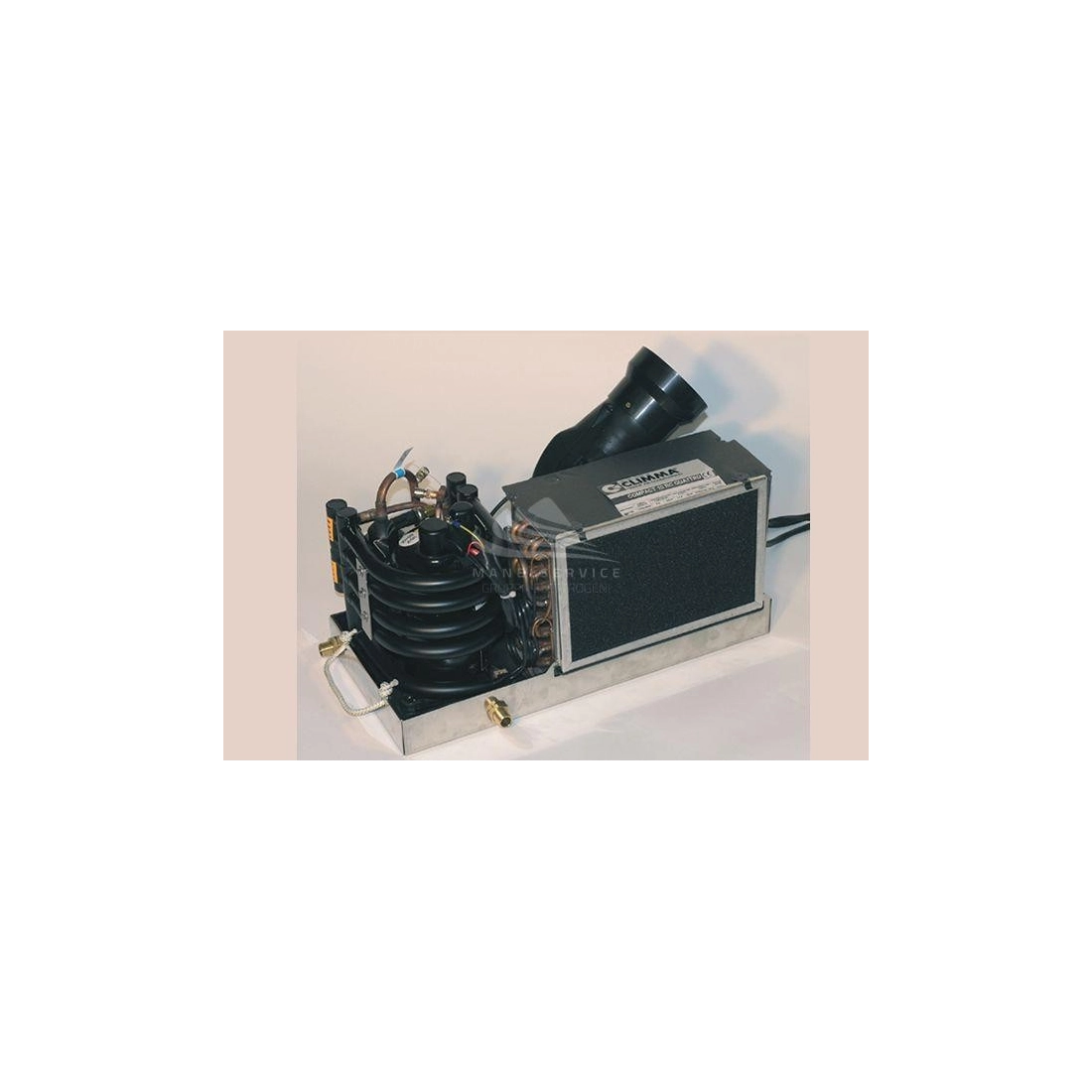

Conditioner CLIMMA Compact 10CO Cool only

Independent air conditioner Climma Compact 10CO perfect to condition a single room or contiguous environments.
The Climma Compact 10CO air conditioner is specially designed for marine applications, just as all air conditioners in the Climma Compact range are water cooled. Compact, quiet and powerful, the Climma Compact 10CO air conditioner works with environmentally friendly refrigerant and comes with the option of cycle reversal to heat the environment.
The Climma Compact 10CO air conditioner is also available in cold only or electrically heated version.
This version of the Climma Compact 10CO air conditioner is cool only.
For multiple installations with two or more air conditioners, a replay box is also available to use a single sea water pump.

Technical characteristics of the Climma Compact 10CO air conditioner:
Phase type: Single-phase
Voltage: 115 / 230 V
Frequency: 50 / 60 Hz
Cold capacity: 10000 BTU/h
Duct size: 125 mm
Maximum air flow: 530 m³/h
Length: 523 mm
Width: 330 mm
Height: 340 mm
Weight: 35 Kg

Main advantages:
- Independent air conditioning systems from 3500 to 27000 BTU/h
- Ecological refrigerant R410A for maximum efficiency and minimal consumption
- High efficiency ultra-fine gas-air cooler
- Powered and movable fan
- Pre-wired electrical box
- Threaded brass condensate drain and anti-condensation tray with Climma Dry Pan system
- High efficiency condenser

R410a
Ecological refrigerant that does not contain toxic chemicals that damage the ozone layer.

More efficient cooling system due to better heat exchange and less pressure drop.
If you are looking for another air conditioner like the Climma Compact 10CO then you can browse our catalogue reserved for marine air conditioners.


Images and technical data are not binding.

Technical Sheet / Manuals
Price
12.200,00 € tax incl.
10.000,00 € tax excl.
