      Tipo di propulsione: Elettrico
      Sistema di guida: Accompagnamento
      Portata: 1200 Kg
      Quantità ruote posteriori: 2
      Quantità ruote anteriori: 1 motrice + 1
      Altezza montante chiuso: 1787 mm
      Altezza di sollevamento: 2410 mm
      Lunghezza totale: 1760 mm
      Larghezza totale: 800 mm
      Larghezza forche: 150 mm
      Lunghezza forche: 1150 mm
      Larghezza tra le forche: 560 mm
      Corridoio di stivaggio: 2210 mm
      Raggio di volta: 1430 mm
      Velocità di traslazione con carico: 4.7 Km/h
      Velocità di traslazione senza carico: 5.2 Km/h
      Potenza motore di trazione: 0.7 KW

      Prezzo di listino
      8.584,41 € iva incl.
      7.036,40 € iva escl.
      Prezzo scontato
      8.584,41 € iva incl.
      7.036,40 € iva escl.
      160,00 € costo spedizione in Italia.
      Calcola i costi di spedizione internazionale
      Richiedi preventivo
      Product: PRAMAC LIFTER CARRELLO ELEVATORE ELETTRICO GX12/25 EVO LI-ION

      DATI ANGRAFICI


      Richiedi Informazioni

      Hai bisogno di informazioni?

      Compila il form qui sotto in modo da poterti fornire assistenza nel miglior modo possibile.

      Product: PRAMAC LIFTER CARRELLO ELEVATORE ELETTRICO GX12/25 EVO LI-ION

      Autorizzo il trattamento dei dati ai sensi del D.Lgs. 196/2003. Dichiaro di aver letto la Privacy Policy*

      Offerta su carta intestata

      Richiedi un'offerta personalizzata.

      Scrivici i tuoi dati e ricevi la tua offerta personalizzata.

      Product: PRAMAC LIFTER CARRELLO ELEVATORE ELETTRICO GX12/25 EVO LI-ION
      LIFTER
      PRAMAC LIFTER GX12/25

      Scheda tecnica

      Tipo di propulsione
      Elettrico
      Sistema di guida
      Accompagnamento
      Portata (Kg)
      1200
      Baricentro (mm)
      600
      Distanza asse ruote di carico da base forca (mm)
      780
      Passo (mm)
      1234
      Massa in servizio (Kg)
      570
      Carico asse posteriore, pieno carico (Kg)
      1187
      Carico asse anteriore, pieno carico (Kg)
      583
      Carico asse anteriore, senza carico (Kg)
      408
      Carico asse posteriore, senza carico (Kg)
      162
      Gommatura anteriore
      RUBBER
      Gommatura ruote stabilizzatrici
      POLY.C.
      Gommatura posteriore
      POLY.C.
      Diametro ruote anteriori (mm)
      250
      Larghezza ruote anteriori (mm)
      76
      Diametro ruote posteriori (mm)
      82
      Larghezza ruote posteriori (mm)
      70
      Diametro ruote laterali (mm)
      100
      Larghezza ruote laterali (mm)
      38
      Quantità ruote posteriori
      2
      Quantità ruote anteriori
      1 motrice + 1
      Carreggiata anteriore (mm)
      565
      Carreggiata posteriore (mm)
      410

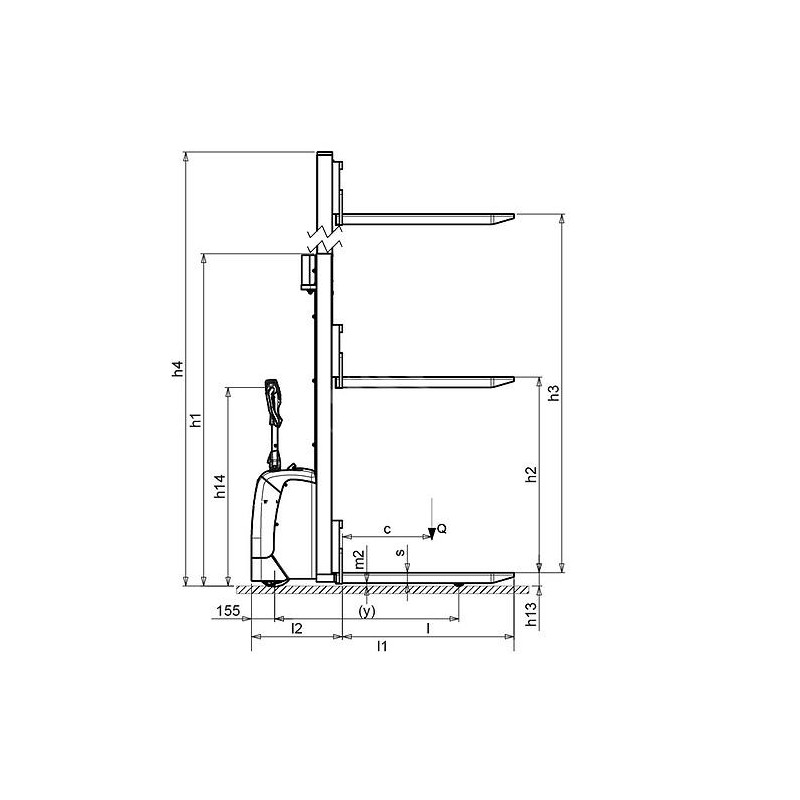

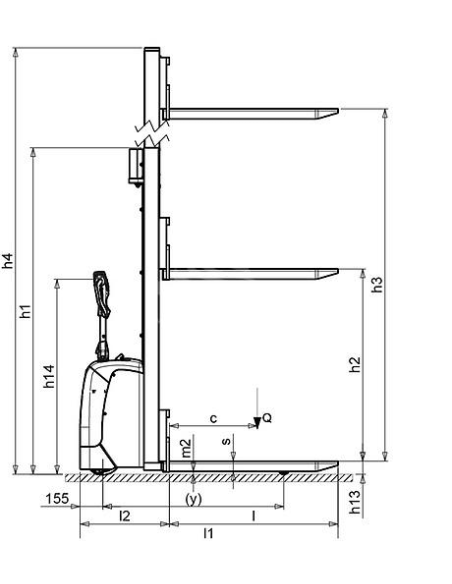

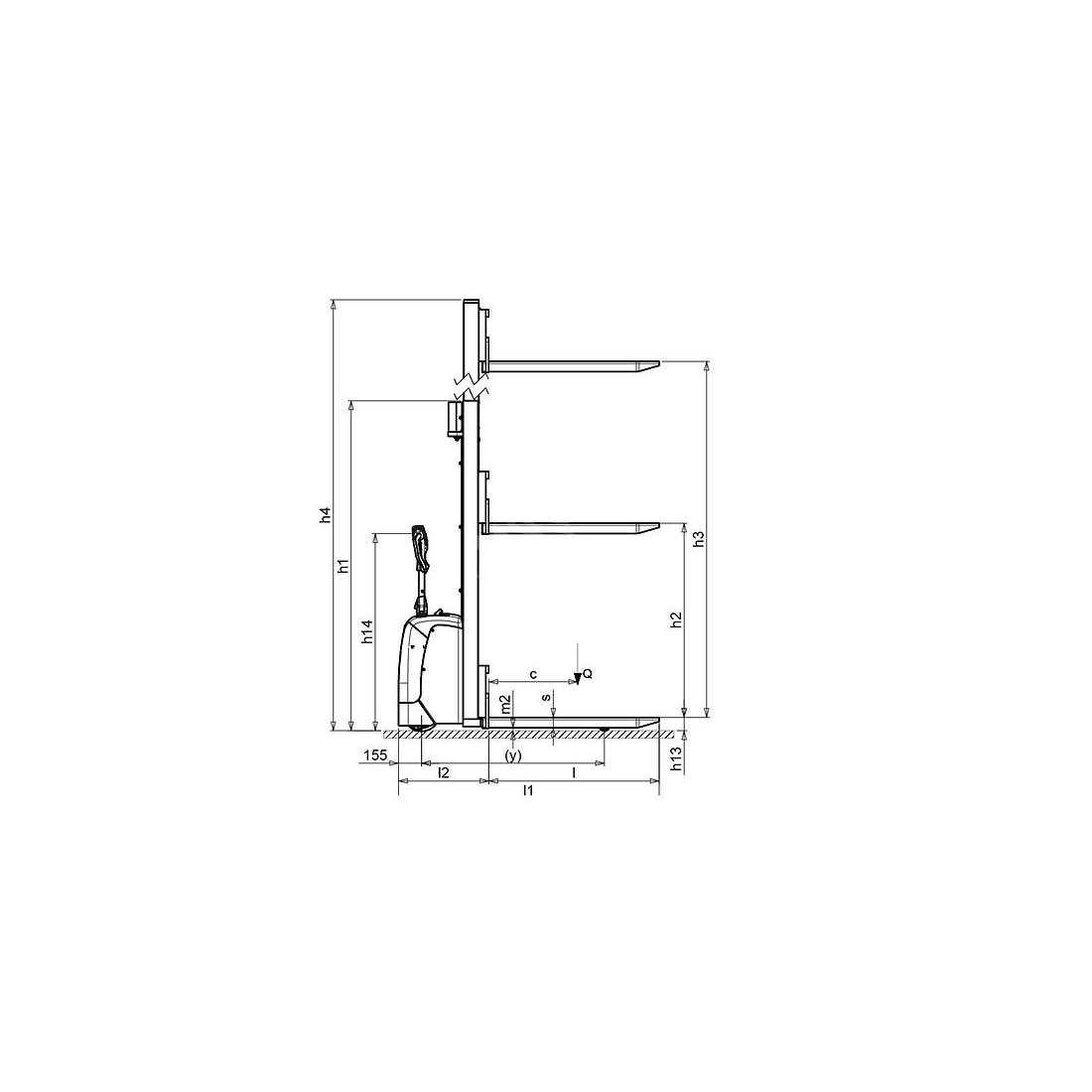

      Altezza montante chiuso (mm)
      1787
      Altezza di sollevamento (mm)
      2410
      Altezza montante sfilato (mm)
      2992
      Altezza del timone in posizione di guida max (mm)
      1330
      Altezza del timone in posizione di guida min (mm)
      960
      Altezza forche abbassate (mm)
      90
      Lunghezza totale (mm)
      1760
      Lunghezza unità motrice (mm)
      609
      Larghezza totale (mm)
      800
      Spessore forche (mm)
      70
      Larghezza forche (mm)
      150
      Lunghezza forche (mm)
      1150
      Larghezza frontale forche (mm)
      650
      Larghezza tra le forche (mm)
      560
      Luce libera a metà passo (mm)
      20

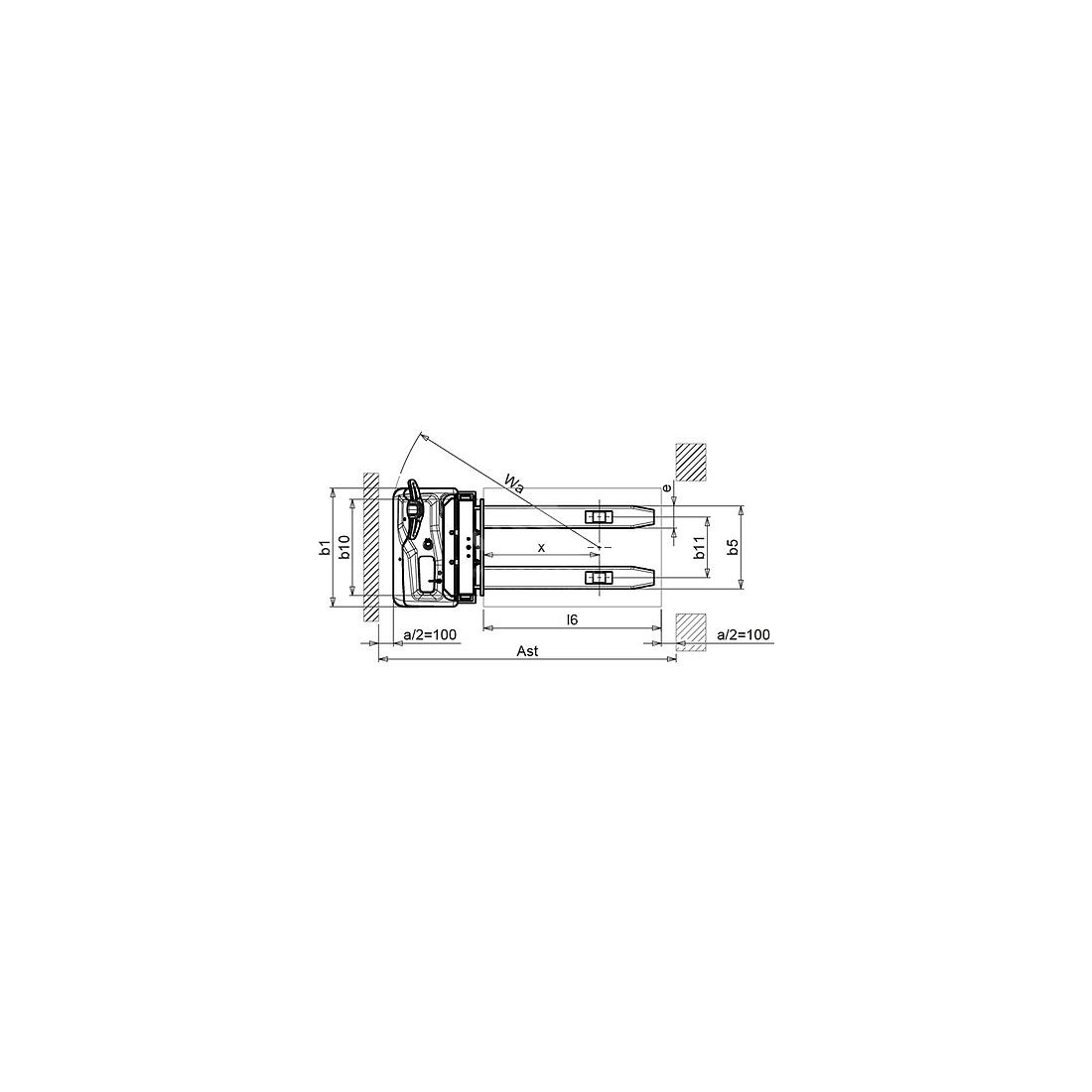

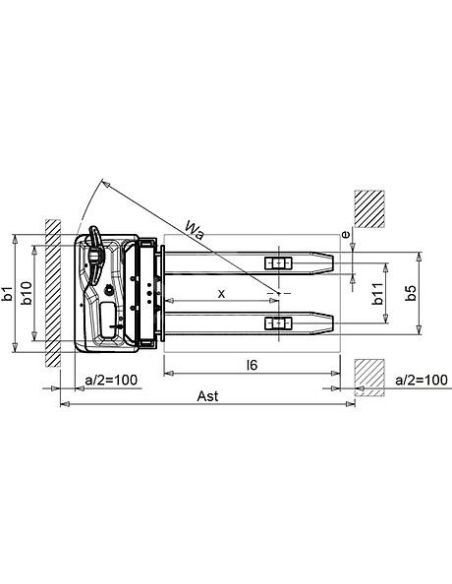

      Corridoio di stivaggio per pallet 800x1200 longitudinalmente (mm)
      2210
      Raggio di volta (mm)
      1430
      Velocità di traslazione con carico (Km/h)
      4.7
      Velocità di traslazione senza carico (Km/h)
      5.2
      Velocità di sollevamento con carico (m/s)
      0.11
      Velocità di sollevamento senza carico (m/s)
      0.19
      Velocità di discesa con carico (m/s)
      0.19
      Velocità di discesa senza carico (m/s)
      0.19
      Pendenza superabile con carico (%)
      5
      Pendenza superabile senza carico (%)
      10
      Freno di servizio
      Elettrico
      Potenza motore di trazione (KW)
      0.7
      Potenza motore di sollevamento (KW)
      2.2
      Tensione batteria (V)
      24
      Capacità nominale batteria min (Ah)
      118
      Capacità nominale batteria max (Ah)
      118
      Massa batteria min (Kg)
      34
      Massa batteria max (Kg)
      100
      Consumo di energia secondo ciclo VDI (KWh/h)
      0.9
      Rumorosità all'orecchio dell'operatore
      62
      Tipo di sollevamento
      Elettrico

      Riferimenti Specifici

      Nuovo

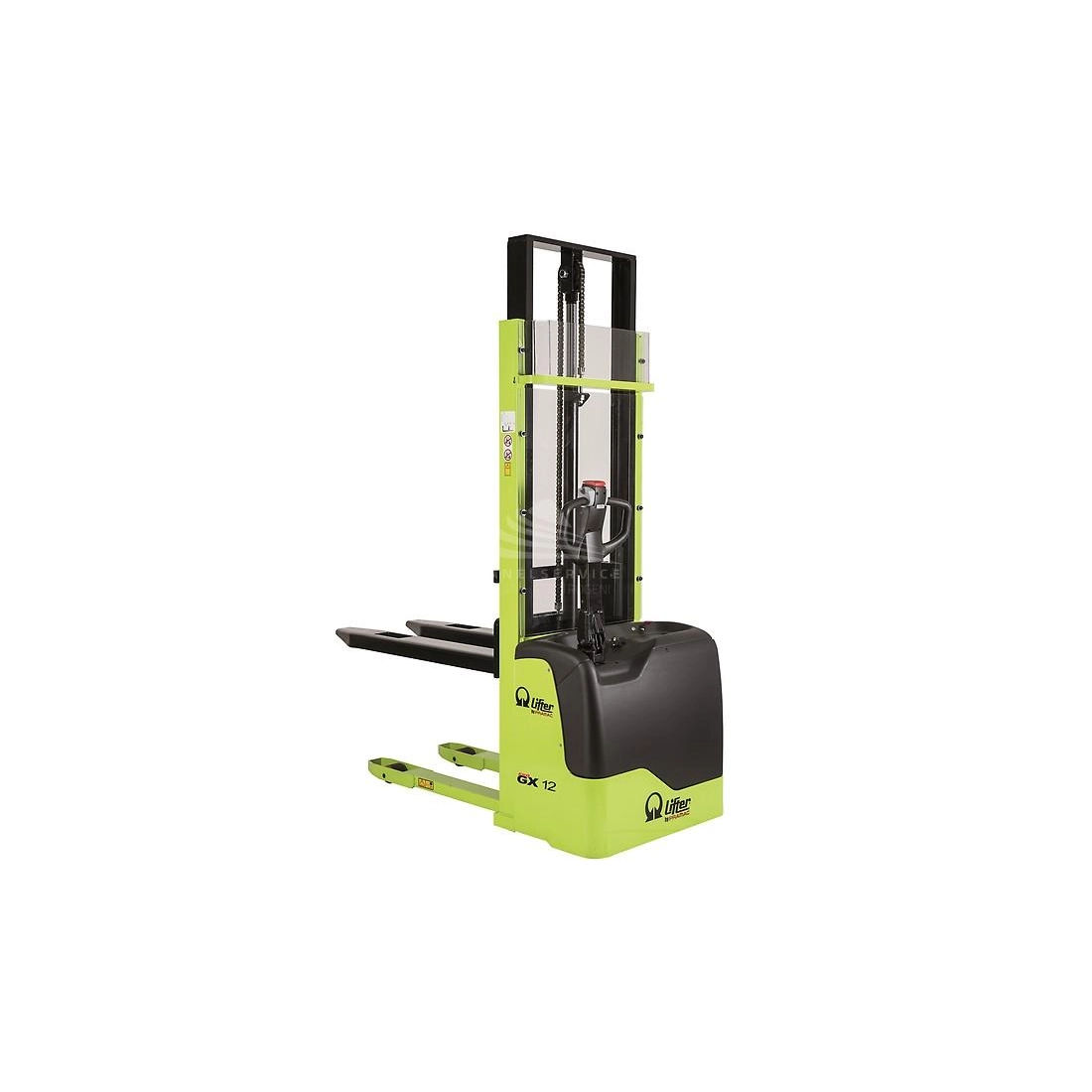

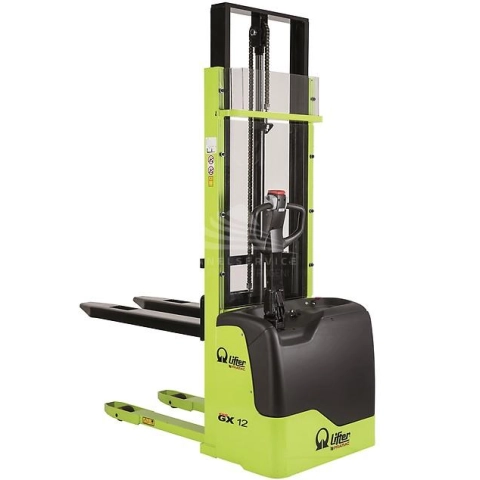

      PRAMAC LIFTER ELECTRIC FORKLIFT GX12/25 EVO LI-ION: Compact Efficiency for Tight Spaces

      The PRAMAC LIFTER ELECTRIC FORKLIFT GX12/25 EVO LI-ION sets a new standard for material handling in compact environments. Designed for pedestrian operation, this electric forklift combines a slim profile with high efficiency, making it the perfect choice for operations where space is at a premium and performance cannot be compromised.

      Drive and Performance:
      Equipped with an electric propulsion system, the PRAMAC LIFTER ELECTRIC FORKLIFT GX12/25 EVO LI-ION delivers a load capacity of 1200 Kg, catering to a wide range of lifting needs. The forklift features a duplex mast that achieves a lifting height of up to 2410 mm, ensuring versatility across various applications. With a travel speed of up to 5.2 Km/h when unladen and 4.7 Km/h when carrying a load, it ensures timely and efficient handling of materials.

      Compact and Maneuverable:

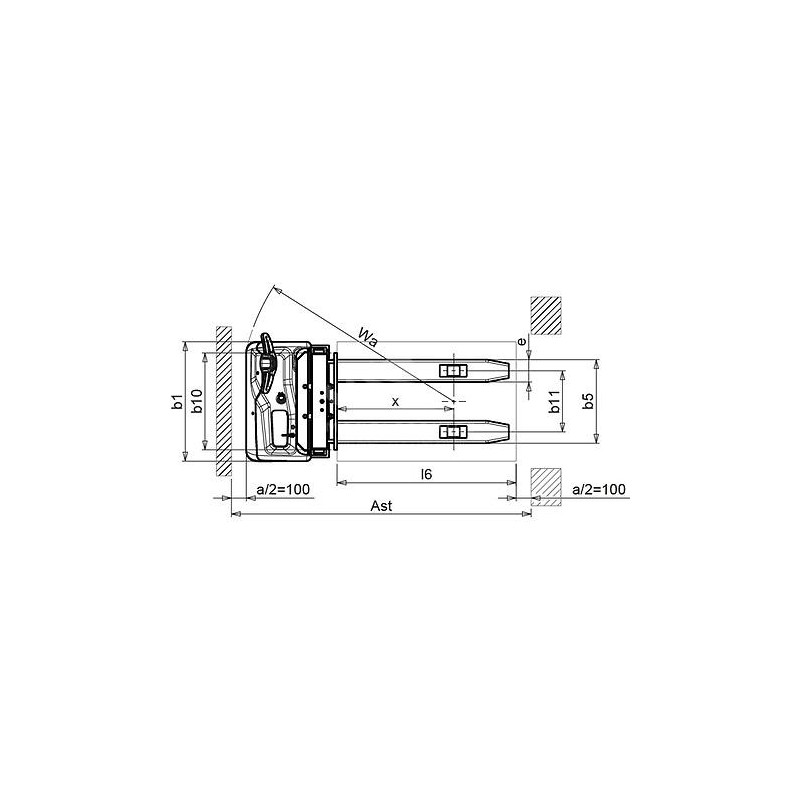

      With an overall length of 1760 mm and width of 800 mm, the PRAMAC LIFTER ELECTRIC FORKLIFT GX12/25 EVO LI-ION is designed to navigate through narrow aisles and confined spaces with ease. Its turning radius of 1430 mm and the overall width matching that of a EuroPallet enhance its maneuverability, making it an ideal solution for tight corridors and packed warehouses.

      Ergonomic Controls and Safety:

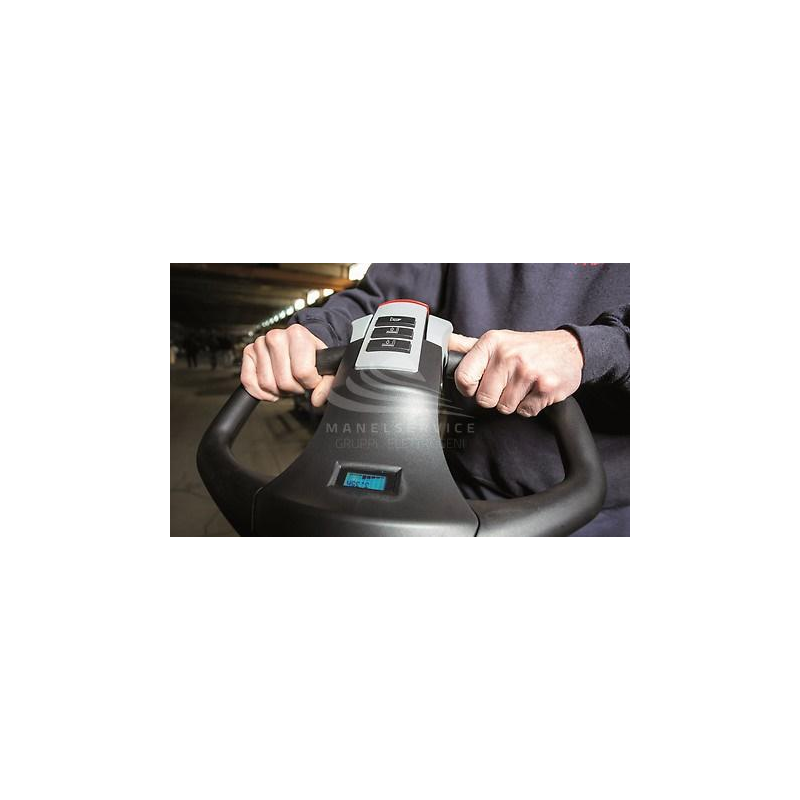

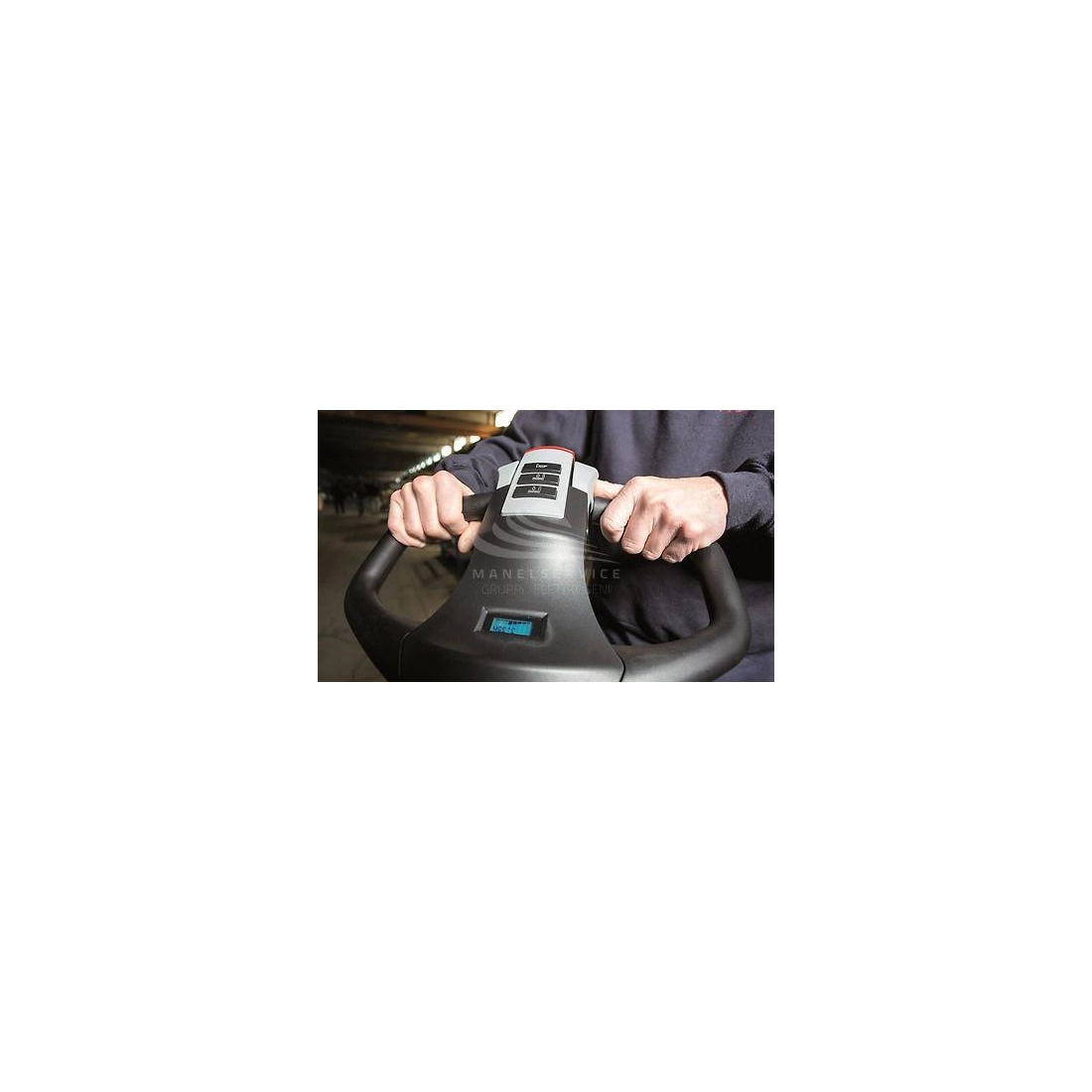

      The GX EVO Tiller features an integrated ergonomic technopolymer system, including a fingertip throttle, safety pushbutton, horn, and a turtle button for precise slow-motion control. This advanced tiller design ensures comfortable operation and reduces operator fatigue, enhancing safety and productivity.

      Advanced Battery Technology:

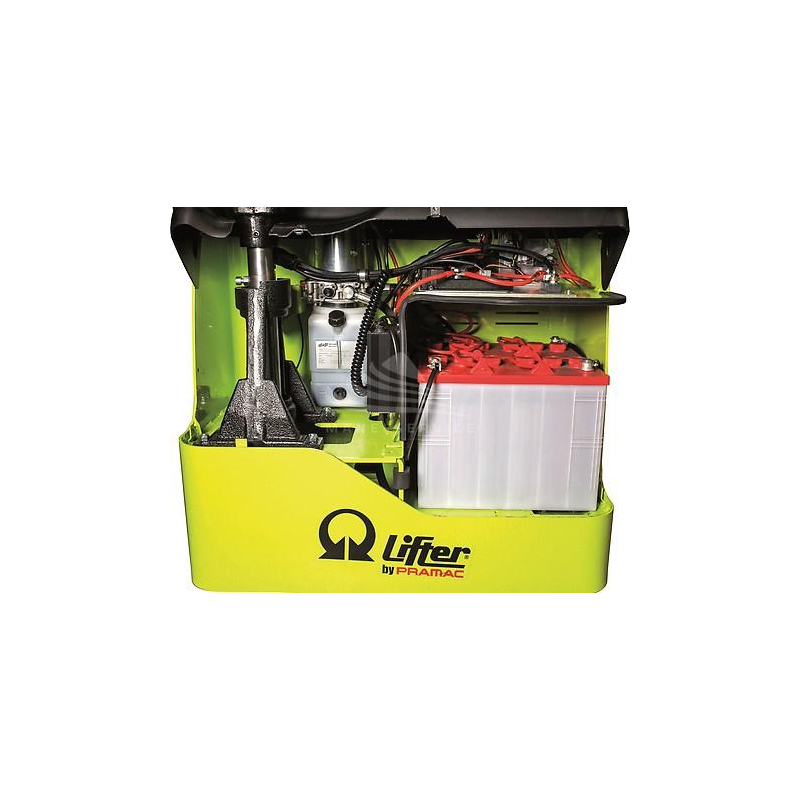

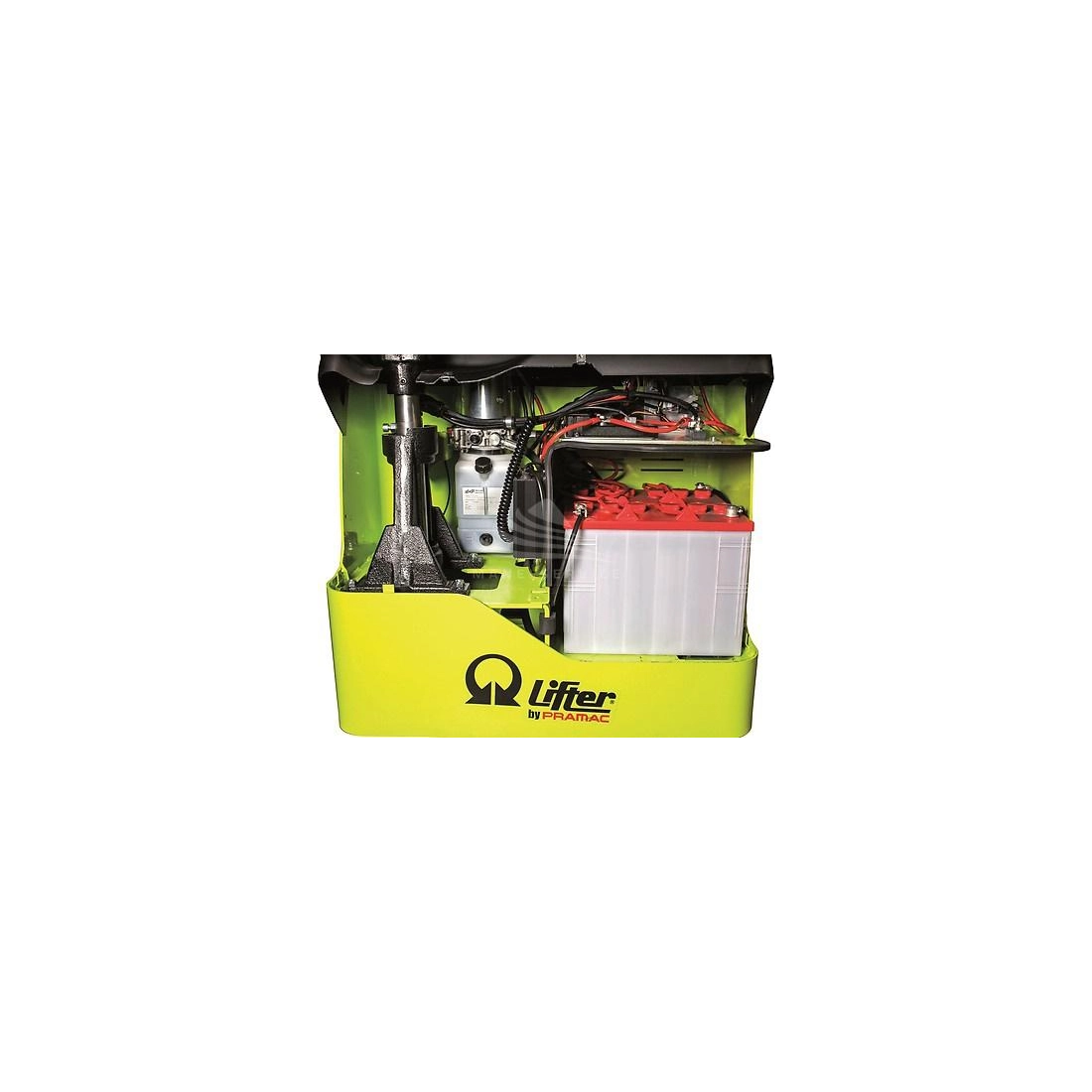

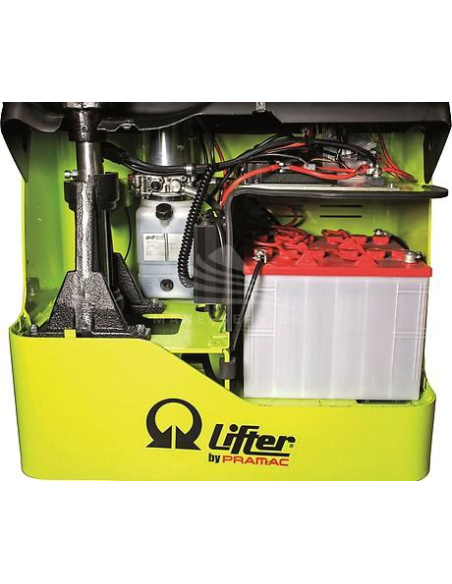

      This EVO version is powered by semi-traction batteries that offer extended autonomy and a higher number of charge-discharge cycles, providing up to 3 hours of continuous operation. The design allows for easy access to the battery compartment, facilitating maintenance and ensuring long-lasting performance. GEL batteries are also available upon request.

      Ease of Maintenance:

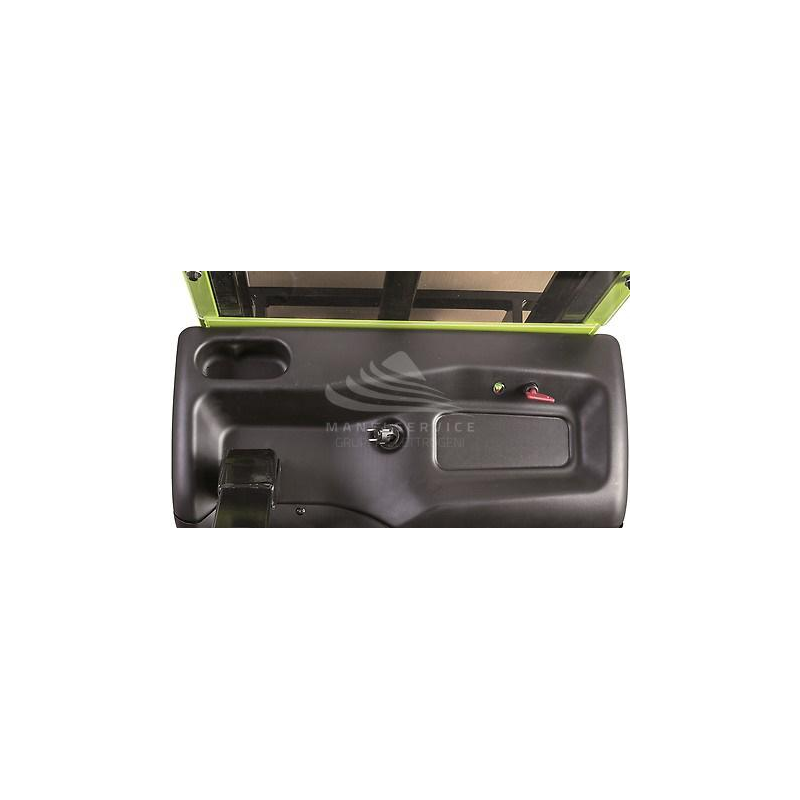

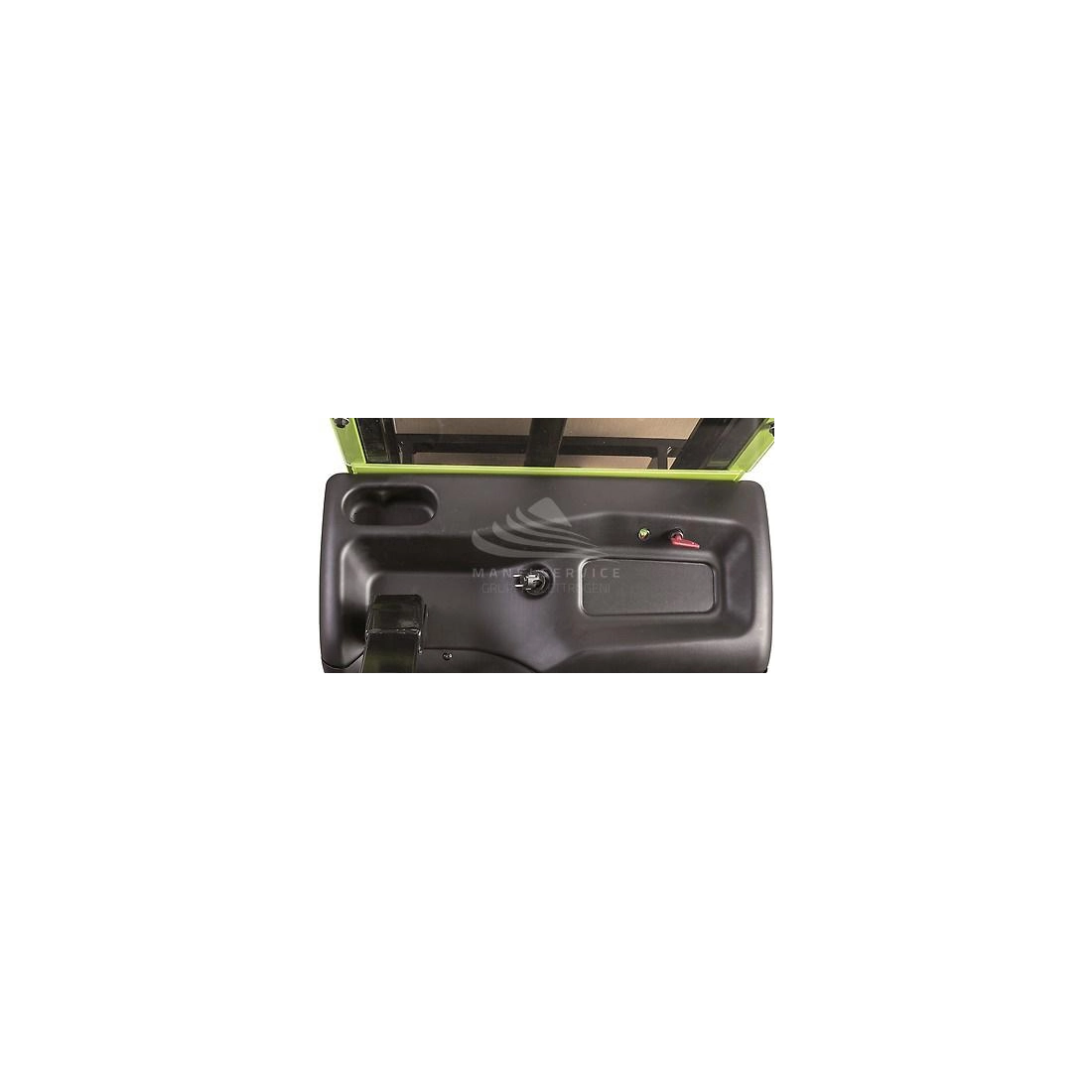

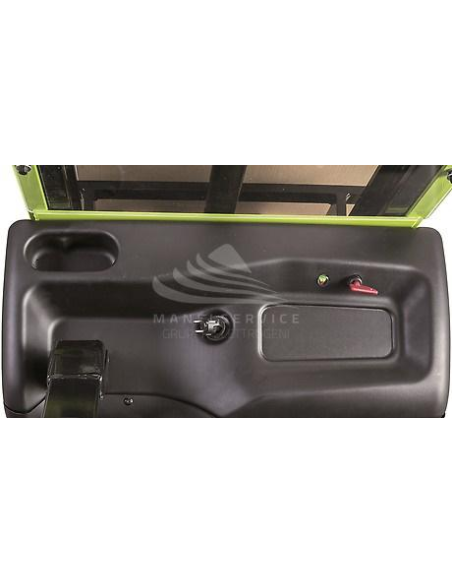

      Featuring a strong ABS cover with a top storage compartment, the PRAMAC LIFTER ELECTRIC FORKLIFT GX12/25 EVO LI-ION is designed for easy maintenance. The cover can be quickly removed to access the motor wheel, portal, and tiller for any necessary adjustments or repairs. The integrated battery charger, complete with a Schuko plug and spiral cable, simplifies the charging process, making it more convenient for the user.

      In summary, the PRAMAC LIFTER ELECTRIC FORKLIFT GX12/25 EVO LI-ION is a testament to PRAMAC's commitment to innovation and efficiency in the field of material handling. With its compact size, ergonomic design, and advanced battery technology, this electric forklift is a versatile and reliable solution for businesses looking to optimize their operations in constrained environments.
