HYUNDAI DHY9K(S)Em COD. 65500APE

HYUNDAI KIT ATS PER GENERATORI MONOFASE DHY6000 LEK, DHY6000 SE E DHY8000 SE
search
  • HYUNDAI KIT ATS PER GENERATORI MONOFASE DHY6000 LEK, DHY6000 SE E DHY8000 SE
HYUNDAI
65500APE
New product

Maximum power Single-phase: 8.8 KVA

Single-phase continuous power: 8 KVA

Fuel: Diesel

Voltage: 230 V

Frequency: 50 Hz

Motor: HY380

Starting: Electric

Consumption: 3.5 Lt/h at 100% load

Length: 1150 mm

Width: 780 mm

Height: 910 mm

Weight: 365 Kg

AVR

Technical features
Phase
Single phase
Maximum power single phase (KW)
8.8
Continuous power single phase (KW)
8
Maximum power single phase (KVA)
8.8
Continuous power single phase (KVA)
8
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230
Engine
HY380
Engine rpm (rpm)
1500
Starting system
Electric
Engine capacity (cm³)
1357
Number cylinders
3
Oil capacity (L)
10
Cooling
Liquid
Alternator
164C
Details

Single-phase 8.8 KW generator set with AVR voltage regulator.

The brushless AVR regulator is installed on the entire range of Hyundai generators. The copper coils provide optimum voltage control and are impregnated with special resins to withstand harsh, humid and hot environments.

Main features

- Galvanised and painted steel body for protection against oxidation

- Digital control and programming panel

- Emergency shutdown buttons (external and positioned on the control panel)

- AVR regulator

- IP67 single-phase socket connection

- External fuel filler port

- Large doors for easy access and maintenance

- Fuel tank integrated in the chassis (depending on model)

- Liquid drain valve

- Forklift access

- Robust lifting rings

- Liquid drain valve

- Steel inlet and outlet hoses and silicone sleeves

Instrumentation and controls

The digital control panel provides intuitive and easy access to all functions, even for inexperienced users. The control screen shows in the foreground all the values required for the unit's configuration parameters and authorises remote operation via a USB connection.

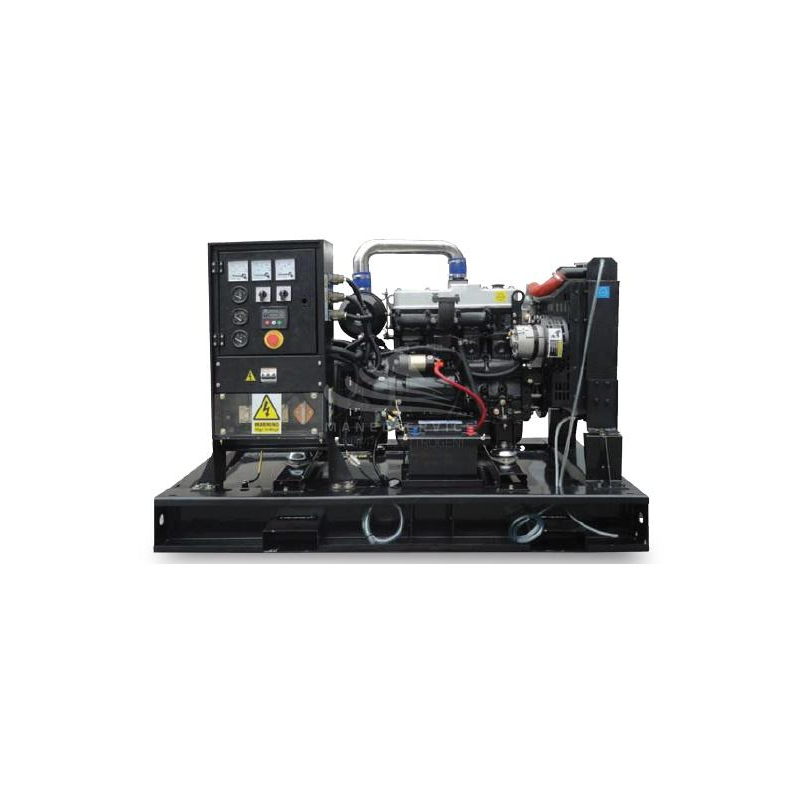

The image is purely indicative.

Technical Sheet / Manuals
Related Accessories
List price
9.529,42 € tax incl.
7.811,00 € tax excl.
Discounted Price
7.434,24 € tax incl.
6.093,64 € tax excl.
Quantity

loader
135,00 € shipped to Italy

Calculate Shipping Cost
Add to wishlist
Download PDF
Ask a question
