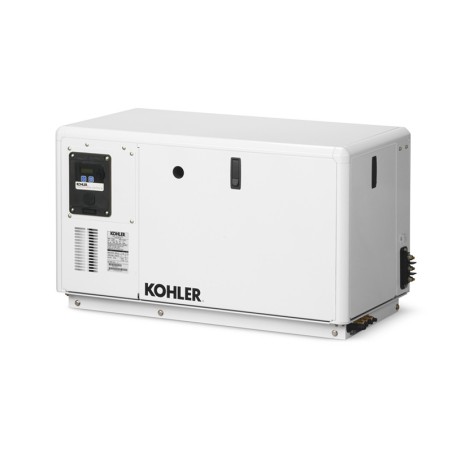

MARINE GENERATOR KOHLER 9EFKOZD Single-phase 9 kVA

Super-silenced single-phase KOHLER 9EFKOZD marine generator 9 KVA AVR

Generator Kohler 9EFKOZD singlephase 9 KVA with 1500 rpm motor. The KOHLER 9EFKOZD singlephase generator is built with a soundproof enclosure that makes it supersilenced. The KOHLER 9EFKOZD singlephase generator is built with a 4-cylinder, 4-cycle Kohler diesel-powered engine, closed cooling system with heat exchanger. The alternator of the single-phase KOHLER 9EFKOZD marine generator is brushless, with AVR voltage regulator and water-cooled. Its small and compact size makes the 9EFKOZD marine generator perfect for installation on various sized boats.

Features of the KOHLER 9EFKOZD generator

- 12-pole connector with remote start
- Class H insulation
- Multi-voltage adjustability
- 1.0% voltage regulation.
- Radio suppression

Engine features of the KOHLER 9EFKOZD generator

- Diesel
- Certified by the Environmental Protection Agency (EPA) to meet Tier III marine auxiliary standards (60 Hz model only)
- Four cylinders
- Four cycles
- Closed cooling system
- Heat exchanger
- Electric fuel lift pump
- Lifting eye
-. Low oil pressure shutdown
- High temperature engine shutdown
- Low seawater pressure shutdown
- Vibromount
- Belt guard
- Disposable oil filter
- Oil drain valve
- Glow plug circuit programmed for cold start
- Disposable fuel filter

Features of the KOHLER 9EFKOZD generator alternator

- Brushless rotating field design allows power to be obtained from stationary conductors.
- Windings are vacuum-impregnated with epoxy paint for reliability and long life.
- Rotors are dynamically balanced to minimize vibration.
- Copper windings ensure minimal heat buildup. Insulation meets NEMA standards for Class H insulation.
- Connected directly to the motor, the generator features sealed precision ball bearings with a precision machined steel sleeve in the end bracket to prevent shaft misalignment and extend bearing life.
- Mounted on a drip tray.
- Equipped with a four-conductor reconnectable stator.

Other marine generators such as the KOHLER 9EFKOZD can be found by browsing the entire catalog of marine generators.

Pictures and technical data are not binding.
