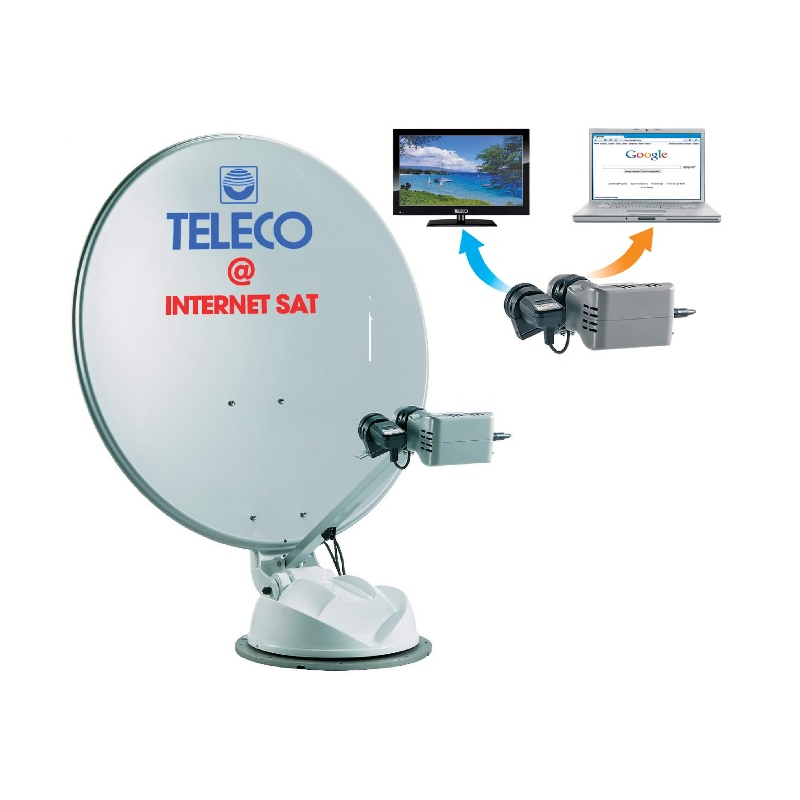

TELECO TELAIR Internet Sat 85 Automatic satellite antenna 85 cm

Brand: TELAIR

Reference: 16185

Condition: New product

OUT OF PRODUCTION

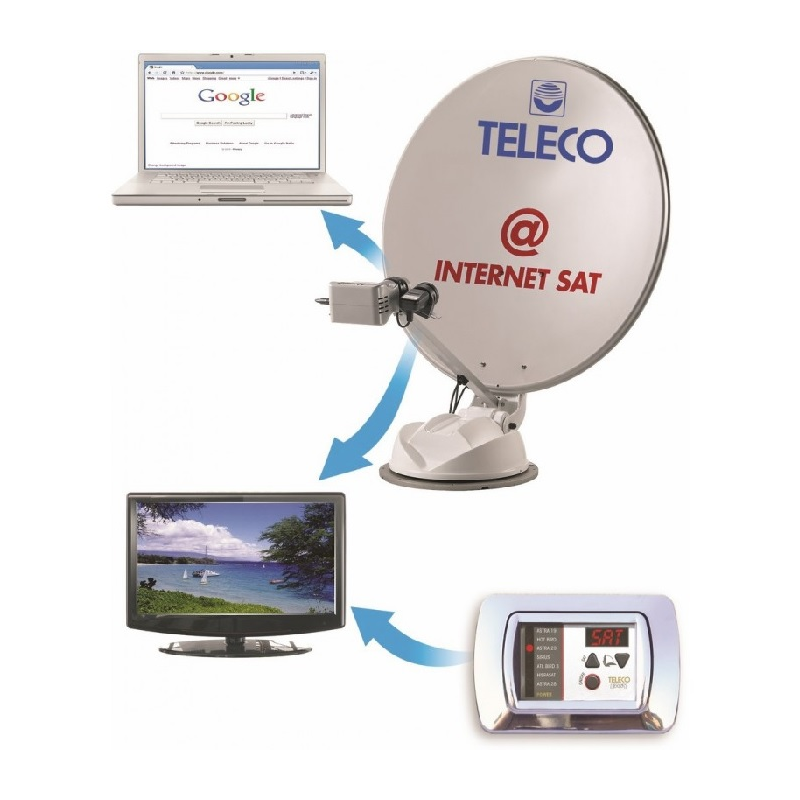

Satellite Internet antenna and TV with wall panel
Suitable for fixing on roofs of motorhomes and caravans
Automatic Antenna Orientation
FULL HD
Diameter (cm): 85
Number of satellites in memory: 10
OLED holographic display to show the operations performed by the antenna
Dimensions when closed:
Length (mm): 1090
Width (mm): 850
Height (mm): 210
Weight (Kg): 15
DVB-S2 HD Control Unit
Power supply voltage: 12 Volts (10-15 Vdc)
Max. consumption: 3.2 Amps.
Dimensions (mm): 136x198x62
Weight (Kg): 0.78
Anthracite coloured control panel with replaceable Berker line frame
Automatic closing of the antenna when starting the vehicle

Technical features

Diameter (Ø): 85 cm
Lenght closed (mm): 1100
Width closed (mm): 850
Height closed (mm): 210
Type of coupling head: Roof
Product type: Satellite and Internet Antenna
Antenna orientation: Automatic
Satellites Number: 10
Weight (Kg): 15

Details

FlatSat Easy S
Automatic HD satellite antenna with wall control panel
The FlatSat Easy is basically the same as the FlatSat Classic S. The Easy models, on the other hand, have a slightly larger dish and the LNB arm has different aesthetic finishes.

Automatic HD satellite antenna with wall control panel and 10 satellites in memory. It can be combined with any receiver or satellite TV such as: TNT SAT, FRANSAT, SKY, TivùSat, CANAL DIGITAAL, TV VLAANDEREN, CANAL SATELLITE, BIS TELEVISION, TELESAT, etc.

New intelligent panel:

By default the following satellites are stored in memory: Astra 19, Hot Bird, Astra 23, Astra 4, Eutelsat 5W, Astra 28, Thor, Hispasat, Turksat, Internet
Control with only two keys.
OLED graphic display to show all the operations performed by the antenna.
An anthracite-coloured frame completes the panel and can be easily replaced with other frames in a different colour from the Berker line.
Safety system with automatic closing of the antenna when the vehicle is started.
HUB - CIBUS
The Teleco HUB and CI-BUS interfaces are optional not included. To use these functions, the vehicle must be equipped with a Teleco HUB control unit or CI-BUS system.

FlatSat Easy S - SMART
FLATSAT CLASSIC (SMART) consists of:

1 External Satellite Antenna
1 DVB-S2 control unit complete with cables
1 Intelligent panel

Indicative images and technical data.
